From Audient

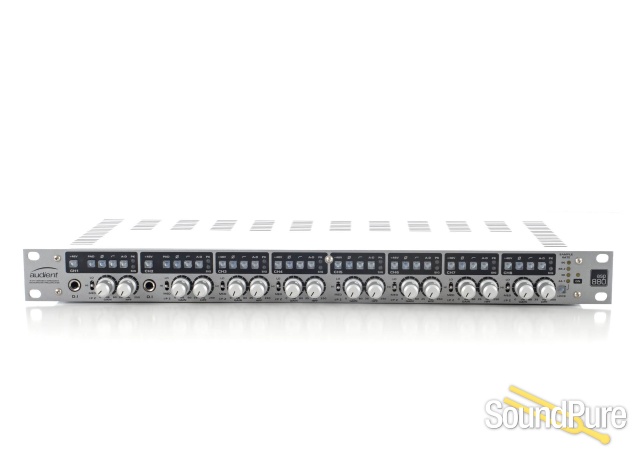

ASP880 provides eight of Audient's renowned console mic pres, pristine converter technology and a versatile feature set that includes Variable Impedance and Variable High Pass Filters. All in a 1RU rack!
Features
♦ 8 Audient Console Mic Pres
♦ All new, Burr Brown AD converter technology
♦ Variable Input Impedance
♦ Variable High Pass Filters
♦ 8 Insert points between the mic preamps and AD converters
♦ 2 Channels of Class-A Discrete JFET D.I instrument inputs
♦ Digital Outputs - ADAT, AES & S/PDIF
- MICROPHONE PREAMPLIFIERS
- (measured to insert send)
- MIC GAIN
- -10 to +60dB (-10dB Pad)
- LINE GAIN
- -16 to +44dB (-10dB Pad)*
- PHANTOM POWER
- 48v +/-4v @ 10mA/Channel
- MIC EIN
- <-127.5dBu
- CMRR
- >80dB @ 100 to 10kHz
- MAXIMUM INPUT LEVEL
- +22dBu (+32dBu with Pad)
- INPUT IMPEDANCE
- Mic LO: 220Ω Balanced Mic MED: 1k2Ω Balanced Mic HI: 2k8Ω Balanced Line (All Z): >6kΩ Balanced
- FREQUENCY RESPONSE
- +/-0.5dB 10Hz to 100kHz
- CROSSTALK
- <-85dBu @ 1kHz & 10kHz
- THD+N @ 0dBu (1kHz)
- 0.003% (-90.5dBu)
- SNR
- >90dB
- HPF
- Sweepable from 25Hz to 250 Hz, 2nd Order (12dB/Octave)
- XLR
- Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
- 1/4” JACK
- TIP (Hot), RING (Cold) & SLEEVE (Shield)
Line input level at the combi jacks will be affected by the input impedance switch position, this can be used as a second pad control to adjust line input ranges on all channels.
- DISCRETE JFET D.I (Channels 1 & 2)
- (measured to line outputs / insert send)
- D.I GAIN
- -10 to +60 dB (-10dB Pad)
- MAXIMUM INPUT LEVEL
- +16dBu (typical), +22dBu
- INPUT IMPEDANCE
- 1MegΩ Unbalanced
- FREQUENCY RESPONSE
- +/-0.5dB 10Hz to 50kHz
- THD+N @ 0dBu (1kHz)
- <0.03% (-70dBu)
- SNR
- 89dB
- 1/4” JACK
- TIP (Hot) & SLEEVE (Shield)
LINE OUTPUTS (Insert Sends)
- MAXIMUM OUTPUT LEVEL
- +27.5dBu
- OUTPUT IMPEDANCE
- <100Ω Balanced
- ADC LINE INPUTS (Insert Returns)
- (measured at optical output under AES-17)
- MAXIMUM INPUT LEVEL
- +18dBu
- DIGITAL REFERENCE LEVEL
- 0dBFS = +18dBu
- INPUT IMPEDANCE
- >10kΩ Balanced
- FREQUENCY RESPONSE
- +/-0.5dB 10Hz to Fs/2
- CROSSTALK
- <-80dBu @ 1kHz & 10kHz
- THD+N @ -1dBFS (1kHz)
- <0.002% (-94dB)
- THD+N @ -6dBFS (1kHz)
- <0.002% (-94dB)
- DYNAMIC RANGE
- 113dB un-weighted, 115dB A-weighted
- PEAK LED LINEUP
- +16dBu (-2dBFS)
- SIGNAL LED LINEUP
- Variable Brightness from -30dBu to -10dBu (-28dBFS)
DIGITAL i/o
- ADAT 8 CHANNELS SMUX
- 44.1 - 96kHz
- AES | S/PDIF 8 CHANNELS
- 44.1 - 96kHz
- CLOCK
- Internal or External
- WORLDCLOCK INPUT
- 75Ω BNC, Optional 75Ω Termination
- POWER SUPPLY
- High stability, low noise internal SMPS
Fanless, quiet operation
Works anywhere in the world without reconfiguring
- LINE VOLTAGES
- 90 to 264V (a.c)
- INTERNAL RAILS
- +/-18VDC, +48VDC & +5VDC
- FUSE
- T1A (1Amp Time Delay)
- CONSUMPTION
- Maximum 40 Watts
- WEIGHT
- 4.0kg
