$899.99
The Sub8 is a small yet powerful subwoofer designed to extend the low frequency capabilities of any nearfield monitoring system down to 30Hz.
It houses a robust 8.5″ woofer with a 1.5″ voice coil driven by a 160W ICE power amplifier. This amp combines low heat generation with high performance to handle maximum power levels, even during long mix sessions.

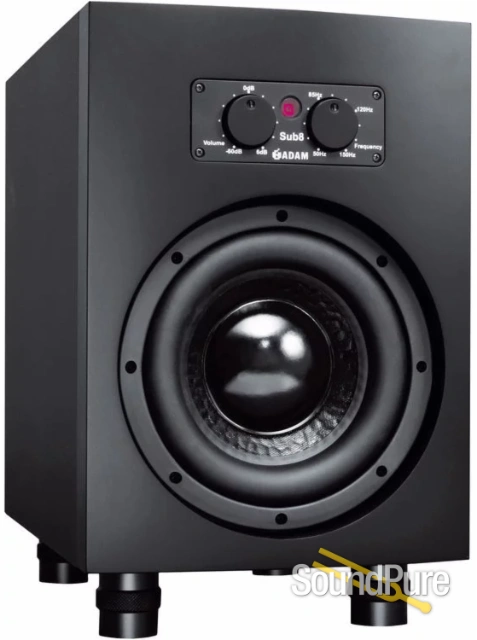

The front baffle features two motorized knobs that let you tailor input level and crossover frequency settings. These settings can also be controlled via the included wireless remote, allowing you to optimize your sound reproduction from your ideal listening position.
The Sub8 is designed for smaller rooms up to 20 square meters. It is an ideal match for the ADAM Audio AX-Series and the S2V nearfield monitors.
PRODUCT FEATURE / BENEFIT TO THE CUSTOMER
Linear bass reproduction down to 28 Hz
Ideal addition to nearfield monitors
Maximum Peak sound pressure in 1 m ≥ 110 dB
Powerful, compression-free sound reproduction even at very high sound levels
High efficiency PWM amplifier
Low-distortion amplification at both low and high volume levels
Special 8.5" woofer with paper diaphragm
Unrestricted bass reproduction for low-fatigue operation
Easy manual or automatic (de-)activation
If desired, monitoring is possible without the low frequencies
Upper cut-off frequency is selectable between 50 - 150 Hz
Allows optimal adaptation of the total system on the bass performance of the satellites
Connectable high-pass filter for the satellite outputs, which blocks signals below 85 Hz
Dolby®- Fair reproduction of film sound
Discharging the satellites from the low frequencies
Remote control (contained in the delivery contents)
Comfortable control in any situation
Analog XLR and RCA inputs
Optimized for balanced and unbalanced line signals
Compact cabinet dimensions
Flexible positioning in room for optimal sound results
2 years warranty with optional extension to 3 years with the registration of the product
Full repair service if required for 5 years
SUBWOOFER
Number 1
Basket Ø8.5" (210 mm)
Voice Coil Ø1.5" (38 mm)
Cone MaterialPaper
BUILT-IN AMPLIFIERS
Subwoofer1
TypePWM
Amp. Power RMS / Music160 W / 240 W
INPUT CONNECTORS
AnalogXLR / RCA
GENERAL DATA
Frequency Response28 Hz - 150 Hz
THD > 60 Hz≤1 %
Max. peak SPL at 1 m≥110 dB
Crossover Frequencies50 - 150 Hz
Input Impedance10 kOhm
PanelFront
Weight26.5 lb (12 kg)
Height x Width x Depth16" (410 mm) x 10" (260 mm) x 15" (380 mm)
Warranty5 years (2 years warranty plus 3 years optional with product registration) (2 years warranty plus 3 years optional with product registration)
Delivery ContentsRemote control, batteries (2 x AAA), power cord, manual
How To Calibrate your Subwoofer (The Basics) | ADAM Audio The benefits of adding a subwoofer to your system is covered in other videos. This video goes in-depth with how to calibrate your system for the most accurate monitoring possible. We use A-weighting on our SPL meters.
