From ADAM Studio Monitors

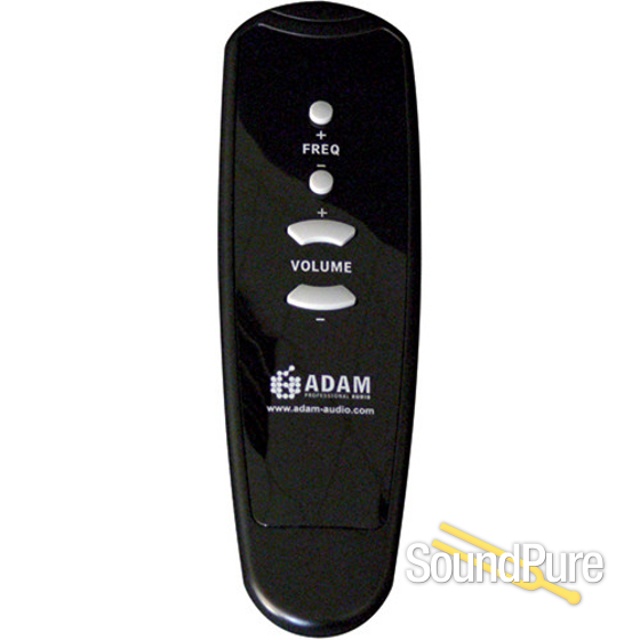

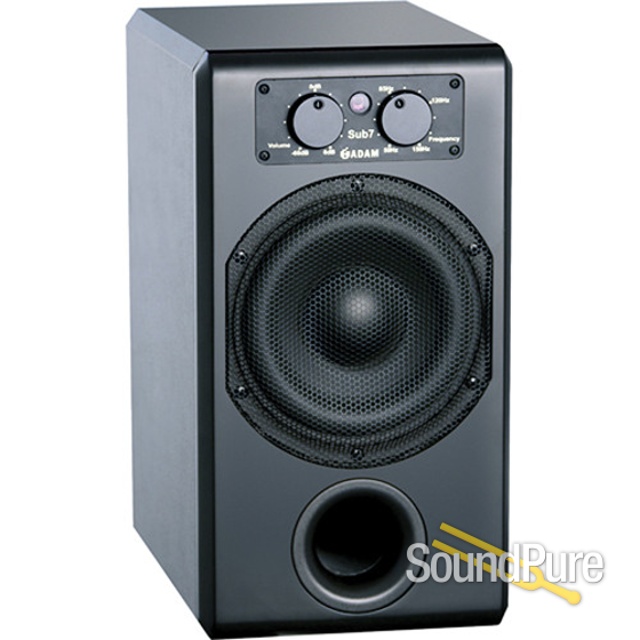

The Sub7 has been designed to complement smaller monitors such as the AX Series. Its small footprint allows for easy placement, even in small environments. The included remote control facilitates volume changes or crossover frequency adjustments from your favorite listening position.
The Sub7 is equipped with both balanced (XLR) and unbalanced (RCA) input and output connectors, allowing the Sub7 to be used in home or studio environments. Numerous control options allow for many and varied adjustments to room acoustics or the satellites used.
The low cutoff frequency of 32Hz (-3dB) enables this subwoofer to reproduce even the lowest frequencies with accuracy and realism.
- 7“ Subwoofer (paper)
- Amp. Power RMS / Music: 140 W / 210 W
- Frequency Response: 32 Hz - 150 Hz
- Max. peak SPL at 1 m: ≥107 dB
- Remote Control
SUBWOOFER
- Number 1
- Basket Ø 7" (178 mm)
- Voice Coil Ø 1.5" (38 mm)
- Cone Material Paper
BUILT-IN AMPLIFIERS
- Subwoofer 1
- Type PWM
- Amp. Power RMS / Music 140 W / 210 W
CONTROL PANEL
INPUT CONNECTORS
GENERAL DATA
- Frequency Response 32 Hz - 150 Hz
- THD > 60 Hz ≤1 %
- Max. peak SPL at 1 m ≥107 dB
- Crossover Frequencies 50 - 150 Hz
- Input Impedance 10 kOhm
- Panel Front
- Weight 17.6 lb (8 kg)
- Height x Width x Depth 14.5" (370 mm) x 8" (200 mm) x 11" (280 mm)
- Warranty 5 years (2 years warranty plus 3 years optional with product registration) (2 years warranty plus 3 years optional with product registration)
- Delivery Contents Remote control, batteries (2 x AAA), power cord, manual
