Phoenix Audio (UK) DRS-Q4M Mono Mic Pre/DI/EQ, from Phoenix

Share |
Product image + -
Phoenix Audio (UK) DRS-Q4M Mono Mic Pre/DI/EQ Phoenix Audio (UK) DRS-Q4M Mono Mic Pre/DI/EQ Phoenix Audio (UK) DRS-Q4M Mono Mic Pre/DI/EQ
(+) view full gallery
Phoenix Audio (UK) DRS-Q4M Mono Mic Pre/DI/EQ
Phoenix Audio (UK) DRS-Q4M Mono Mic Pre/DI/EQ Phoenix Audio (UK) DRS-Q4M Mono Mic Pre/DI/EQ

 Phoenix Audio's Vintage Flavored Mono Microphone Preamp with 4 band EQ and DI input.

Availability:

Contact Us for up-to-date delivery estimate

4 Similar Version(s) In Stock to choose from

Retail Price (MSRP): $1,799.00

$1,599.00 GET IT NOW !

Need a lower price?

Get instant price quote! How does this work?

Want Expert Advice?

1-888-528-9703 (toll free)

1-919-682-5552 (international)

Email us

More text

The DRS-8 microphone preamp from Phoenix Audio UK is an 8 channel Neve influenced mic pre featuring Phoenix's groundbreaking audio path. Being modeled after the famous Phoenix DRS-1 and DRS-2 mic prea...

Less text

The DRS-8 microphone preamp from Phoenix Audio UK is an 8 channel Neve influenced mic pre featuring Phoenix's groundbreaking audio path. Being modeled after the famous Phoenix DRS-1 and DRS-2 mic preamps, the DRS-8 utilizes the linear Class A output stage, giving the unit a warm and colored quality. Combine that with the latest innovation in transformerless Class A discrete mic input technology and you've got one of the best sounding guitar preamps on the market with an incredibly affordable cost-per-channel price tag. Call the experts here at Sound Pure if you have any questions regarding the Phoenix DRS-8 mic pre or any other products from Phoenix Audio UK.

More text

The Phoenix DRS8 Microphone Preamp from Phoenix Audio is an eight channel pre with discrete input technology, a linear class A output stage and loads of tonal variability. This Neve-influenced preamp,...

Less text

The Phoenix DRS8 Microphone Preamp from Phoenix Audio is an eight channel pre with discrete input technology, a linear class A output stage and loads of tonal variability. This Neve-influenced preamp, modeled after the Phoenix DRS1 and DRS2, can be clean and clear or full of color and character, depending on the results you desire. The DRS-8 from Phoenix works wonderfully on many different applications such as acoustic guitar, as demonstrated in this video, electric guitar, drums, vocals, keyboards, and much more. Watch our other videos featuring this incredibly versatile preamp. For more information visit Soundpure.com or contact an experienced engineer who can help you with your pro audio needs. 919.682.5552 or Toll Free at 888.528.9703.

Phoenix Audio DRS-8 8-Channel Mic Preamp - AES '09

More text

The highly featured Phoenix Audio DRS-8 Microphone Preamp is released at a very reasonable price-point (around $3500 USD), at the October 2009 AES Convention in New York City. This brings the identica...

Less text

The highly featured Phoenix Audio DRS-8 Microphone Preamp is released at a very reasonable price-point (around $3500 USD), at the October 2009 AES Convention in New York City. This brings the identical outstanding coloration and quality from the original signal paths of the Phoenix DSR-2 mic preamps that are now famous, due to their modern interpretation of Neve coloration/circuitry, combining color with a more modern twist. The DRS-8 from Phoenix is at an extraordinary-cost-per-channel, making it a virtually unequaled value for those looking for high-end vintage-style coloration, and a higher quantity of channels without breaking the bank. This wonderful preamp is available or purchase through Sound Pure, who is always available to answer any questions you have about the high-end recording process. Call Sound Pure toll free 888-528-9703, or e-mail them at sales(at)soundpure.com

More text

The DRS-8 developed by Phoenix Audio UK is an 8 channel, Neve influenced, preamp designed with Class A discrete technology with both the professional and home studio artists in mind. Modeled after ...

Less text

The DRS-8 developed by Phoenix Audio UK is an 8 channel, Neve influenced, preamp designed with Class A discrete technology with both the professional and home studio artists in mind. Modeled after Phoenix's other famous preamps, the DRS-1 and DRS-2, the DRS8 uses a transformer less, Class A, discrete mic input which gives you a "valve-like" sound. The Phoenix Audio DRS-8 is extremely versatile complimenting an array of instruments including acoustic guitars, electric guitar, percussion instruments, vocals, horns, and keyboards. The cost-per-channel is also unbeatable for a preamp of this quality. Please contact our experts, here at SoundPure, with any questions 919.682.5552 or 888-528-9703.

More text

The Spaghetti Western is a vintage style spring reverb box with a completely hand-wired, all tube design. Richard Flickinger discusses this spring reverb box with Ross at Sound Pure Studios. Flicki...

Less text

The Spaghetti Western is a vintage style spring reverb box with a completely hand-wired, all tube design. Richard Flickinger discusses this spring reverb box with Ross at Sound Pure Studios. Flickinger discusses in detail how the reverb unit is made, why he chose certain parts and manufacturers, as well as demonstrates many different tones can be created. Check out part two of the Spaghetti Western reverb tank. If you are interested in this incredible effects box, please call Sound Pure today for more details.

Specs:

Specifications

  • 1U half rack space unit: With 240V/110V mains voltage input selector switch
  • Class A (DSOP-2) Output specs. Frequency response: 20Hz to 20kHz +- 0.5dB,
  • Maximum Output Level: +26dBu @ 1kHz
  • Noise: -90dB @ 20Hz to 20kHz.

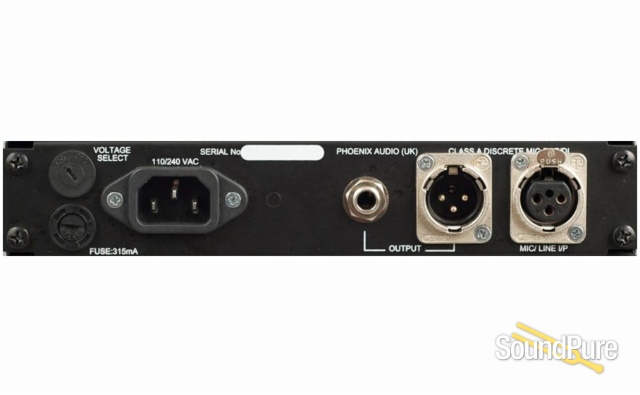

  • Output connections: XLR and TSR 1/4" Jack on rear
  • Phoenix Audio’s unique Class A, transformer-less, True balanced Mic input stage.
  • Microphone/Line input: XLR on Rear Panel
  • DI inputs: ¼” TSR Jack on Front Panel
  • Individual Earth Lift: Push-button Switches
  • Gain Range (Mic input): -30 to -70 in 5dB steps With 10dB more available on the fader.
  • Gain reduction: -30dB push-button Mic/Line switch (Mic input)
  • High Input Impedance DI: Mono 1/4" Jack on front panel (no FETs)
  • Gain Meter: LED Metering. (Green = 0dB, Yellow = +8dB, corresponding to “4” and “6” on a PPM Meter).
  • Phantom Power: Switchable phantom on Push-button Switch
  • High Pass Filter: Roll-off starts at 120Hz @ 12dB per Octave.
  • Phase Reverse: on Push-button Switch
  • Frequency Response Mic Input Stage: -0.4dB @ 40Hz, -0.3dB @ 25kHz
  • Frequency Response: DI Input Stage: -0.3dB @ 40Hz, - 0.5dB @ 25kHz
  • Typical Headroom: +24dB on Mic-Pre stage
  • Gyratory-based EQ Frequency Centres: (4 Bands) High - 15K, 10K, Hi Mid - 6K, 3K, 1K6, Low Mid – 800Hz, 400Hz, 200Hz, Low - 130Hz, 80Hz, 40Hz
  • EQ Cut/Boost Levels: 16dB Cut/Boost Per Band
  • DI Stage gain: Maximum of 20dB

Description:

The DRS-Q4M is a 4 Band Gyratory-based Eq with 11 selectable frequencies, and Mic, Line, and DI inputs. We know you will be as pleased with it’s sonic qualities as we are. The DRS-Q4M has the advantages of more than 25 years experience in audio engineering, today’s component and manufacturing technology, but still retaining “that sound” uniquely achievable through Class A design. Phoenix Audio International (UK) is dedicated to the development of Class A discrete technology used within high build-quality equipment. The DRS-Q4M uses our well proven and loved Class A output stage (DSOP-2), but also has our latest breakthrough in transformerless Class A, Discrete, truly-balanced Mic Input Technology which gives a "valve-like" sound. It also incorporates our high input impedance DI circuitry.





Action

Name

Description

Phoenix Audio DRS-Q4M Mono Mic Pre and EQ/DI PDF Manual

PDF owners manual on the Phoenix Audio DRS-Q4M

Phoenix Audio DRS-Q4 Stereo Mic Pre and EQ/DI PDF Manual

PDF owners manual for the Phoenix Audio DRS-Q4 Stereo Mic Pre DI/EQ
