Phoenix Audio DRS-Q4 mk2 Dual Mono Mic Pre/DI/EQ, from Phoenix

Share |
Product image + -
Phoenix Audio DRS-Q4 mk2 Dual Mono Mic Pre/DI/EQ Phoenix Audio DRS-Q4 mk2 Dual Mono Mic Pre/DI/EQ Phoenix Audio DRS-Q4 mk2 Dual Mono Mic Pre/DI/EQ
(+) view full gallery
Phoenix Audio DRS-Q4 mk2 Dual Mono Mic Pre/DI/EQ
Phoenix Audio DRS-Q4 mk2 Dual Mono Mic Pre/DI/EQ Phoenix Audio DRS-Q4 mk2 Dual Mono Mic Pre/DI/EQ

Stereo Class A solid state preamp with a super smooth 4 band EQ on each channel - the only thing that beats its flexibility is its tone!

Ships Quick!
Usually ships 24 - 48 hours after order processed.

Want to Try Before you Buy?

To Setup a Free Trial in your home/studio,
Call us Now: 888-528-9703 or view more.

3 similar version(s) available to choose from

More text

The DRS-8 developed by Phoenix Audio UK is an 8 channel, Neve influenced, preamp designed with Class A discrete technology with both the professional and home studio artists in mind. Modeled after ...

Less text

The DRS-8 developed by Phoenix Audio UK is an 8 channel, Neve influenced, preamp designed with Class A discrete technology with both the professional and home studio artists in mind. Modeled after Phoenix's other famous preamps, the DRS-1 and DRS-2, the DRS8 uses a transformer less, Class A, discrete mic input which gives you a "valve-like" sound. The Phoenix Audio DRS-8 is extremely versatile complimenting an array of instruments including acoustic guitars, electric guitar, percussion instruments, vocals, horns, and keyboards. The cost-per-channel is also unbeatable for a preamp of this quality. Please contact our experts, here at SoundPure, with any questions 919.682.5552 or 888-528-9703.

More text

The Phoenix DRS8 Microphone Preamp from Phoenix Audio is an eight channel pre with discrete input technology, a linear class A output stage and loads of tonal variability. This Neve-influenced preamp,...

Less text

The Phoenix DRS8 Microphone Preamp from Phoenix Audio is an eight channel pre with discrete input technology, a linear class A output stage and loads of tonal variability. This Neve-influenced preamp, modeled after the Phoenix DRS1 and DRS2, can be clean and clear or full of color and character, depending on the results you desire. The DRS-8 from Phoenix works wonderfully on many different applications such as acoustic guitar, as demonstrated in this video, electric guitar, drums, vocals, keyboards, and much more. Watch our other videos featuring this incredibly versatile preamp. For more information visit Soundpure.com or contact an experienced engineer who can help you with your pro audio needs. 919.682.5552 or Toll Free at 888.528.9703.

More text

The DRS-8 microphone preamp from Phoenix Audio UK is an 8 channel Neve influenced mic pre featuring Phoenix's groundbreaking audio path. Being modeled after the famous Phoenix DRS-1 and DRS-2 mic prea...

Less text

The DRS-8 microphone preamp from Phoenix Audio UK is an 8 channel Neve influenced mic pre featuring Phoenix's groundbreaking audio path. Being modeled after the famous Phoenix DRS-1 and DRS-2 mic preamps, the DRS-8 utilizes the linear Class A output stage, giving the unit a warm and colored quality. Combine that with the latest innovation in transformerless Class A discrete mic input technology and you've got one of the best sounding guitar preamps on the market with an incredibly affordable cost-per-channel price tag. Call the experts here at Sound Pure if you have any questions regarding the Phoenix DRS-8 mic pre or any other products from Phoenix Audio UK.

Phoenix Audio DRS-8 8-Channel Mic Preamp - AES '09

More text

The highly featured Phoenix Audio DRS-8 Microphone Preamp is released at a very reasonable price-point (around $3500 USD), at the October 2009 AES Convention in New York City. This brings the identica...

Less text

The highly featured Phoenix Audio DRS-8 Microphone Preamp is released at a very reasonable price-point (around $3500 USD), at the October 2009 AES Convention in New York City. This brings the identical outstanding coloration and quality from the original signal paths of the Phoenix DSR-2 mic preamps that are now famous, due to their modern interpretation of Neve coloration/circuitry, combining color with a more modern twist. The DRS-8 from Phoenix is at an extraordinary-cost-per-channel, making it a virtually unequaled value for those looking for high-end vintage-style coloration, and a higher quantity of channels without breaking the bank. This wonderful preamp is available or purchase through Sound Pure, who is always available to answer any questions you have about the high-end recording process. Call Sound Pure toll free 888-528-9703, or e-mail them at sales(at)soundpure.com

More text

The Schertler Jam 100 and Jam 150 acoustic amps are versatile, lightweight, portable, and affordable. They offer amazing tonal clarity, dynamic range, and can function as mini PA systems. They are per...

Less text

The Schertler Jam 100 and Jam 150 acoustic amps are versatile, lightweight, portable, and affordable. They offer amazing tonal clarity, dynamic range, and can function as mini PA systems. They are perfect for practice spaces and coffee shop gigs. Both amps are available for SoundPure's exclusive Try-Before-You-Buy program, so if you want to hear how these amps sound with your gear, shoot us an email at Acoustics@soundpure.com. If you like what you hear, you can check out all the gear used in this video at SoundPure.com, or call us anytime at 919.682.5552. Thanks for watching!

What we think:

The DRS-Q4 is one of the most powerful two channel solid state recording platforms available. Combine two channels of Phoenix's versatile Class A preamp (featuring access to both cleaner and more saturated tones) with two 4-band gyrator EQs and you get not only a preamp with near endless tonal variations, but also an excellent stereo EQ that can provide both tonal shaping while tracking and more meticulous instrument carving during mixing. Run your final mix bus through its line level inputs for a tonal effect similar to their Nicerizer Summing Mixer and let the super smooth EQ provide that final sheen and polish to transform your mix into a finished professional track.

About the Phoenix Audio Preamp:

I feel like there are so many pieces of gear out there described as a “desert island _____”, which is why I tried to stray far away from the phrase when coming up with an accurate description for the Phoenix Audio preamp. That said, there’s really no better phrase to describe it - so what the hell - IT’S THE DESERT ISLAND PREAMP!

The Phoenix Audio preamp shares some lineage with the vintage Neve 1073, but it’s far from just another clone - think of it as being more of a modern twist on that classic design. While featuring a transformerless input, the source of the Phoenix’s tone comes from its transformer balanced output stage which adds color, roundness, and additional depth when driven. After using the Phoenix on just about every studio application we could think of, there wasn’t a single case where it’s color didn’t enhance the source material in a positive way. For examples be sure to check out the 50+ videos we’ve shot using the Phoenix to get outstanding results on everything from jazzy female vocals to drums and a Rhodes keyboard to acoustic and electric guitars to country male vocals.

Additionally because of it’s dual gain control of both the input and output stage, if your recording application doesn’t require additional coloration there’s plenty of clean gain on the input to allow your output stage (color control) to be set very low, resulting in a cleaner and more pristine image of the instrument. Of course there’s a tremendous middle-ground on it’s color spectrum, which is why it’s so flexible. One final tonal option is to drive the transformerless input to the point of distortion, producing a more heavy-handed crunchy distortion that can be perfect for an effect heavy section or instrument. Again, the tonal possibilities with this preamp are gigantic.

Phoenix has gone to great lengths to ensure that all of their preamp models provide an identical sound to one another, so regardless of if you go with the 8 Channel DRS-8, the DRS-Q4M (pre with EQ) or DRS-1 (single channel pre), 2 Channel DRS-Q4 (stereo pre with EQ), or even the 500 Series DRS-1R you’ll be getting 100% of Phoenix’s unique and exciting tone. Every model comes standard with a practical feature set all great preamps should have, including a hi-pass filter and phase reverse - the DRS-8 and DRS-1R also include "Mute" buttons. It can also accept line level signals for warming up previously recorded instrument tracks or even running a stereo bus through for added analog punch and coloration.

As mentioned, the Phoenix preamp shares lineage with the venerable Neve 1073 however it’s not a clone, so if you’re specifically after that tone we would recommend the Vintech X73i or 573. If you’re looking for an incredibly flexible solid state preamp with a rich and inspiring tone at an excellent price, look no further than the Phoenix Audio preamp line.

Description:

The DRS-Q4 mk2 is a 4 Band Gyratory-based Eq with 11 selectable frequencies, and Mic, Line, and DI inputs. We know you will be as pleased with it’s sonic qualities as we are. The DRS-Q4 mk2 has the advantages of more than 25 years experience in audio engineering, today’s component and manufacturing technology, but still retaining “that sound” uniquely achievable through Class A design. Phoenix Audio is dedicated to the development of Class A discrete technology used within high build-quality equipment. The DRS-Q4 mk2 uses our well proven and loved Class A output stage (DSOP-2), but also has our latest breakthrough in transformerless Class A, Discrete, truly-balanced Mic Input Technology which gives a "valve-like" sound. It also incorporates our high input impedance DI circuitry.

Specs:

  • 1U unit: With 240V/110V mains voltage input selector switch
  • Class A (DSOP-2) Output specs. Frequency response: 20Hz to 20kHz +- 0.5dB,
  • Maximum Output Level: +26dBu @ 1kHz
  • Noise: -90dB @ 20Hz to 20kHz.

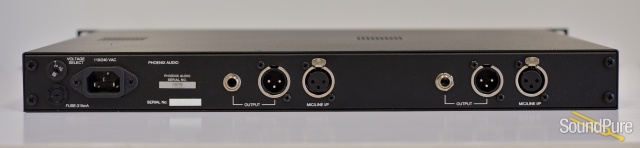

  • Output connections: XLR and TSR 1/4" Jack on rear
  • Phoenix Audio’s unique Class A, transformer-less, True balanced Mic input stage.
  • Microphone/Line input: XLR on Rear Panel
  • DI inputs: ¼” TSR Jack on Front Panel
  • Individual Earth Lift: Push-button Switches
  • Gain Range (Mic input): -30 to -70 in 5dB steps With 10dB more available on the fader.
  • Gain reduction: -30dB push-button Mic/Line switch (Mic input)
  • High Input Impedance DI: Mono 1/4" Jack on front panel (no FETs)
  • Gain Meter: LED Metering. (Green = 0dB, Yellow = +8dB, corresponding to “4” and “6” on a PPM Meter).
  • Phantom Power: Switchable phantom on Push-button Switch
  • High Pass Filter: Roll-off starts at 120Hz @ 12dB per Octave.
  • Phase Reverse: on Push-button Switch
  • Frequency Response Mic Input Stage: -0.4dB @ 40Hz, -0.3dB @ 25kHz
  • Frequency Response: DI Input Stage: -0.3dB @ 40Hz, - 0.5dB @ 25kHz
  • Typical Headroom: +24dB on Mic-Pre stage
  • Gyratory-based EQ Frequency Centres: (4 Bands) High - 15K, 10K, Hi Mid - 6K, 3K, 1K6, Low Mid – 800Hz, 400Hz, 200Hz, Low - 130Hz, 80Hz, 40Hz
  • EQ Cut/Boost Levels: 16dB Cut/Boost Per Band
  • DI Stage gain: Maximum of 20dB
