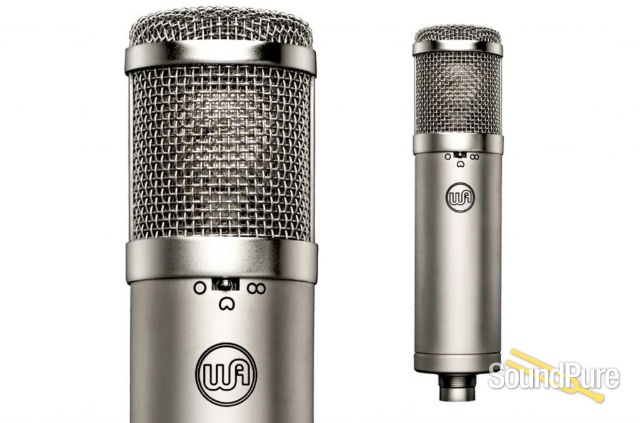

Warm Audio WA-47 JR Condenser Microphone  From Warm Audio

The WA-47 JR is fully discrete, has 3 polar patterns and is designed for pro studio, home studio, live, and broadcast applications.

Warm Audio

$299.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $26/mo.

Warm Audio WA-47 JR Condenser Microphone Quick 'n' Dirty

In this video, Sound Pure pro audio specialist Tim Oliver provides his thoughts on the Warm Audio WA-47 JR Condenser Microphone, and we hear this mic in action on acoustic guitar and male vocals.

  • Signal Chain
    • Warm Audio WA-47 JR Condenser Microphone

Manufacturer's Description from Warm Audio

The WA-47jr is a FET transformerless version of the highly renowned classic ‘47 microphone that has been used on countless hit records for the last 50+ years. The WA-47jr is fully discrete, has 3 polar patterns and is designed for pro studio, home studio, live, and broadcast applications. The WA-47jr sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources.

The WA-47jr proudly utilizes a custom k47 style capsule reproduction, designed with the same hole pattern and frequency response as the vintage design. Our version of this capsule (model# WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer with careful precision and repeat-ability that allows the most important sonic piece of the classic mic to be heard and influence the tone and signature of the WA-47jr. The WA47jr's low-noise and discrete signal path, when paired with this excellent true '47 style capsule, allows it to obtain a very similar tone to the classic ‘47 microphone, but at a much lower price tag. The WA-47jr utilizes the same k47 style capsule found in our flagship WA-47 tube condenser microphone.

The WA-47jr circuit uses high-quality Toshiba FET’s, Wima film capacitors and Panasonic electrolytic capacitors. The circuit is modernized and more simple than the classic ‘47 tube microphone, but the components and circuitry are top-notch, and have a sound quality and tone that punches far above anything we’ve ever heard in this price range.


Quality components make a better mic.

The WA-47jr proudly utilizes a custom k47 style capsule reproduction, designed with the same hole pattern and frequency response as the vintage counterpart. Our version of this capsule (model# WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer with careful precision and repeatability. The WA47jr's low-noise and discrete signal path then paired with an excellent true '47 style capsule allows this mic to obtain a very similar tone to the classic ‘47 microphone at a much lower price tag.

The Warm Audio WA-47-B-80v capsule is also used in the flagship WA-47 tube condenser microphone.

Package Includes

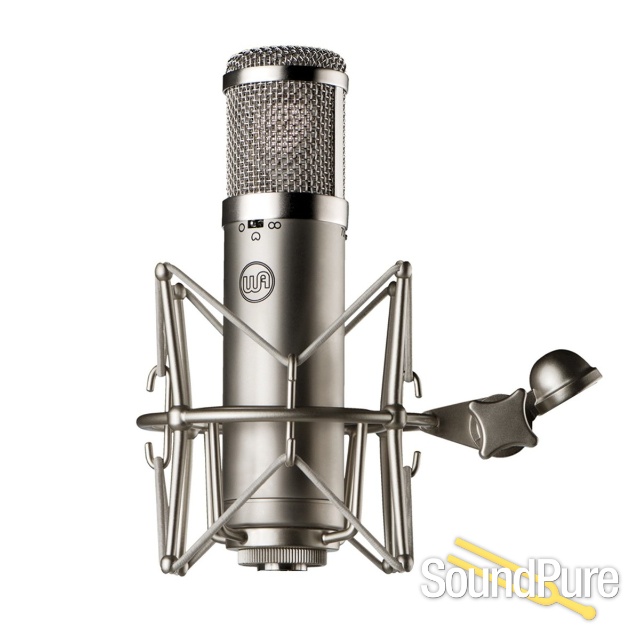

Microphone, Shockmount, Hardmount, Zipper storage pouch.

3 Polar Patterns
Cardiod, Figure-Of-Eight & Omnidirectional

High Pass Filter
A 70hz high pass filter is available for reducing rumble and other subsonic information.

-10dB Pad
A -10dB pad switch is available on the WA-47jr. The pad exists internally within the active circuitry.
Warm Audio

About Manufacturer

Warm Audio's goal is to put high-end gear in the hands of the world’s greatest artists, talent deserves to be properly expressed. Many great musicians are never heard in the right light due to budget restrictions, Warm Audio hopes to change this by bringing fully professional designs to all studios at affordable prices. Don't let our price tags fool you, all of our products have completely discrete signal paths and feature custom USA made CineMag transformers that are found in only the best designs in pro audio.

I am asked often how Warm Audio is able to produce such high quality gear at affordable prices, many assume corners must be cut somewhere.  My answer to this question continues to be "NO".  Warm Audio stays true to original discrete schematics and does this without cheapening components such as our continued use of world class Reichenbach/CineMag transformers.

Specifications


• FET transformerless '47 style condenser microphone.

• Custom true '47 capsule reproduction (k47 style) - Model# WA-47-B-80v.

• Capsule makeup: Gold sputtered, dual large diaphragm, single backplate, 6 microns NOS mylar (PET film).

• Fully discrete signal path, Toshiba FET’s, Wima film capacitors, Panasonic electrolytic capacitors.

• Polar Patterns: Cardioid, figure-of-eight, and omnidirectional.

• High-pass filter: 70Hz

• Pad: -10db

• Self-noise: 9dBA

• Dynamic range: 138dBA

• Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)

• Frequency Range: 20 Hz~20 kHz

• Sensitivity: 10mV/Pa or -40dB

• Output Impedance: 100 ohms

• Rated Load Impedance: ≥1kOhms

• Maximum output: 16dBu @1kHz, 1kOhms, 0.5% THD

• S/N Ratio: 85dBA (IEC651)

• Equivalent Noise: 9dBA (IEC651)

• Dynamic Range: 138dBA (IEC651)

• 48v phantom powered

• 3-Pin Gold-Plated XLR

• Includes: Shockmount, hardmount, zipper storage pouch

• Nickel Plated

• Weight: 1.1 lbs

• Diameter: 52mm

• Length: 210mm
