Vanguard V13 gen2 Tube Condenser Cinemag Edition  From Vanguard

Gen2 9-pattern tube condenser with Cinemag transformer upgrade and VLSM shockmount

Vanguard Audio Labs

$1,399.00

No Sales Tax in OH!
No Sales Tax in 45 States. Learn More.

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax collected in OH.

Close
Sales Tax
Sales tax is only collected in the following states: CA, FL, NC, SC, TN and VA. If your state is not listed, sales tax will not be collected on your order.
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $31/mo.

Manufacturer's Description from Vanguard

Occasionally at Vanguard, we will introduce limited-edition CUSTOM SHOP items with various upgrades. Each of these mics has been hand-modified by the Vanguard team. This is one of those, and once we're out, we're out!

These are the result of Derek stumbling upon a few Cinemag™  transformers on his R&D shelf. Cinemags are some of the best transformers in the business, with rich harmonics and that delicious je ne sais quoi that only high-quality audio transformers can provide. With humbucking rejection, low distortion, and superb bandwidth, these transformers take the already-scrumptious V13 gen2 to new levels of delicious sonic flavor.

In Derek's opinion, the Cinemag adds subtle improvements, particularly in the high end and crucial mid-range frequencies for vocals. Because of the larger transformer core designed by Cinemag, it can also handle higher SPL sources before saturation, giving the V13 more clean headroom for things like guitar amp and kick drum mic'ing.

The Vanguard V13 gen2 is a large-diaphragm multi-pattern tube condenser microphone. Crafted by experts over the course of 3 years, our design goal was to combine vintage warmth with smooth modern detail. After extensive testing and listening by world-class engineers, we can say with pride that the performance of this mic rivals or exceeds iconic vintage & modern microphones at a fraction of the cost.

The gen2 features upgrades including US-made audiophile-grade low-noise resistors, Neutrik® Group Connectors, and an upgraded power supply.

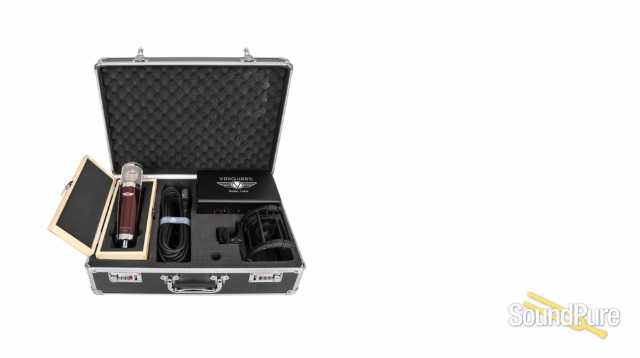

Included Accessories

  • PS-13 gen2 Power Supply
  • Padded Pinewood Microphone Box
  • VLSM Large Shockmount with aerospace-grade suspension rings
  • Locking Aluminum Carrying Case
  • 7-pin Microphone Cable
  • Power Cable

Use Cases

  • Vocals (male & female)
  • Acoustic Guitar
  • Drum overheads
  • Piano
  • Room mics
  • Kick drum (out)
  • Strings, especially cello
  • Horns
  • Electric Guitar
  • and many more…
Vanguard Audio Labs

About Manufacturer

Here at Vanguard Audio Labs, our mission is simple – make great tools to help you make great music.

To do that, we’re combining veteran design acumen with the latest manufacturing & engineering tech to bring you outstanding recording tools that will outperform rivals several times their cost – at a price that won’t break your bank account.

Specifications

Specs

  • Transducer Type: Condenser
  • Capsule Size: 1.34″ / 34mm (dual-capsule)
  • Diaphragm Size: 1.04″ / 26.4mm
  • Electronics Type: Valve/Tube, Transformer-Coupled Output
  • Output Impedance: 200Ω
  • Max SPL: 134dB (144dB with pad)
  • Frequency Response: 20Hz-20000Hz
  • Equivalent Noise Level: ≤13dB (A-weighted)
  • S/N Ratio: ≥81dB (Ref. 1Pa A-weighted)
  • Sensitivity: -35dBV
  • Output Connector: Male XLR 7-pin gold-plated
  • High-Pass/Rolloff Switch: 125Hz (6dB/octave)
  • Attenuation/Pad Switch: -10dB
  • Finish: Polished nickel trim / High-gloss Pinot Noir
  • Weight (microphone): 1.07 lbs / 0.48kg
  • Weight (in case): 11.67 lbs / 5.29kg
  • Dimensions (microphone): 8.2″ long, 2.05″ diameter / 208mm long, 52mm diameter
  • Dimensions (case): 16.73″L x 12.80″W x 5.25″H / 425mmL x 325mmW x 142mmH
  • Voltage Requirement: 110-240V



Accessories

When you buy a V13, you also get a VLSM Heavy-Duty Shockmount. We wanted to rethink the standard “spider-style” shockmount of old, and designed the VLSM with a few nifty features. First is the open front, which allows you to position the microphone as close to the source as necessary. Second, we install aerospace-grade suspension rings that won’t break, sag, crack, or stretch over time. This shockmount was designed to fit any microphone with M22x1 threading, so you also can use it with a number of microphones from other manufacturers.

The V13 also comes with the redesigned PS-13 gen2 power supply, which allows you to select any of 9 available polar patterns on your microphone. We encourage you to experiment with the different polar patterns, as each one changes the frequency response of the microphone. The PS-13 can operate from 110-240V. A 7-pin XLR Neutrik® Group cable connects the PS-13 to the V13.

When not in use, your V13 should be stored in its padded pinewood box with the included dessicant packets.

The black aluminum locking carrying case with the V13 keeps your microphone, cables, and power supply in one place, and includes a slot for a spare vacuum tube. 12AX7, 12AT7, and 12AY7 tube types will work with the V13 microphone. Folks who experiment sonically with NOS tubes can feel safe using these tube types.



Included Accessories

  • PS-13 gen2 Power Supply with Neutrik® audio connectors
  • Padded Pinewood Microphone Box
  • VLSM Large Shockmount with aerospace-grade suspension rings
  • Locking Aluminum Carrying Case
  • Heavy-Gauge 7-pin Microphone Cable with REAN® Connectors
  • Power Cable
