Universal Audio LA-610 MkII Classic Tube Channel Strip  From UA

All-Tube classic Putnam 610 Console Mic Preamp combined with an electro-optical, Tube-Amplified LA-2A Style Compressor in a Single Unit.

Universal Audio

$1,799.00

Retail:  $2,249.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Contact us for up-to-date delivery estimate.
Payments as low as $40/mo.

Want a lower price?
Call or email us!
888-528-9703
sales@soundpure.com

LA-610 MkII Classic Tube Recording Channel

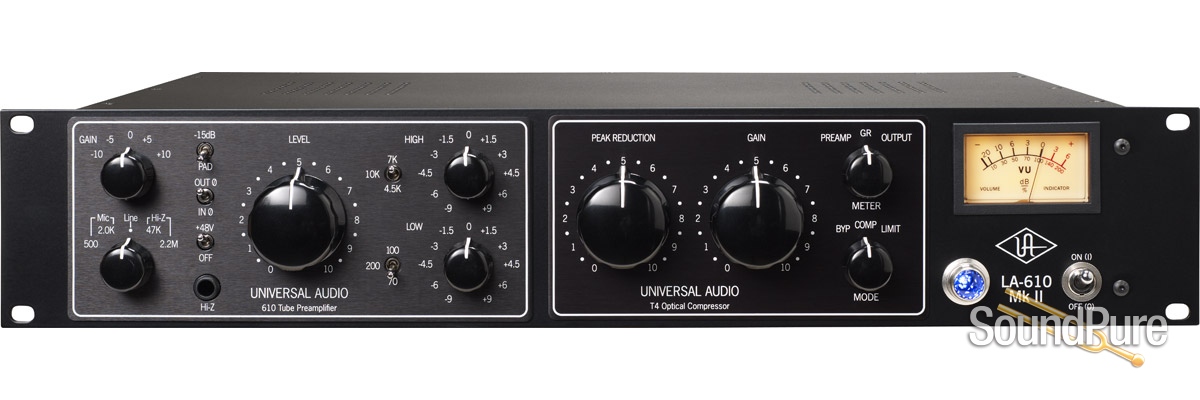

The LA-610 MkII combines an all-tube, vintage mic preamp design with authentic Teletronix T4 opto-compression circuitry. This classic channel strip design, with its warm preamp tone and smooth, natural-sounding compression, features true compressor bypass, a large easy-to-read meter, high output level, and an auto-switching power supply.

  • Signal Chain
    • Universal Audio LA-610 MkII Classic Tube Channel Strip

Manufacturer's Description from UA

A Classic Tube Microphone Preamp & LA-2A-Style Compressor in a Single Unit

The LA-610 MkII combines an all-tube, vintage mic preamp design — heard on classic albums ranging from The Beach Boys’ Pet Sounds to Van Halen I — with authentic Teletronix T4 opto-compression circuitry. This classic channel strip design, with its warm preamp tone and smooth, natural-sounding compression, is updated with modern, user-requested features like true compressor bypass, larger metering, increased output, and an auto-switching power supply.

The LA-610 MkII also boasts much lower noise specs versus vintage models. Elegant and highly popular “Black on Black” cosmetics complete the package. For the serious project studio looking to get the UA sonic experience, the LA-610 MkII offers tone, quality and character at an accessible price.

The LA-610 MkII is based on the legendary console modules developed by Bill Putnam in the 60's. Noted for their musical character and warmth, innumerous classics by artists ranging from Sinatra to Van Halen have been recorded using these preamps. After the preamp section, the LA-610 MkII offers the T4 optical compressor. The simple operation and program-dependent nature of the LA-610 T4 compressor provides the same extremely musical control that has made the LA-2A such a well-loved classic for more than 40 years. The electro-optical detector, or "T4 cell,” is the heart and soul of the Teletronix LA-2A. Its unique combination of electro-luminescent panel and photo-resistors are the crucial circuit components, giving the compressor its signature sound. In use, the LA-610 MkII packs tremendous sonic versatility and is an ideal front-end for tracking with modern DAWs.


Features:

- All-tube mic preamp design derived from legendary Bill Putnam-designed 610 modular console

- Authentic Teletronix LA-2A-style T4 opto-compressor section

- MkII exclusive features include: true compressor bypass, larger metering, increased output, and auto-switching power supply

- Mic pre with Gain and Level controls, variable impedance switching, and instrument DI for recording tone “color”

- High and Low frequency shelving EQ

- Complete vintage channel strip at groundbreaking price within project studio reach

- UA build quality and heritage, audiophile components, hand-assembled in the USA

- Backed by 1-Year limited warranty

Universal Audio

About Manufacturer

Universal Audio Inc. was re-founded in 1999 by Bill's sons, James Putnam and Bill Putnam Jr., with two main goals: to faithfully reproduce classic analog recording equipment in the tradition of their father, and to design new digital recording tools with the sound and spirit of vintage analog technology. However, as Bill Jr. recounts, the genesis of "UA, part 2" is actually a bit more serendipitous.

Having grown up in the music industry, Bill Jr. and James ("Jim") Putnam naturally assumed that the music business is where they'd eventually end up. Jim, a touring musician and recording engineer, and their older brother Scott, a studio designer in Southern California, were the first to follow in Bill Sr.'s path. However, Bill Jr. took a more circuitous direction, working for a number of engineering companies before undertaking a doctorate in Electrical Engineering at Stanford University. It was at Stanford that Bill Jr. became closely involved in the Center for Computer Research in Music and Acoustics (CCRMA), specializing in signal processing. It was also at Stanford that Bill Jr. began to assemble a team of the best and brightest minds in the field — who continue to steer many of Universal Audio's engineering efforts to this day.

However, the precise event that led Bill and Jim to start (or "reinvent") Universal Audio in 1999 was unexpected. As Bill Jr. tells it, when Bill Sr. passed away in 1989, he and Jim were faced with the Herculean task of cleaning out their dad's workshop and storage areas. While going through Bill Sr.'s old test equipment, boxes of parts, bits and pieces of consoles, and half-cannibalized 1176 compressors, Jim came across their father’s old design notebook. The two spent the evening poring over his notes, realizing that this was the map to every technical problem their father had ever solved. It was at that moment that they decided to bring back Universal Audio and its classic products.

Fast forward a decade. Now with nearly 80 employees and legions of new customers worldwide, UA is headquartered near the Silicon Valley, in Scotts Valley, California — where our classic analog gear is still hand-built, one unit at a time. The lengths we go to deliver the exact sound and performance of classic analog audio gear is unparalleled; in fact, the goal is for UA's modern units to perform identically to well-maintained units built decades ago.

Of course, analog is only half the story. At Universal Audio, we employ the world's brightest DSP engineers and digital modeling authorities to develop our award-winning UAD Powered Plug-Ins platform, featuring the most authentic analog emulation plug-ins in the industry. Our DSP gurus work with the original hardware manufacturers — using their exact schematics, golden units, and experienced ears — to give UAD plug-ins warmth and harmonics in all the right places, just like analog.

Specifications

MkII Improvements:
  • True Bypass of the Compressor Circuit
  • Larger and Better Lit Metering
  • Improved Output Signal Performance
  • Auto-Sensing Universal Power Supply
  • Improved stability with feedback-style shelving EQ
  • Improved consistency with Input Gain values
  • LED Jewel Light Never Needs Replacing
General:
  • Mic, Line and Hi-Z Input, Line Output
  • Dual Impedance Mic and Hi-Z inputs (Mic: 2K, 500Ω, Hi-Z: 2.2M, 47KΩ)
  • 5 position Stepped Preamp Input Gain, Continuous Preamp Output Level
  • -15dB Pad Switch (15dB Pad/Off)
  • Phase reverse (0/180º)
  • 48 volt Phantom Power switch (+48v/Off)
  • +/- 9 dB stepped High Shelving Filter (4.5, 7, 10 kHz)
  • +/- 9 dB stepped Low Shelving Filter (70, 100, 200 Hz)
  • T4 Optical Compressor with Continuous Peak Reduction and Makeup Gain
  • Compress/Limit/Bypass Modes of Dynamic Operation (3:1 / ∞: 1)
  • Meter Source Selector Switch (Preamp/Gain Reduction/Compressor)
  • Front Panel Power switch (On/Off)
  • Custom Altran and Cinemag Transformers

Downloads

Action

Name

Description

La-610 User Manual
