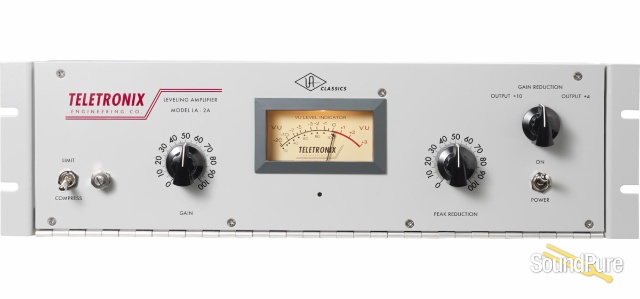

Universal Audio Teletronix LA - 2A Leveling Amplifier  From UA

A Modern Classic - built just like the original, legendary Tube-Amplified, T4 Electro-Optical Teletronix LA-2A Compressor/Limiter.

Universal Audio

$3,799.00

Retail:  $4,699.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

In Stock!
Ships immediately after order processed!
Payments as low as $86/mo.

Want a lower price?
Call or email us!
888-528-9703
sales@soundpure.com

LA-610 MkII Classic Tube Recording Channel

The LA-610 MkII combines an all-tube, vintage mic preamp design with authentic Teletronix T4 opto-compression circuitry. This classic channel strip design, with its warm preamp tone and smooth, natural-sounding compression, features true compressor bypass, a large easy-to-read meter, high output level, and an auto-switching power supply.

Manufacturer's Description from UA

 True to the Original Design, our Famed Tube-Amplified T4 Electro-Optical Classic Compressor

Audio professionals revere the LA-2A. The original was immediately acknowledged for its smooth, natural compression characteristics. A unique tube-driven electro-optical attenuator system allows instantaneous gain reduction with no increase in harmonic distortion — an accomplishment at the time, still appreciated today. This faithful Universal Audio reissue marks the rebirth of the Teletronix LA-2A. Painstaking care has been taken to ensure that every new LA-2A provides the performance characteristics of the original. Each unit is point-to-point hand-wired and built in Scotts Valley, California, with every component carefully evaluated for authenticity. As a result, today’s LA-2A will bring the same legendary compression characteristics of the original to all of your recordings.

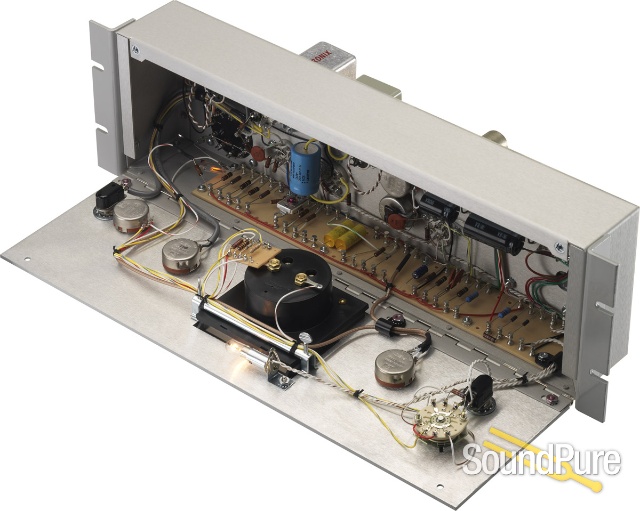

Each unit is hand-built and hand-wired in-house at UA with each component being carefully evaluated for authenticity. No expense has been spared to guarantee that this LA-2A will bring that classic sound to your recording. Demand the original. Accept no copy.


Features

- True to the original in design, manufacturing and performance
- Lag free, distortion free optical attenuator system
- Distortion less than 0.5% THD
- 0 to 40 dB gain limiting
- Balanced stereo interconnection
- Frequency response 1 dB, 30 to 15,000 cps
- Output level of 10 dBm and 40 dB gain
- Low noise – less than 70 dB below ±10 dBm output
- Hand-built in USA; backed by 1-Year limited warranty

Universal Audio

About Manufacturer

Universal Audio Inc. was re-founded in 1999 by Bill's sons, James Putnam and Bill Putnam Jr., with two main goals: to faithfully reproduce classic analog recording equipment in the tradition of their father, and to design new digital recording tools with the sound and spirit of vintage analog technology. However, as Bill Jr. recounts, the genesis of "UA, part 2" is actually a bit more serendipitous.

Having grown up in the music industry, Bill Jr. and James ("Jim") Putnam naturally assumed that the music business is where they'd eventually end up. Jim, a touring musician and recording engineer, and their older brother Scott, a studio designer in Southern California, were the first to follow in Bill Sr.'s path. However, Bill Jr. took a more circuitous direction, working for a number of engineering companies before undertaking a doctorate in Electrical Engineering at Stanford University. It was at Stanford that Bill Jr. became closely involved in the Center for Computer Research in Music and Acoustics (CCRMA), specializing in signal processing. It was also at Stanford that Bill Jr. began to assemble a team of the best and brightest minds in the field — who continue to steer many of Universal Audio's engineering efforts to this day.

However, the precise event that led Bill and Jim to start (or "reinvent") Universal Audio in 1999 was unexpected. As Bill Jr. tells it, when Bill Sr. passed away in 1989, he and Jim were faced with the Herculean task of cleaning out their dad's workshop and storage areas. While going through Bill Sr.'s old test equipment, boxes of parts, bits and pieces of consoles, and half-cannibalized 1176 compressors, Jim came across their father’s old design notebook. The two spent the evening poring over his notes, realizing that this was the map to every technical problem their father had ever solved. It was at that moment that they decided to bring back Universal Audio and its classic products.

Fast forward a decade. Now with nearly 80 employees and legions of new customers worldwide, UA is headquartered near the Silicon Valley, in Scotts Valley, California — where our classic analog gear is still hand-built, one unit at a time. The lengths we go to deliver the exact sound and performance of classic analog audio gear is unparalleled; in fact, the goal is for UA's modern units to perform identically to well-maintained units built decades ago.

Of course, analog is only half the story. At Universal Audio, we employ the world's brightest DSP engineers and digital modeling authorities to develop our award-winning UAD Powered Plug-Ins platform, featuring the most authentic analog emulation plug-ins in the industry. Our DSP gurus work with the original hardware manufacturers — using their exact schematics, golden units, and experienced ears — to give UAD plug-ins warmth and harmonics in all the right places, just like analog.

Specifications

 - Input Impedance: 50, 150, 250, 600 ohms

 - Output Load Impedance: 50, 150, 250, 600 ohms

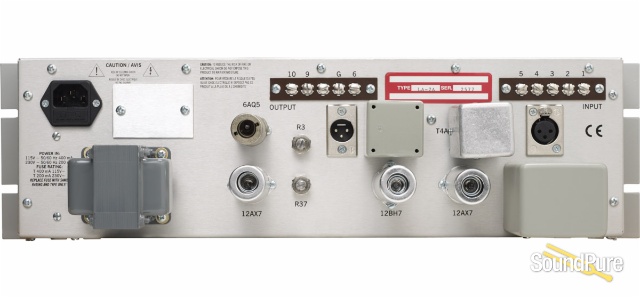

 - External Connections: Jones Barrier terminals and XLR connectors

 - Frequency Response: +0/-1 dB 30 Hz to 15kHz

 - Gain: 40 dB ±1dB

 - Input Level: +16 dB maximum

 - Output Level: +10 dB nominal, +16 dB maximum

 - Distortion: Less than 0.5% THD (0.25% typical) at ±10 dBm

 - Noise: 70 dB below +10 dBm output level

 - Attack Time: 10 milliseconds

 - Release Time: 0.06 seconds for 50% release; 0.5 to 5 seconds for complete release

 - Meter: dB gain reduction and dB output

 - Power Requirements: 35 watts, 120/240 volts, 50/60 Hz

 - Environmental Maximum operating temperature: 160°F

 - Dimensions: 19" Rackmount chassis, 3U

 - Weight: 13 lbs.

Downloads

Action

Name

Description

La-2a User Manual
