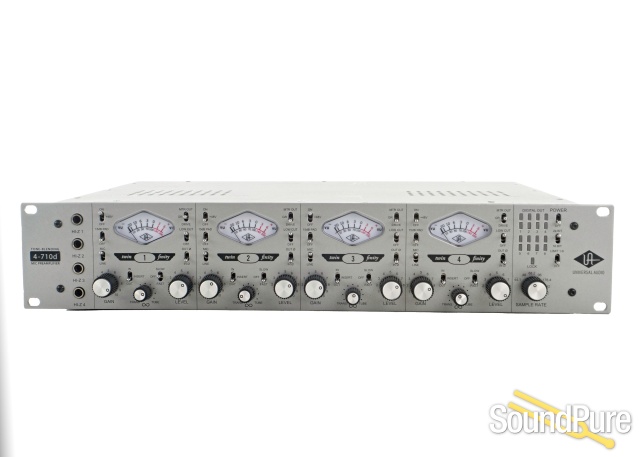

Universal Audio 4-710d Four-Channel Mic Preamp - Used  From UA

The ideal expansion preamp! The 4-710d features four of UA's tone-blending tube/solid-state preamps, each with their own "1176" style compression switch - plus 8 channels of A/D conversion!

Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

Universal Audio

"Gone, Baby, Gone"

This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.

We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.

Want to know if one lands?

Notify Me

Want to discuss what's coming?

Manufacturer's Description from UA

Four Channels of Tone-Blending “Twin-Finity” Preamps & 1176-Style Compression w/ Built-In A/D Converters.

 The Universal Audio 4-710d is a boutique quality, four-channel microphone/line preamplifier with unique tube and solid-state tone blending capabilities — perfect for a wide range of microphone and instrument sources. This versatile multi-channel preamp offers selectable 1176-style compression circuitry on each channel, plus four additional line inputs feeding eight channels of pristine analog-to-digital conversion. Building upon UA’s classic analog design approach, combined with smart modern features, the 4-710d is the most flexible preamp in the UA lineup.

 At the core of the 4-710d are four channels of tone-blending “Twin-Finity” mic preamps with true-bypass 1176-style compression, including specially tuned "fast" and "slow" settings. Each of the four mic preamp channels allows for continuously variable phase-aligned tone, between a 100% tube and 100% solid-state signal path. Send and return jacks are available for external processing or signal access.

The eight analog inputs are digitized via ultra high-quality 24-bit A/D converters at selectable sample rates up to 192 kHz. Digital output is available via dual ADAT “lightpipe” or AES/EBU DB-25 connectors, facilitating integration with most popular audio interfaces.



Key Features

  • Four TEC Award-winning 710 Twin-Finity™ microphone/line preamps

  • Dual-path 285-volt Class-A tube and transimpedance solid-state preamps

  • Phase-aligned tone-blending of tube and solid state circuits, creamy to crunchy

  • Newly designed 1176-style compression circuit per preamp channel

  • Eight channels of high quality 24-bit A/D conversion

  • Selectable sample rates up to 192 kHz

  • Digital output via dual ADAT optical and AES/EBU DB-25 connectors

  • 8-channel soft limiter (switchable for all channels)

  • 1-year Limited Warranty





Universal Audio

About Manufacturer

Universal Audio Inc. was re-founded in 1999 by Bill's sons, James Putnam and Bill Putnam Jr., with two main goals: to faithfully reproduce classic analog recording equipment in the tradition of their father, and to design new digital recording tools with the sound and spirit of vintage analog technology. However, as Bill Jr. recounts, the genesis of "UA, part 2" is actually a bit more serendipitous.

Having grown up in the music industry, Bill Jr. and James ("Jim") Putnam naturally assumed that the music business is where they'd eventually end up. Jim, a touring musician and recording engineer, and their older brother Scott, a studio designer in Southern California, were the first to follow in Bill Sr.'s path. However, Bill Jr. took a more circuitous direction, working for a number of engineering companies before undertaking a doctorate in Electrical Engineering at Stanford University. It was at Stanford that Bill Jr. became closely involved in the Center for Computer Research in Music and Acoustics (CCRMA), specializing in signal processing. It was also at Stanford that Bill Jr. began to assemble a team of the best and brightest minds in the field — who continue to steer many of Universal Audio's engineering efforts to this day.

However, the precise event that led Bill and Jim to start (or "reinvent") Universal Audio in 1999 was unexpected. As Bill Jr. tells it, when Bill Sr. passed away in 1989, he and Jim were faced with the Herculean task of cleaning out their dad's workshop and storage areas. While going through Bill Sr.'s old test equipment, boxes of parts, bits and pieces of consoles, and half-cannibalized 1176 compressors, Jim came across their father’s old design notebook. The two spent the evening poring over his notes, realizing that this was the map to every technical problem their father had ever solved. It was at that moment that they decided to bring back Universal Audio and its classic products.

Fast forward a decade. Now with nearly 80 employees and legions of new customers worldwide, UA is headquartered near the Silicon Valley, in Scotts Valley, California — where our classic analog gear is still hand-built, one unit at a time. The lengths we go to deliver the exact sound and performance of classic analog audio gear is unparalleled; in fact, the goal is for UA's modern units to perform identically to well-maintained units built decades ago.

Of course, analog is only half the story. At Universal Audio, we employ the world's brightest DSP engineers and digital modeling authorities to develop our award-winning UAD Powered Plug-Ins platform, featuring the most authentic analog emulation plug-ins in the industry. Our DSP gurus work with the original hardware manufacturers — using their exact schematics, golden units, and experienced ears — to give UAD plug-ins warmth and harmonics in all the right places, just like analog.

Specifications

Preamplifiers

  • Four TEC Award-winning 710 Twin-Finity™ microphone/line preamps, each featuring:
  • Dual-path 285-volt Class-A tube and transimpedance solid-state preamps
  • Phase-aligned tone-blending of tube and solid state circuits, creamy to crunchy
  • Newly designed 1176-style compression circuit per preamp channel
  • JFET Direct Input with 2.2MΩ ultra Hi-Z impedance w/auto input override
  • Large backlit VU meters for flexible metering of input drive, gain level, and gain reduction
  • Balanced send/return inserts (half-normalled)
  • 48V phantom power
  • 75 Hz low cut filter
  • Polarity switch
  • Monolithic balanced output stage

Analog-to-Digital Conversion

  • Eight channels of high quality 24-bit A/D conversion:
  • Selectable sample rates up to 192 kHz
  • Digital output via dual ADAT optical and AES/EBU DB-25 connectors
  • 8-channel soft limiter (switchable for all channels)
  • Ultra-low jitter clock subsystem
  • LED metering array with clip/hold indicators
  • 75Ω BNC work clock I/O
  • Digital outputs anti-pop protection on power-up

Other

  • Universal voltage internal power supply
  • Heavy-duty metal construction, two-space rack unit
  • One year warranty including parts and labor
