Undertone Audio Satellite Re-Amplification Box  From Undertone

A flexible reamping box to use with your GB Tracker, or on its own!

Undertone Audio

$295.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $25/mo.

Manufacturer's Description from Undertone

The GB Tracker & Satellite products are an integrated system that allows you to capture and re-amplify guitar and bass signals with a DAW recording setup.

The circuitry is designed to maintain absolute sonic transparency as well as unity gain at a variety of detented recording level settings.

The system, with the addition of Satellite units is expandable so you can send a DI signal to as many amps as you want. Youcan add Satellite units to feed additional amps while maintaining ground isolation between all elements of the system.

The GB Tracker/Satellite system creates a seamless and flexible workflow while recording guitar and bass so you can focus on performances when in the heat of the moment and focus on sounds at any point down the road.

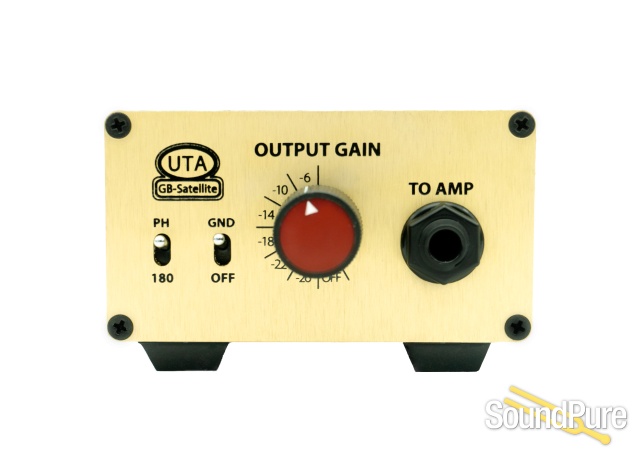

FRONT PANEL

Connect the "TO AMP" output to additional amps so you can layer the sound of multiple amps or easily A/B between them. Set the grounding switch to the "OFF" position to isolate the grounding of that amp. Use the phase switch to reverse the phase of that amp.

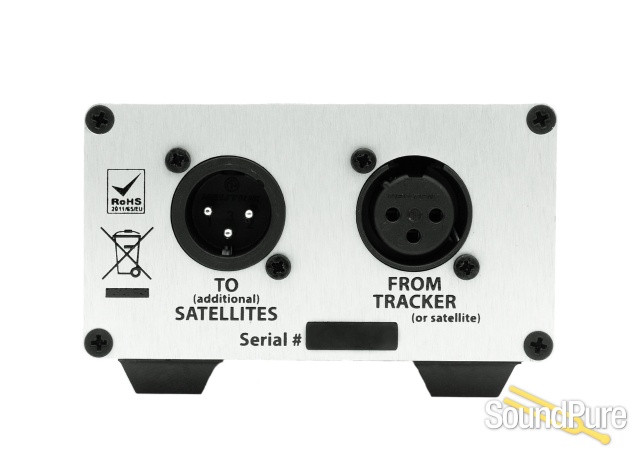

REAR PANEL

Use the "TO additional SATELLITES" output to send signal to additional satellite units. Use the "FROM TRACKER" input to recieve signal from the GB-Tracker or another Satellite.

Undertone Audio

About Manufacturer

Undertone Audio is inspired by the idea of making professional audio products with the classic sound and musicality of Class A, single ended circuitry, packaged with some exciting new features and functionality. Our flagship product is a fully featured mixing console that truly embodies this inspiration.

Specifications

INPUT VOLTAGE24V AC (200mA)

INPUT IMPEDANCE

INSTRUMENT INPUT1Mohm, 4.7Mohm, 5.7Mohm (internally selectable)

FROM DAW15Kohm

OUTPUT IMPEDANCE

TO AMP2Kohm

TO DAW47ohm

FREQUENCY RESPONSE

“INPUT” to “DAW OUTPUT“20Hz - 50KHz 0dB to -1dB

“FROM DAW” to “TO AMP”20Hz - 40KHz 0dB to -1dB

MAX LEVEL BEFORE CLIP WITH 600Ω LOAD

TO DAW+24dBm

DISTORTION

“INPUT” to “DAW OUTPUT“<0.02% THD 20Hz-20kHz @+20dBu

DIMENSIONS

SATELLITE1.93”(H) X 4”(D) X 3.55”(W)

WEIGHT

SATELLITE0.86 LBS
