Tonelux Designs OTB16 Channel Summer  From Tonelux

16 Channel Stereo Summing with Tonelux Discrete Summing Amps

Tonelux Designs


Retail:  $1,799.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $34/mo.

Tonelux OTB16 Channel Summing Mixer Demo at AES 2011

The OTB16 by Tonelux is a 16 channel 1U mixer with balanced inputs and a discrete summing bus. The summing of the OTB16 is through Tonelux's TX-240 and TX-260 discrete op-amps and is then brought through the main output transformer, which can be adjusted by the Master fader pot. This 16 channel summing mixer has a monitor output for monitoring or for expansion which is balanced and transformerless. The access to the OTB16 os through 2 eight channel Dsub inputs at a level of +4dBu nominal. For more information, please contact our experts at SoundPure Studios 919.682.5552

  • Signal Chain
    • Tonelux Designs OTB16 Channel Summer

Manufacturer's Description from Tonelux

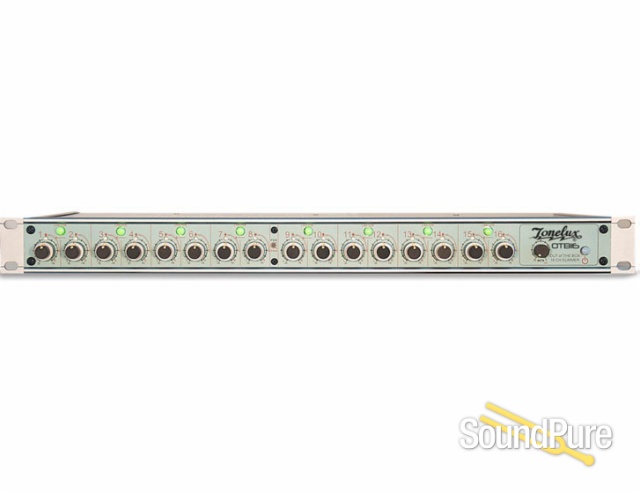

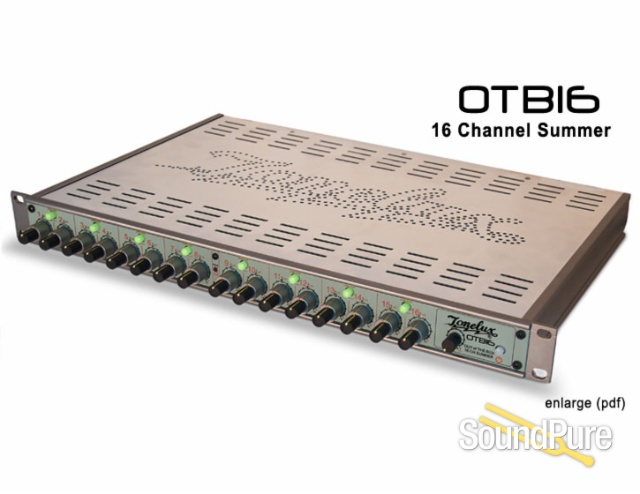

  • The OTB16 is a 16 channel 1U mixer with 16 balanced inputs and a Tonelux discrete summing bus.
  • Each channel has a level control and a panner

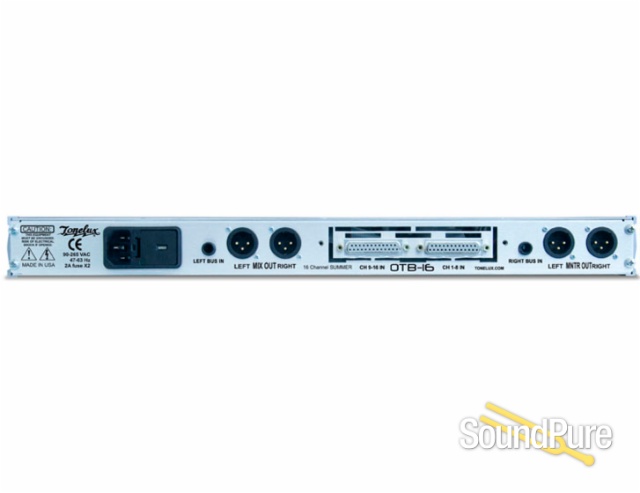

  • The access to the OTB16 is through 2 eight channel Dsub inputs at a level of +4dBu nominal.
  • The summing of the 16 channels is through the famous Tonelux TX-240 and TX-260 discrete op-amps, and then throught the
  • main output transformer, which can be adjusted by the MASTER fader pot, which comes out of a pair of XLR connectors.
  • Additionally there is a monitor output for monitoring or for expansion, which is balanced but transformerless.
  • 2 additional balanced inputs to the MIX bus. The pre fader monitor output can be plugged into the BUS input to extend the number of channels with a second or third OTB16. 120 or 230 volts AC powered 50/60 Hz.
