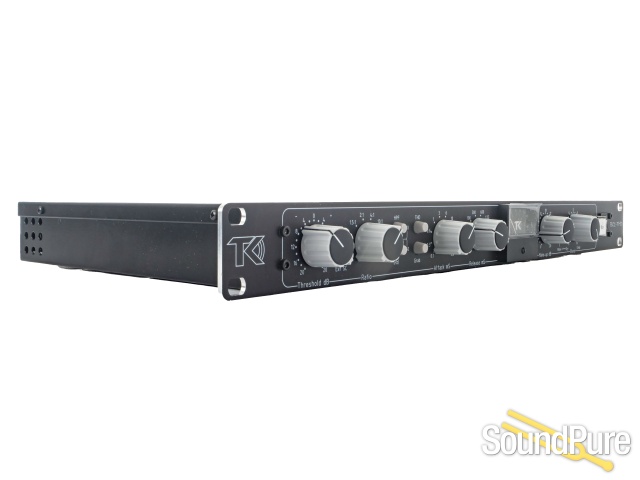

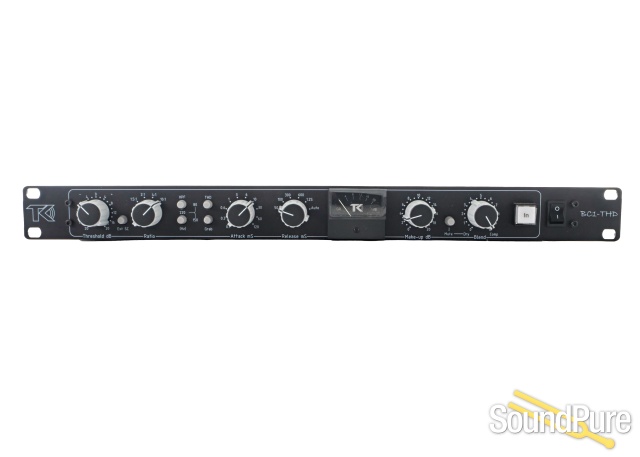

From TK Audio
Engineers call it “The Magic Glue” when the BC1-THD’s transparent compression strengthens mixes without compromising clarity.
The BC1-THD provides smooth bus compression that applies for both mixing and tracking. The built-in blend control makes it easy to apply parallel compression by adjusting the blend of dry and compressed signal. A switchable sidechain filter can be applied which makes the BC1-THD less responsive to low frequency energy. The THD function adds more harmonics to the signal and the “grab” mode selects a harder threshold knee on all four ratio settings. Smooth and transparent compression will never go out of fashion.
Features
- Threshold: -20dB to +20dB
- External sidechain: in/out
- Ratio: 1.5:1 / 2:1 / 4:1 / 10:1 /
- HP Filter: 80Hz, 150Hz, 220Hz, -6dB octave
- THD: adds more even harmonics
- Grab: selects a harder thres hold knee
- Attack: /0.1/0.3/0.6/1/3/6/10/30/60/120mS
- Release: 50mS/100mS/300mS/600mS/1.2S/Auto
- Gain reduction meter
- Make-up: 0 to +20dB
- Dry signal mute
- Blendcontrol: from dry to compressed
- Compression in/out
- External sidechain input: unbalanced TRS jacks
- Internal, regulated powersupply with a toroidal transformer
- 115 or 230V, selectable
- Frequency response
- 20Hz to 20kHz less than -0,025dB
- Frequency response
- 20Hz to 80kHz less than -0,3dB
- THD+N @ 0dBu
- less than 0,0045%
- Input impedance
- 20kohm
- Output impedance
- 50ohm
- Max input level
- +26dBu
- Max output level
- +27dBu @ 600ohms load
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
