From Thermionic Culture
Features
♦ All controls are stereo except O/P TRIM and are indented for easy recall
♦ HPF (High Pass Filter) operates at 20 & 40Hz with a 12dB/octave curve
♦ BASS BOOST and BASS CUT both have 2 selectable operating frequencies, which can be used together for a Mid Cut effect
♦ TOP SHELF is a broad Mid/Top Lift, a little like a Presence control. Also has 2 frequencies.
♦ AIR boosts the higher Top and will give an amazing clear yet warm sound, only available with out valve products
♦ ATTITUDE is our own switch that adds those special 2nd harmonics only possible with valves!
♦ OUTPUT TRIM - Separate controls to adjust finely the 2 channels, also -6dB switches

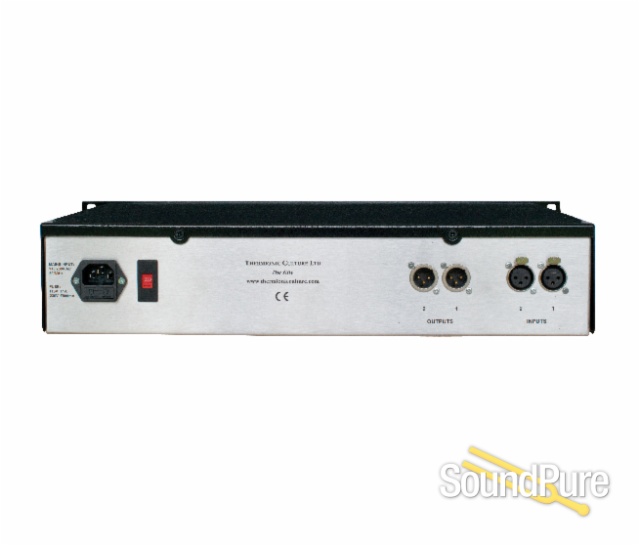

♦ XLR connectors, "semi floating" inputs and unbalanced outputs are employed
♦ A transformer balanced version is available to order, in Purple
- Input impedance
- 10kΩ
- Output impedance
- 220Ω
- Distortion (@ +4dBu)
- ≤0.015% @ Attitude 1
- MOL @ 1% Distortion
- +25dBu
- Noise
- < -80dBu
- Signal/Noise
- -105dBu
Frequency response ±1dB
- Attitude 1
- <10Hz to 56kHz
- Attitude 3
- <10Hz to 20kHz
- Attitude 6
- 15Hz to 9kHz
Crosstalk (dB)
- Channel 1
- 1kHz -72 10kHz -64
- Channel 2
- 1kHz -72 10kHz -58
Phase shift
- Interchannel
- 0.25º at 10kHz
- Input to Output
- 13 º at 10kHz
