SPL Transient Designer TD4 MkI - Used  From SPL

Overview The SPL Transient Designer 4 is a revolutionary 4-channel dynamic envelope processor that introduced SPL’s patented Differential Envelope Technology (DET) to the pro audio world. Unlike conventional compressors or expanders, the Transient Designer operates independently of signal level thresholds, allowing engineers to manipulate the transient envelope—specifically Attack and Sustain—regardless of input volume. From reshaping the punch of drum tracks to controlling room reverberation on acoustic instruments, the Transient Designer 4 provides intuitive, level-independent dynamic control with unmatched transparency.

Differential Envelope Technology (DET) Traditional dynamics processors rely on a static threshold to trigger gain reduction. The Transient Designer’s DET technology simplifies complex envelope control by tracking the dynamic curve of the audio signal itself:

• Attack Control: Allows amplification or attenuation of a signal's transient attack phase by up to ±15 dB. Increasing Attack sharpens initial transients (adding punch to snare drums, pick attack to guitars, or slap to bass), while decreasing Attack softens harsh, overly aggressive front-end transients.

• Sustain Control: Enables amplification or attenuation of a signal's decay phase by up to ±24 dB. Increasing Sustain extends room decay, shell resonance, and ring, while decreasing Sustain cleans up unwanted room bleed, dampens ringing drum shells, or shortens muddy tails without altering the natural tone.

Level-Independent Operation Because the envelope followers monitor relative signal changes rather than absolute peak levels, the Transient Designer operates seamlessly across quiet or loud passages without requiring threshold re-adjustments. Quiet ghost notes receive the exact same proportion of transient processing as heavy, high-SPL snare hits.

Stereo Linking & Signal Routing The Transient Designer 4 features four independent channels that can be linked into two stereo pairs via front-panel Link switches (Channels 1/2 and Channels 3/4). When linked, the master channel controls both left and right processing paths symmetrically, ensuring precise stereo imaging without phase shifting. Each channel features an individual hard-wire bypass switch to instantly audition processed versus uncompressed signals.

Key Features

• Patented Differential Envelope Technology: Level-independent dynamic processing that eliminates threshold, attack, and release parameter setup.

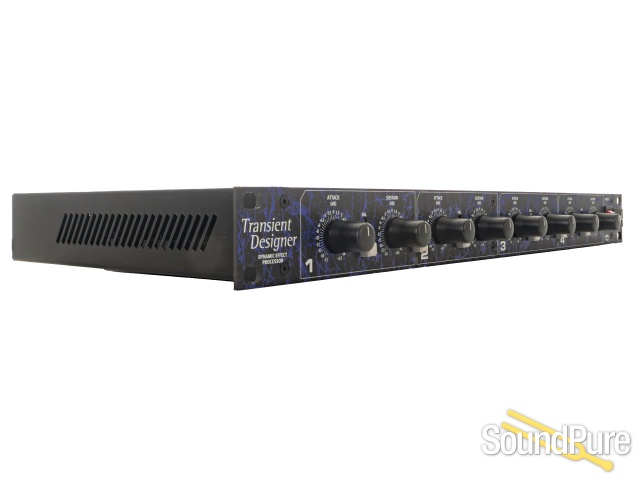

• Simple Two-Knob Per Channel Interface: Dedicated Attack (±15 dB) and Sustain (±24 dB) controls for intuitive, immediate workflow.

• 4 Independent Channels / 2 Stereo Pairs: Channels 1/2 and 3/4 can be linked for stereo bus or sub-mix operation.

• Hard-Wire Relay Bypass: True bypass per channel for accurate A/B testing and fail-safe signal pass-through.

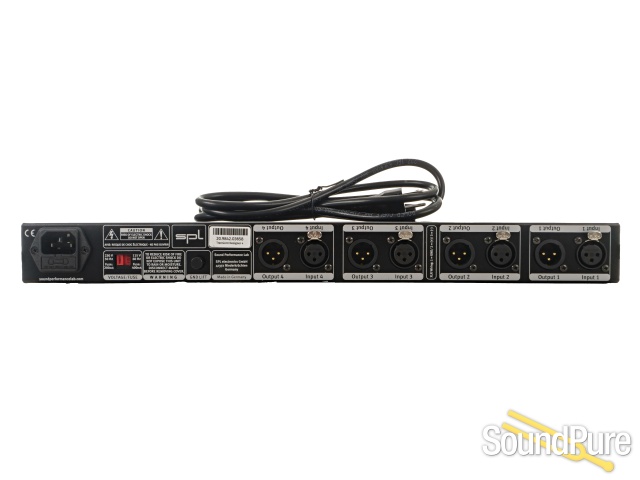

• High-Headroom Analog Architecture: Balanced XLR I/O designed for high-dynamic-range recording and mixing environments.

• Chassis: 1U 19" rackmount design (Made in Germany).
