From SPL

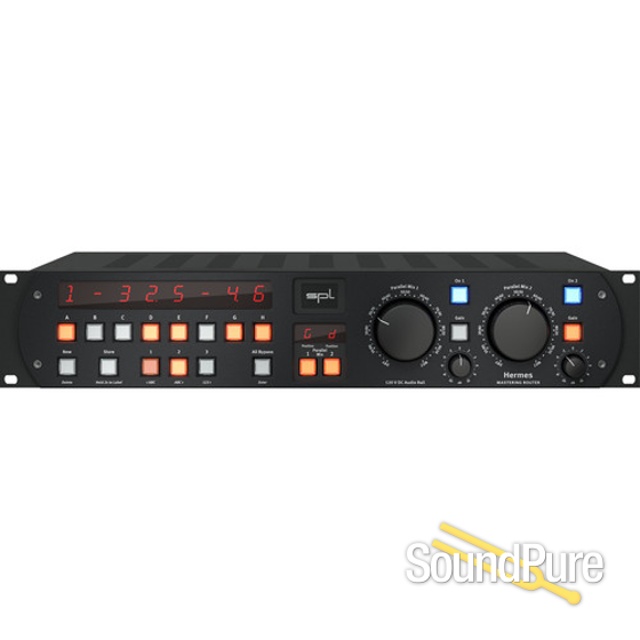

Hermes revolutionizes Mastering. Now it is possible to route an audio signal through up to eight dual-channel processors in any order. User definable presets allow the comparison of complex processing chains with just a flip of a button.
In addition, Hermes has two integrated parallel mix stages that work with any of the eight processors allowing for comparison of two compressors with different parallel mix settings. The parallel mix stages are stored with the processing chains.
Hermes routing is entirely passive using gas-capsuled and gold-plated high-end relays. All active electronics like the I/O stages and the Parallel Mixes use SPL's proprietary and unequaled 120V Technology.
Hermes speeds up the workflow in mastering in ways that were previously extremely difficult, and makes the most out of your existing mastering gear. Repatching to hear a simple change is a thing of the past with Hermes – you can change processor sequences on the fly, store them, and compare settings instantly. All with real switches, relays and no software application.
Features:
♦ Mastering router for 8 dual-channel processors
♦ Two Parallel Mix stages
♦ Create, store and compare complex processing chains
♦ With gain compensation
♦ Fast comparison of up to 4 processing chains
♦ Can be assigned to any device
♦ Fully passive routing using
♦ 120V Technology
♦ Gold-plated and gas-capsuled relays
♦ Label mode to enter device names
Inputs:
Max. Input Level: +32,5 dBu
Max. Input Level (Parallel Mix, Gain active): +28 dBu
Input Impedance: 20 kOhm (bal.)
Outputs (Speaker Output):
Max. Output Level: +32,5 dBu
Output Impedance: ‹ 600 Ohm
Noise (A-weighted): -121 dBu
Noise (A-weighted, Parallel Mix active): -104 dBu
Noise (A-weighted, Parallel Mix, Gain active): -102 dBu
Crosstalk (at 1 kHz at 0 dBu): -130 dB
Crosstalk (at 1 kHz at 0 dBu Parallel Mix active): -110 dB
Crosstalk (at 1 kHz at 0 dBu Parallel Mix, Gain active): -80 dB
THD & N (at +20dBu): › -112 dBu
Common-Mode-Rejection (at 0 dBu): -75 dB
Transmission Bandwidth: 10 Hz-200 kHz 10 Hz = -0,12 dB; 100 kHz = -0,3 dB; 200 kHz = -1,2 dB
Power Consumption:
0,17 Amp, 230V/50Hz, 30 Watt, 37,6 VA
0,34 Amp, 115V/60Hz, 30 Watt, 37,6 VA
Fuses:
230V/50Hz: 1 Amp
115V/60Hz: 2 Amp
Dimensions: Standard EIA 19 Inch Housing/2U: 482 x 88 x 300 mm / ca. 19" x 3,5" x 11,8" (front panel excl.)
Weight: 9kg/ 19,84 lb
