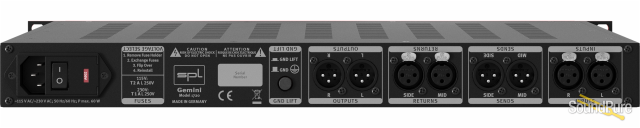

SPL Gemini Mastering M/S Processor (Red)  From SPL

Gemini is the first M/S Mastering Processor in 120V technology.

SPL

$2,799.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Contact us for up-to-date delivery estimate.
Payments as low as $63/mo.

Manufacturer's Description from SPL

With Gemini, M/S processing enters the SPL Mastering series. Gemini is an M/S Encoder and Decoder. Mid signals (voice, snare, bass …) can clearly be seperated from side signals (guitar, spatial sounds, cymbals …) and can individually be processed. When working on the sum signal, M/S coding often is the best way to specifically get access to individual elements within a mix.



Gemini also provides the possibility to work on the stereo panorama. With the Balance control you can position the mid signal within the stereo panorama. With the Trim control, you can adjust the level of the mid signal in relation to the side signal. In connection with the Stereo Width control, the mixing ratio of both channels can be adjusted.



An Elliptical Filter, which can cut low frequency ratios of the side band is also provided.





SPL

About Manufacturer

Sound Performance Labs! Full Range of Analog, Tube, and Digital rack gear with an innovative twist. With their most famous transient designer product, SPL has quickly become a household name in both the recording and live sound arenas.

Specifications

Inputs

Max. Input Level: +32,5 dBu

Input Impedance: 20 kOhms (bal.)



Outputs

Max. Output Level: +32,5 dBu

Output Impedance: ‹ 100 Ohms (bal.)

Noise (A-weighted, Insert, Balance & Trim, Filter & Width = active): -98,2 dBu

THD & N (at +20dBu): › -110 dB

Common-Mode-Rejection (at 0 dBu): -79 dB

Transmission Bandwidth: 10 Hz-150 kHz



Power Consumption:

0,11 Amp, 230V/50Hz, 24 Watt, 32 VA

0,22 Amp, 115V/60Hz, 24 Watt, 32 VA



Fuses:

230V/50Hz: 0,5 Amp

115V/60Hz: 1 Amp



Dimensions

Standard EIA 19 Inch Housing/1U: 482 x 44 x 300 mm / ca. 19" x 1.73" x 11.8" (front panel excl.)

Weight: 5kg / 11 lb
