Speck Electronics EQF 810  From Speck

Powerful 4 band Parametric EQ with selectable between either a "Jensen Transformer-Balanced" or "Active-Balanced" output

Speck Electronics

$775.00

Retail:  $879.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 24 - 48 hours after order processed.
Payments as low as $68/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

Manufacturer's Description from Speck

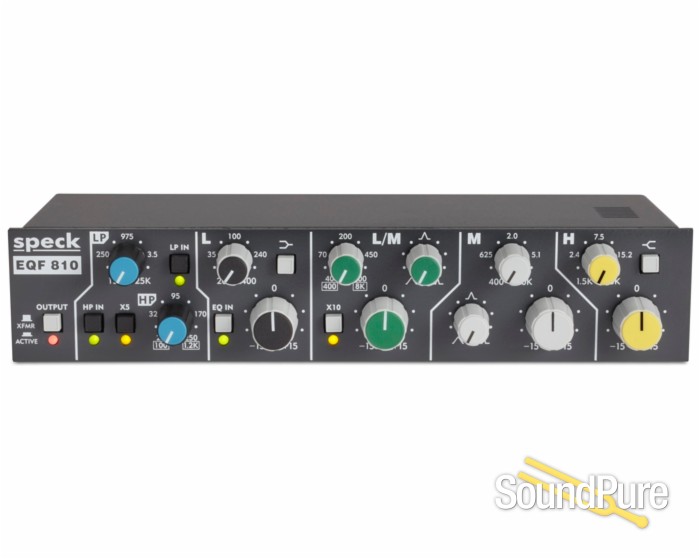

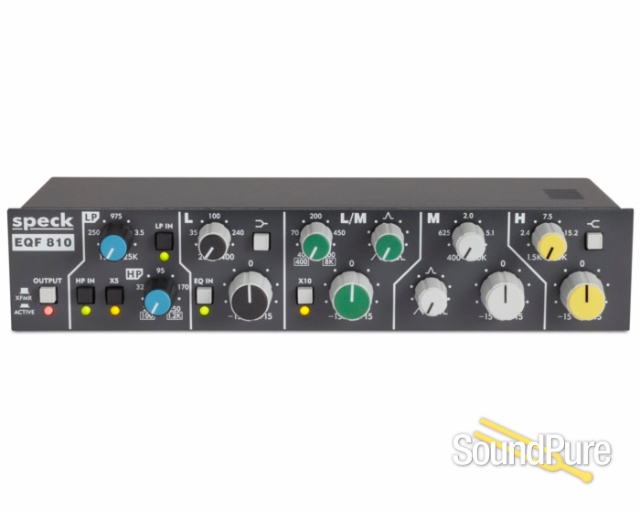

What is the EQF 810?

  The EQF 810 is a professional single channel analog parametric equalizer and variable filters in a 1/2 rack format.

  It is simple...it is useful...and it delivers the high quality and specifications found in all Speck Electronics gear.

  This compact 4-band parametric equalizer has 12 controls for equalization adjustment that covers the audio spectrum from a low 20Hz all the way up to 25kHz.

  To enhance the classic EQ experience, the front panel includes a switch that will select either a "Jensen Transformer-Balanced" or "Active-Balanced" output.

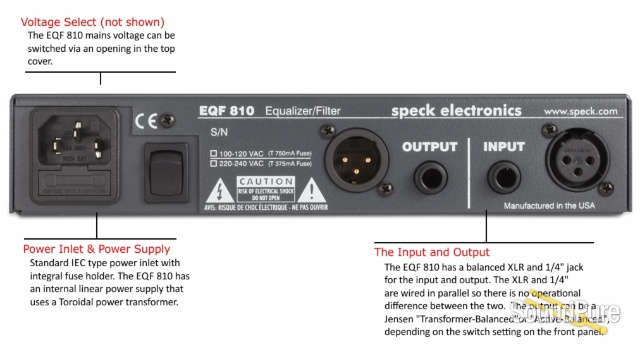

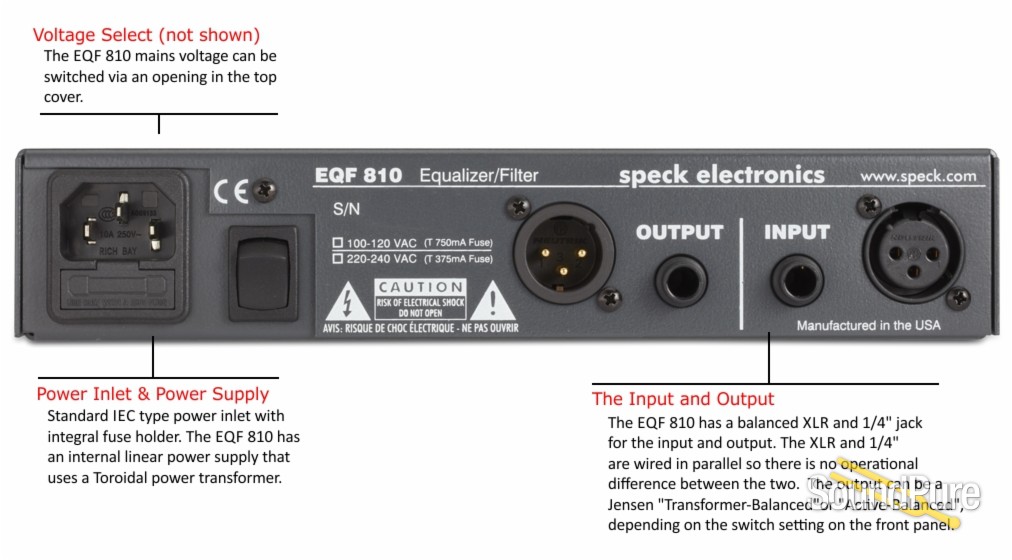

The Rear Panel

  Connect the EQF 810 to virtually any line level source: balanced, unbalanced, or mixer inserts. The EQF 810 has high headroom that will handle balanced signals up to +28dBu.

  Both balanced XLR and balanced 1/4" jacks are provided for signal connections to and from the EQF 810.



4 Sweepable Bands


  L Band - a low band that sweeps the low frequencies from 20Hz - 400Hz. This band offers a Peak/Shelf select switch.

  L/M Band - a switchable low and mid band. This fully parametric section can be switched between a low frequency band that sweeps from 40Hz - 800Hz, or a mid frequency band that sweeps 400Hz - 8kHz. This band has a variable bandwidth adjustment.

  M Band - a fully parametric mid band with a frequency sweep range from 400Hz to 10kHz.

  H Band - a high band that adjusts the high frequency from 1.5kHz all the way up to 25kHz. This band also offers a Peak/Shelf select switch.

2 Variable Filters

  Low Pass - A variable 12dB/Octave filter with Bypass switch is adjustable from 150Hz to 25kHz.

  High Pass - A variable 12dB/Octave filter with Bypass switch is adjustable from 20Hz to 250Hz. The 5X switch will change the adjustable range from 100Hz to 1.2kHz.
Speck Electronics

About Manufacturer

Speck Electronics has been producing quality audio mixers, equalizers, and preamps for all segments of professional audio recording and touring for over 25 years. Our products include the Xtramix compact audio mixer, the Model ASC equalizer, and MicPre 5.0 microphone preamp. Our future goals are to expand our product line with analog hardware complementary with the current line of DAW's and Desktop Recording.

Specifications



Frequency Response
  <2Hz-145kHz (-3dB)
THD+n (Output +24dBu)
  .0014%
Noise
  -91dBu
Maximum Input Level
  +28dBu
Maximum Output Level
  +28dBu (Active-Balanced output)
  +24dBu (Transformer-Balanced output)
Input Impedance
  20K Ohms (Balanced)
  10K Ohms (Unbalanced)
Output Impedance
  60 Ohms (Active-Balanced output)
  600 Ohms (Transformer-Balanced output)
Power Consumption
  9 W
Dimensions
  WxHxD=8.6" x 1.75" x 11"
  (218mm x 44mm x 280mm)
Shipping Weight
  7Lbs (3.2kg)
