From Sennheiser
Full control over your performance – everywhere, every day. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you!
Key Features
♦ Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
♦ Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
♦ Half-rack stereo transmitter in a full-metal housing with OLED display for full control
♦ Easy and flexible wireless synchronization between transmitter and receiver via infrared
♦ Compatible with Sennheiser WSM control software for flexible frequency allocation
♦ Up to 16 compatible channels
♦ Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
♦ Transmission Range: up to 100 meters / 300 feet
♦ High RF output power (up to 50 mW) depending on country regulations
What's in the Box
• SR IEM G4 stereo transmitter
• EK IEM G4 stereo receiver

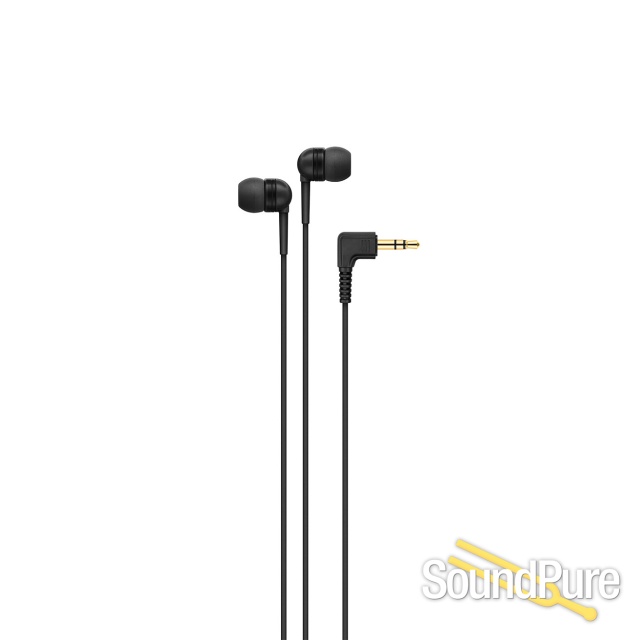

• IE 4 earphones
• 2 AA batteries
• rod antenna
• GA 3 rackmount set
• quick guide
• safety guide
• manufacturer declaration sheet
• power supply

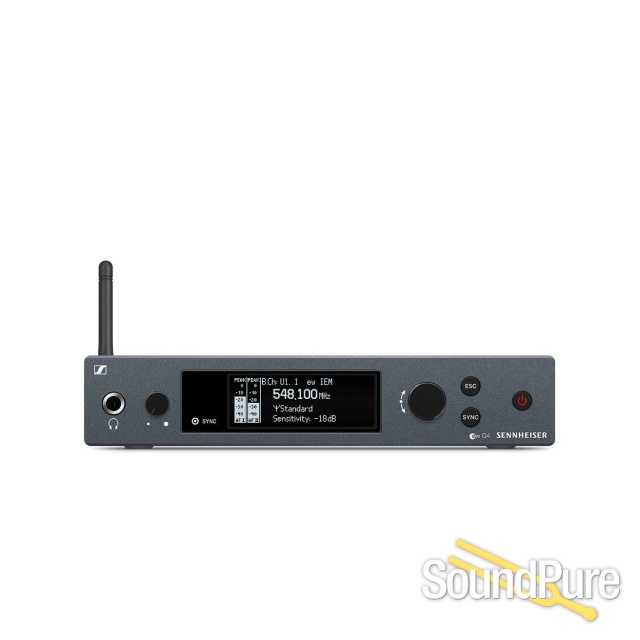

SR IEM G4
Frequency range
A: 516 - 558 MHz
Dimensions
Approx. 202 x 212 x 43 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
<0.9 %
Weight
Approx. 980 g
Audio input
2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
Audio output
¼" (6.3 mm) stereo jack socket, balanced
Signal-to-noise ratio
>90 dB
RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Modulation
Wideband FM stereo (MPX pilot tone)
Power supply
12 V DC
Current consumption
max. 350 mA
Max. Input voltage
+22 dBu
Transmission frequency
Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
AF frequency response
25 Hz to 15 kHz
Temperature Range
-10 °C to +55 °C
Frequency stability
±10 ppm
Antenna Output
BNC socket, 50 Ω
EK IEM G4
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
≤ 0.9 %
Weight
(incl. batteries) approx. 125 g
Signal-to-noise ratio
approx. 90 dBA
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Operating time
approx. 4 to 6 hours (depending on volume level)
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: approx. 140 mA with transmitter switched off: ≤ 25 µA
Adjacent channel rejection
Typically ≥ 65 dB
Audio-Output-Power
2 x 100 mW at 32 Ω
Intermodulation attenuation
Typically ≥ 70 dB
Limiter
–18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
Powering
3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
RF sensitivity
< 4 μV, typ. 1.6 μV for 52 dBA rms S/N
Squelch
5 to 25 dBµV, adjustable in steps of 2 dB
Bass Boost
+8 dB at 80 kHz
Temperature Range
-10 °C to +55 °C
Receiver Principle
Adaptive diversity
Blocking
≥ 80 dB
