From Sennheiser

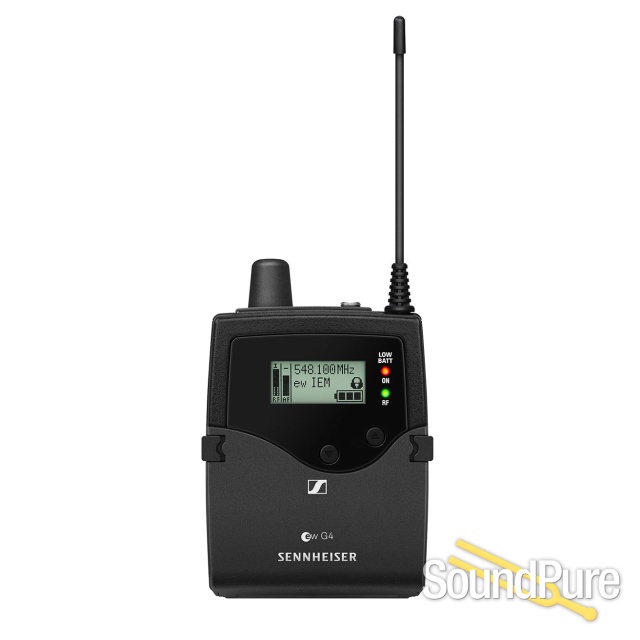

Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
Key Features
♦ Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
♦ Easy and flexible wireless synchronization between transmitter and receiver via infrared
♦ Compatible with Sennheiser WSM control software for flexible frequency allocation
♦ Up to 16 compatible channels
♦ Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
♦ Transmission Range: up to 100 meters / 300 feet
♦ High RF output power (up to 50 mW) depending on country regulations
What's in the Box
• EK IEM G4 stereo receiver
• 2 AA batteries
• IE 4 earphones
• quick guide
• safety guide
• manufacturer declaration sheet
Frequency range
- G
- 566-608 MHz
- Dimensions
- Approx. 82 x 64 x 24 mm
- Compander
- Sennheiser HDX
- THD, total harmonic distortion
- ≤ 0.9 %
- Weight
- (incl. batteries) approx. 125 g
- Signal-to-noise ratio
- approx. 90 dBA
- Switching bandwidth
- up to 42 MHz
- Peak deviation
- ±48 kHz
- Nominal deviation
- ±24 kHz
- Operating time
- approx. 4 to 6 hours (depending on volume level)
- Modulation
- Wideband FM
- Power supply
- 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
- at nominal voltage
- approx. 140 mA with transmitter switched off: ≤ 25 µA
- Adjacent channel rejection
- Typically ≥ 65 dB
- Audio-Output-Power
- 2 x 100 mW at 32 Ω
- Intermodulation attenuation
- Typically ≥ 70 dB
- Limiter
- –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
- Powering
- 3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
- RF sensitivity
- < 4 μV, typ. 1.6 μV for 52 dBA rms S/N
- Squelch
- 5 to 25 dBµV, adjustable in steps of 2 dB
- Bass Boost
- +8 dB at 80 kHz
- Temperature Range
- 10 °C to +55 °C
- Receiver Principle
- Adaptive diversity
- Blocking
- ≥ 80 dB
