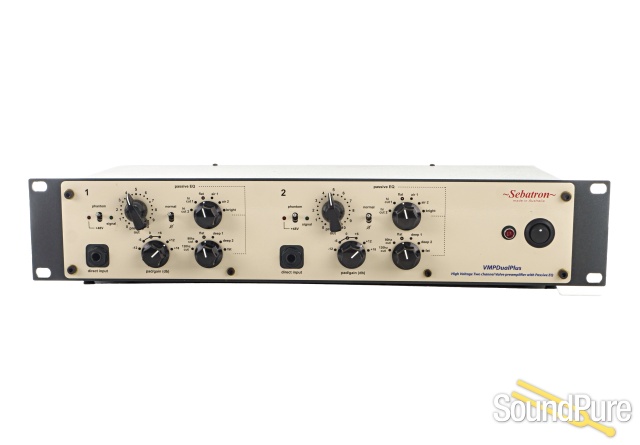

The VMPDualPlus is a high quality two channel high voltage Valve Microphone Preamplifier and Direct Input with a basic passive two band shelving Equalizer on each channel
This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.
We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.
Want to know if one lands?
Notify MeWant to discuss what's coming?
As its name suggests the VMPDualPlus is a part of the Sebatron VMP series of Valve Microphone Preamplifiers. Like its four channel counterpart, the VMPQuadPlus, the VMPDualPlus is based around a transformer-coupled microphone input and 12AT7 valve triode combination running on a proper high tension voltage rail.
All circuitry is fully discrete and completely Class A. There are no intergrated circuits or chips used in the design. This has the benefits of wide sonic bandwidth for maximum audio frequency response and extra headroom to ensure the dynamics of the signal remain intact.
Gain is adjusted via a six way Pad/Gain selector switch that controls negative feedback around the first stage of the 12AT7 Valve. Gain steps are evenly placed at 6db apart making the settings effective and easy to recall. The adjustable gain range in conjunction with the pre-amp out control makes it possible to use the preamp on virtually all sources from the very quiet to the very loud. The VMPDualPlus handles all microphone types - Ribbon, Dynamic and Condenser - with ease.
To sweeten signals the VMPDualPlus passive two band Equalizer is extremely effective and an indispensable tool for sound manipulation. The high frequency boost settings add clarity and sparkle to material which would otherwise sound harsh or unnatural when boosted with conventional digital EQ.
The low frequency boost settings add body and depth to thin signals in a buttery manner that embellishes the signal by adding a distinct classic character. Both bands have been configured to bring out the best in Valve mcolouration by their chosen frequencies.
Running pre-recorded matrerial through the VMPDualPlus can also add flavour and spark to otherwise dull or unexciting mixes.
Like all Sebatron products the VMPDualPlus is a musical vehicle that will take you and your music on long sonic journeys.
Unique high-quality organic valve and class-A solid state studio equipment. No integrated circuits. Made in Australia.
• Transformer balanced XLR input feeding 12AT7 dual triode valve
• High Impedance unbalanced phono Direct Input for Guitar, Bass, Keyboards or line level signals etc. on front panel for easy access
• Balanced phono TRS outputs for independent monitoring
• Fully balanced XLR main outputs
• Quality 12AT7/ecc81 Valve running on a High Voltage rail providing crystal clear musical signal amplification
• Over 68db of gain variable from clean to coloured
• Six-way Pad/Gain control in 6db increments that sets the gain and colour of the preamp
• Six-way High Shelf selector dealing high Frequency boost or cut
• Six-way Low Shelf selector dealing low Frequency boost or cut
• 180 degree Phase toggle switch to flip signal output phase
• +48 VDC Phantom Power for condenser microphones with LED indication
• Green LED indicates signal is in correct operating range
• Output level control for transparent control of the final output signal
• Solid build with 3mm mild steel powdercoated front panel and 1mm mild steel faceplate
• Switchable 110/120 - 220/240 VAC mains voltage selector
Valve Type: 12AT7 or ECC81 ( two valves required )
Prefered Valve Brand(s): J.J, Amperax, Telefunken, JAN
Frequency Response: 20Hz - 80 KHz +/- 2db (air 1)
Maximum Output Level: +30dbu balanced
Total Gain of preamp section: 68 db
Input Impedance (mic): 1K ohm
Input Impedance (D.I): 100K ohm
Output Impedance: Less than 600 ohm
Topology: Discrete and Class A Valve and Solid State signal path
