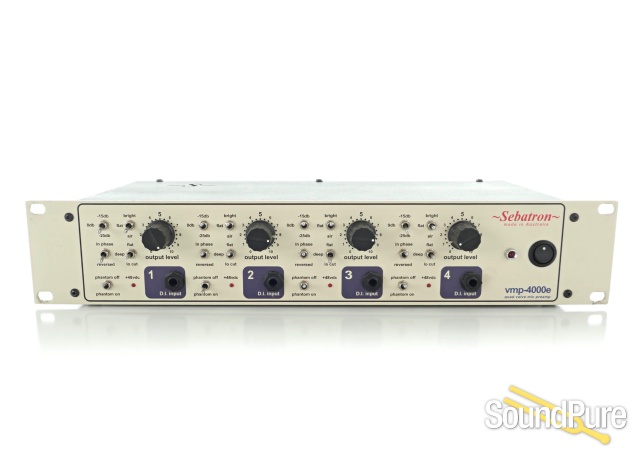

Sebatron VMP4000e 4 Channel Tube Mic Pre - Used  From Sebatron

Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

Sebatron

"Gone, Baby, Gone"

This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.

We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.

Want to know if one lands?

Notify Me

Want to discuss what's coming?

Manufacturer's Description from Sebatron

HIGHLIGHTS - Each Channel Consists of :

  • Transformer balanced microphone input
  • Individual phantom power with LED indication
  • DI for direct instrument or line input
  • Passive switchable EQ for the extreme high and low registers - very practical when tracking
  • A 12AT7 vacuum tube run at a proper high tension providing all of the active gain
  • Switchable PAD control which varies negative feedback around the valve, controlling colour
  • Solid state, discrete Class A output stage, powered by a high voltage rail for superior headroom and transient response
  • Switchable output phase
  • XLR and TRS balanced inputs and outputs

The Sebatron Valve Microphone Preamplifier has been designed to bring back that Classic tone to digital recording and multitracking. The Sebatron VMP series (Valve Microphone Preamplifier) is available in two channel (with or without VU) and four channel formats ... the vmp-2000e , vmp-2000eVU and vmp-4000e.All circuitry is High Voltage Discrete Class A for optimal headroom, wide audio bandwidth and maximum transient response. The valve Anode Voltage is approximately +300VDC.

Microphone inputs are transformer coupled for an organic 'pleasant to the ear' flavour and all signal gain is provided by the valves..Direct Inputs are available for Bass, Guitar, Keyboards and running line level signals through etc.The two-band switched Passive Equalization network and variable colour control via the Pad switches allow the user to carefully sculpt the signals when dealing with the clinical and lifeless quality of Digital (or otherwise ) recordings.Such is the organic quality and musical colouration of the VMP series circuit that they are often used to run stems (sub mixes) or full mixes through to obtain that characteristic 'Analog glue' that Digital recording systems simply cannot produce.Sebatron preamplifiers are being used everyday by Professional hi end audio studios all around the world.

The VMP Series of preamplifiers from Sebatron is aimed at filling in the gap between ‘transparent’ amplification and ‘coloured’ or character preamplifiers. They can be driven lightly for pure, almost transparent sounds with just an edge of true valve tone or slammed into thick distortion, with a spectrum of colours available in between.

All Sebatron products are designed with reliability and long life in mind.All units are housed in steel chassis’ with quality hardware. Everything is hand built using single sided circuit boards and discrete components for easy servicing. We refused to use integrated circuits because of their lack of character and other limitations they impose on a circuit. It is easy to produce purity from a chip, but it is nigh on impossible to squeeze out soulful tones. A properly tuned valve circuit (i.e. not a starved tube used as an effect) subtly compresses and harmonically enhances the signal in an organic and musical fashion, providing the warmth and punch associated with tape that is missing from purely digital systems. Sebatron VMP preamps have also proven popular as line level devices for adding organic richness to synths, amp simulators, stem mixes or even over a complete mix.





Sebatron

About Manufacturer

Unique high-quality organic valve and class-A solid state studio equipment. No integrated circuits. Made in Australia.

Specifications

Circuit Topology : Dual Channel Single Ended Class A 12AT7 Triode Gain Stage, Discrete Solid State Class A balanced output
Input : Transformer Balanced Microphone Input - Unbalanced Direct Input
Pad : Variable Negative Feedback control, -15dB and -25dB positions
Phantom Power : +48 vDC
Maximum Gain : over 60dB
Maximum Output Level : Balanced XLR Pin 2 hot :+28dB into 600 ohms | Balanced TRS jack : +22dB
Noise : -120dB at 60dB Gain
Frequency Response : (-25dB pad 'air' activated) 10hz-110khz +/-2db
Weight : 4.5kg
Dimensions : 482mm x 190mm x 88m
Power : Externally switchable 110/120/220/240 VAC for global useage.
Build : Chassis is 1.2mm mild steel powder coated 'Textured Black'. Front Panel is 2.5mm mild steel powder coated 'Transformer Grey'. Single sided printed circuit boards.
Topology : Topology is all discrete and Class A Valve and Solid State signal path running on +300V and +60V rails respectively.
Circuitry : Class A Discrete and low noise. Dual Triode 12AT7/ecc81 and High Voltage Silicon Transistors.
