Rupert Neve Designs Portico 5033 EQ  From Neve

From Rupert Neve Designs' Portico series: 5033 - Five Band EQ

Rupert Neve Designs

$1,725.00

Retail:  $1,895.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 24 - 48 hours after order processed.
Payments as low as $39/mo.

Manufacturer's Description from Neve

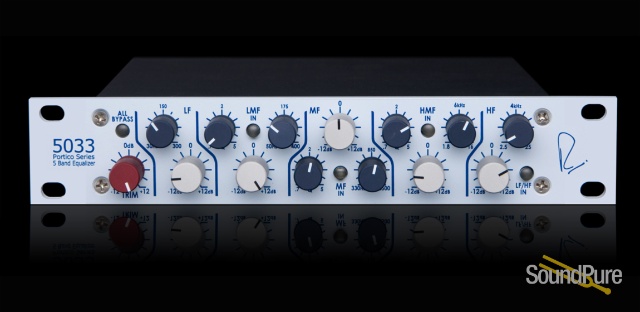

The Portico 5033 Five Band EQ and high performance line driver is a new equalizer with the performance, features and musicality expected from Rupert Neve, the designer.

The 5033 features Mr. Rupert Neve's custom input and output transformer designs, five bands of EQ based on his traditional curves, -/+12dB input level adjustment, five filter bypasses and comes available in either horizontal or vertical formats.

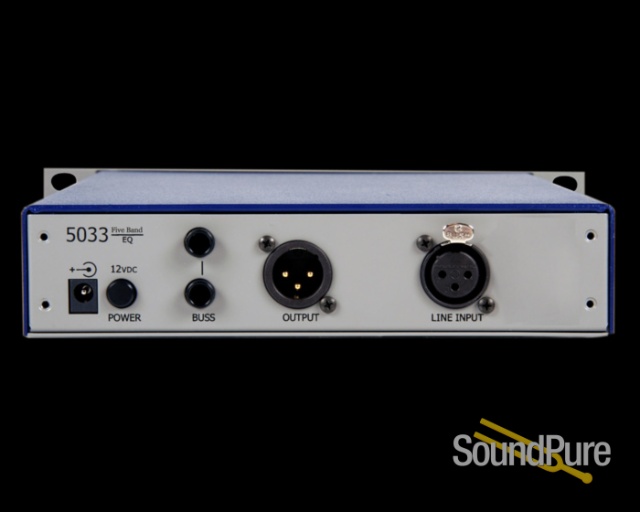

At the input and output of the 5033 lie custom designed Rupert Neve transformers, which are much of the heart of the sound of Mr Rupert Neve’s classics. The EQ section can be completely bypassed and the unit can be used as a very high quality line driver utilizing these transformers, which can help to add sonic "sweetness" to a source.

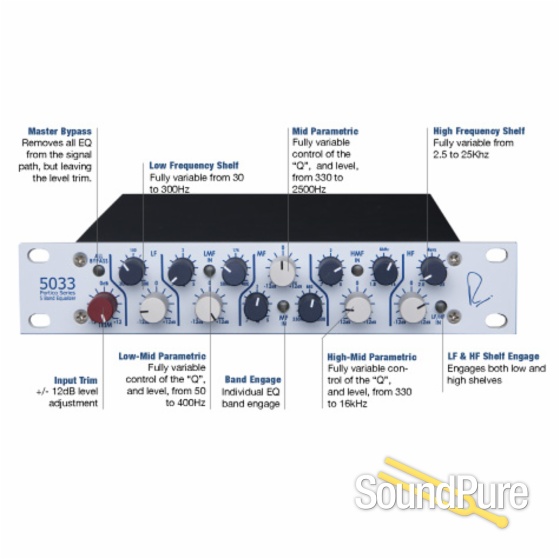

Low Frequency and High Frequency Shelving Filters

For opposite ends of the audio spectrum there are two separate shelving filters, which are both engaged or disengaged using the same LED pushbutton. Each shelving filter allows for a boost or cut of up to 12 db, providing steeply rising or falling curve shapes. When these curves are boosted or cut aggressively, they enable the second and even third harmonic to be varied in relation to their fundamental, allowing the natural sound of a musical instrument to be varied. When used less aggressively, one can attenuate bands of frequencies above or below the "turnover" point to their desired levels. These sections each provide EQ curves that approximate to 6 dB/ and give a true "Flat" response when this section is engaged but not boosted or attenuated.

Low Frequency (LF) Shelving Filter

Continuously variable from 30Hz to 300 Hz, allowing for a wide range of applications, from filtering out low rumbles caused by air conditioning units to taming an instrument with too much low end or even adding a little bit of "oomph" to a thin mix, proving to be an indispensable asset in the signal chain.

High Frequency (HF) Shelving Filter

Continuously variable from 2.5 kHz to 25 kHz, giving this section of the EQ a valuable range of operation. Whether you want to really bring out the presence and breath of your vocals or simply add some "air" to your overall mix, the HF shelving filter will give you that bit of sparkle you're looking for.

Mid Range Parametric Filters

To cover the crucial mid-range, the 5033 comes with three bands of parametric EQ, each separately engaged and having a true "flat" response when each section is engaged but not boosted or attenuated. Each section is capable of boosting or attenuating up to 12 dB, and includes a variable "Q" control. "Q" controls range from "Q" = 0.6 to "Q" = 3, allowing you to vary the bandwidth of the attenuation or boost, whether a broad range of frequencies to gently give a sonic section a slight boost or dip or using the filter with a very narrow range of frequencies, acting almost as an audio "chisel" to hone in on certain offending frequencies.

The Low Mid Frequency (LMF)

Section is variable from 50 Hz to 400 Hz. The Mid Frequency (MF) Section is variable from 330 Hz to 2.5 kHz. The High Mid Frequency (HMF) Section is variable from 2 kHz to 16 kHz. Each section has been carefully designed to overlap neighboring ranges, allowing for a very fine range of possible adjustments. 5033 user guide

Detailed EQ Frequency Points

The LF and HF shelf frequencies are the 3 dB down points from the highest point of the shelf:

LF

1st notch not numbered – 68.4 Hz

2nd – 111.3 Hz

4th – 155.6 Hz

5th – 198 Hz

HF

1st notch not numbered – 2.760 kHz

2nd – 3.240 kHz

4th – 5.6 kHz

5th – 10.9 kHz



Rupert Neve Designs

About Manufacturer

Rupert Neve Designs, Inc. is nestled in the picturesque Texas Hill Country. Our small team of dedicated engineers have designed a new range of Professional Audio Gear and systems based on both proven classic design concepts and modern innovations. This new range of gear is based on custom designed transformer and single sided amplification

Specifications

EQ POINTS

LMF
1st notch not numbered – 65.1 Hz
2nd notch – 120.8 Hz
4th notch – 248.9 Hz
5th notch – 354.5 Hz

MF
1st notch not numbered – 443.6 Hz
2nd notch – 693.9 Hz
4th notch – 1.481 kHz
5th notch – 2.225 kHz

HMF
1st notch not numbered – 2.475 kHz
2nd – 4.748 kHz
4th – 9.612 kHz
5th – 13.545 kHz

The LF and HF shelf frequencies are the 3 dB down points from the highest point of the shelf:

LF
1st notch not numbered – 68.4 Hz
2nd – 111.3 Hz
4th – 155.6 Hz
5th – 198 Hz

HF
1st notch not numbered – 2.760 kHz
2nd – 3.240 kHz
4th – 5.6 kHz
5th – 10.9 kHz

TRIM
Provides fine gain adjustment continuously over a range of +/- 12 dB.

ALL BYPASS
Push button inserts or bypasses the entire EQ circuit

LF SECTION
Continuously variable shelving filter with a frequency range of 30 Hz to 300 Hz; continuously variable gain of +/- 12

LMF SECTION
Continuously variable frequency range of 50 Hz to 400 Hz; continuously variable Q; continuously variable gain of +/- 12; IN pushbutton inserts or bypasses LMF Section

LMF IN
Inserts the LMF Section into the circuit

MF SECTION
Continuously variable frequency range of 330 Hz to 2500 Hz; continuously variable Q; continuously variable gain of +/- 12; IN pushbutton inserts or bypasses LMF Section

MF IN
Inserts the MF Section into the circuit

HMF SECTION
Continuously variable frequency range of 5 kHz to 16 kHz; continuously variable Q; continuously variable gain of +/- 12; IN pushbutton inserts or bypasses LMF Section

HMF IN
Inserts the HMF Section into the circuit

HF SECTION
Continuously variable shelving with a frequency range of 2.5 kHz to 25 kHz; continuously variable gain of +/- 12

HF & LF IN
Inserts the HF and LF Sections into the circuit
