From Rode Microphones
The TF-5 represents a new standard for small-diaphragm condensers. Offering the hallmark clarity and airiness you'd expect from a world-class 'pencil' mic, with a warm, natural character that sets it apart, the TF-5 is uniquely versatile.
Offered in a precision-matched pair, the TF-5 is the perfect microphone for a wide range of applications where incredible accuracy and detail is required, from stereo orchestral recording to capturing the nuances of an individual performance when used as a spot mic.
Key Features

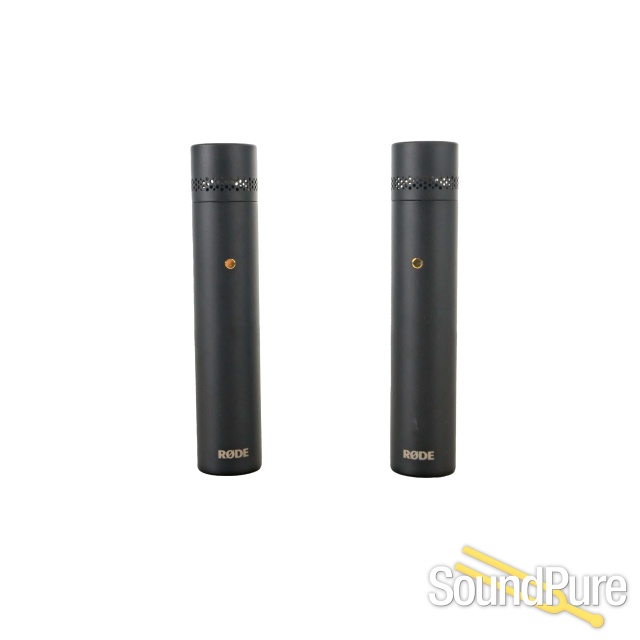

- Precision-matched small-diaphragm cardioid condenser microphones
- Ultra-low noise, flat frequency response
- Tight cardioid polar pattern
- Warm, detailed sound
- Designed in collaboration with Grammy® award winning classical producer and engineer, Tony Faulkner

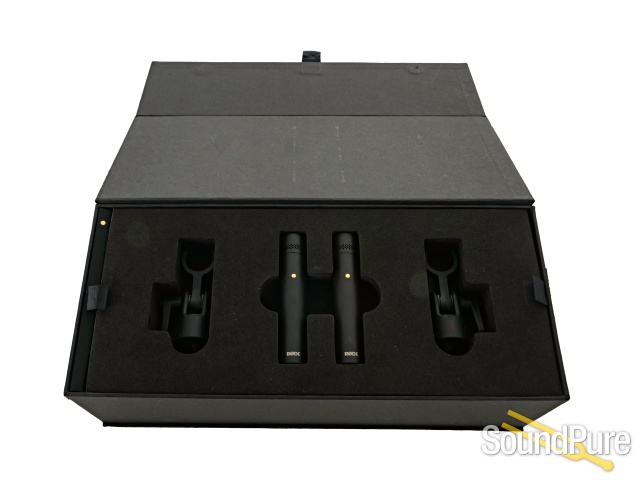

- Comes in complete stereo recording kit, including the RØDE Stereo Bar, mic clips and windshields
- Acoustic Principle
- Externally biased condenser
- Active Electronics
- JFET impedance converter with bipolar output buffer
- Polar Pattern
- Cardioid
- Frequency Range
- 20Hz - 20kHz
- Frequency Range
- 30 Hz - 20 kHz ±3dB // 20 Hz - 20 kHz ±4dB
- Output Impedance
- 63Ω
- Signal-to-noise Ratio
- 80 dB
- Equivalent Noise
- 14 dB SPL (A-weighted, as per IEC651)
- Input SPL @ 1% THD
- 135 dB SPL (1kHz @ 1% THD, 600Ω load)
- Sensitivity
- -29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz)
- Dynamic Range
- 112.6 dB (1kHz @ Max SPL)
- Power Requirements
- 7mA @ 48V phantom power
- Weight (g)
- 114g (single microphone)
- Dimensions (mm)
- Length: 98.7mm Diameter: 20mm
