RME DSP Time Code Option  From RME

Time Code Option for direct connection to HDSP AES-32, HDSPe AES-32, HDSPe MADI, HDSPe 9632, HDSPe PCI

RME

$599.00

No Sales Tax in OH!
No Sales Tax in 45 States. Learn More.

Retail:  $699.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax collected in OH.

Close
Sales Tax
Sales tax is only collected in the following states: CA, FL, NC, SC, TN and VA. If your state is not listed, sales tax will not be collected on your order.
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $52/mo.

Manufacturer's Description from RME

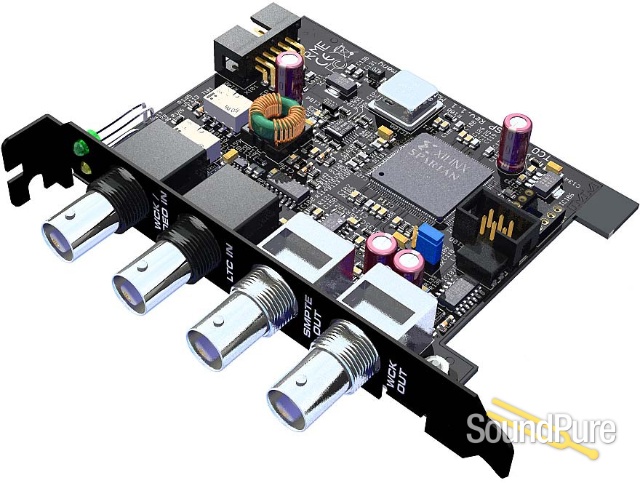

The TCO module is an optional extension for selected RME cards. Placed in a free slot of the computer chassis the TCO will be connected with the main card via a flat ribbon cable.



Synchronization Module for LTC and Video

The small module provides the HDSPe cards with a Word Clock input and offers a synchronization to LTC and video. Thanks to SteadyClock(TM), the TCO not only extracts absolute positions from LTC, but also a very clean low-jitter word clock from LTC and video. Thus a sample accurate timecode synchronization to audio or video sources is assured.

One single TCO can be used with different HDSP/HDPe cards at the same time (multicard), if connected to a supported card (see graphic).

LTC can be derived and generated in all common formats, i.e. 24, 25, 30, and 29.97 frames; drop-frame or non-dropframe. Commonly used Pull-Up- and Pull-Down formats (+/- 0.1% and +/- 4%) can be utilised, and PAL and NTSC video formats will be automatically detected and processed.

The received Time Code can be sent to the audio or video application as ASIO Positioning Protocol (APP) or MTC. An application can send APP to the TCO, which will generate LTC on hardware level with lowest jitter (Windows only). Several fly-wheel functions facilitate chase operation (adjustable drop-out length, Continuous- or Jam-Sync).

Under Windows the TCO provides the SMPTE position as APP (ASIO Positioning Protocol) and as MTC Sync. Under Mac OS X the TCO provides the SMPTE position as MTC Sync only.

The TCO has a combined switchable Word Clock/Video input (BNC) as well as an LTC input (BNC). The Word Clock /Video input on the card can comfortably be terminated (relay-controlled) with a 75 Ohm terminator from the settings dialog.

The TCO also features an additional LTC output (BNC) with two level settings (configurable via jumper).

Settings

Setup Dialog
All settings can be accessed conveniently from an additional page in the settings dialog of the HDSP mother card.

The clear and easy dialog site appears automatically after a TCO is installed. On the main page the new sync-option TCO can be selected.

The dialog provides all important options: Sync-Source (LTC, Video or Word Clock), termination for BNC input (75 Ohm), Frame Rate of the incoming SMPTE signals and WCK Conversion.

Furthermore the TCO dialog shows Pull-Up and Pull-Down factors and state information (Input State) about the incoming signal. E.g. an incoming word clock signal is analyzed and displayed to be in the Single Speed, Double Speed or Quad Speed range.

RME

About Manufacturer

RME is a young German team of developers with a robust vision of creating innovative, user friendly, and high-quality digital audio solutions for less money. Founded in 1996, RME quickly earned their stripes as a premiere industry provider, expanding rapidly into mainstream international markets. Each developer on the RME team is either a musician or sound engineer - besides being a specialist in hardware and software development. Additionally, to give their designs a persistent competitive edge in today's market, RME developers regularly network with other industry specialists to exchange knowledge and information - truly designing a line of products with superior quality, and affordable, mass-market appeal. RME has had a consistent string of successful product releases, earning awards and accolades from the press and the public alike. The enthusiastic response and worldwide support the RME product line has generated ranks them one of the top audio device companies in the industry.

Specifications

  • LTC In
  • BNC unbalanced
  • Level range: -25 dBu up to +12 dBu
  • Video In (Word Clock In)
  • BNC switchable termination 75 Ohm
  • Format: PAL and NTSC
  • Word Clock In (Video In)
  • BNC, switchable termination 75 Ohm
  • Transformer coupled, galvanically isolated input
  • Not affected by DC-offsets within the network
  • Signal Adaptation Circuit: signal refresh through auto-center and hysteresis
  • Overvoltage protection
  • Level range: 1.0 Vpp - 5.6 Vpp
  • Lock Range: 28 kHz - 200 kHz
  • Jitter when synced to input signal: < 1 ns
  • Jitter suppression: > 30 dB (2,4 kHz)
  • LTC Out
  • BNC
  • Output level: +4 dBu, via Jumper -7 dBu
  • Outputs impedance: 220 Ohm
  • Word Clock Out
  • BNC
  • Max output voltage: 5 Vpp
  • Output voltage @ 75 Ohm: 4,0 Vpp
  • Outputs impedance: 10 Ohm
  • Frequency range: 28 kHz - 52 kHz
  • Power supply via ribbon cable, 5 V DC, 100 mA
  • Standard bracket, dimensions PCB (WxD): 98 x 75 mm
