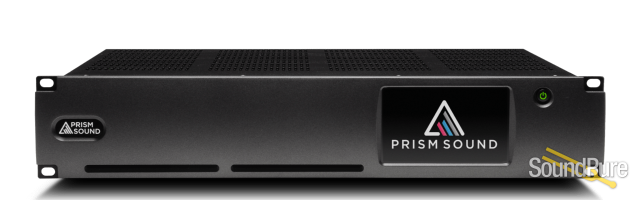

Prism Sound Dream ADA-128 Chassis w/ MADI Card  From Prism Sound

Modular High-Quality Audio Conversion System Preconfigured with MADI Card

Prism Sound

$7,299.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $166/mo.

Manufacturer's Description from Prism Sound

Today the dawn of a new breed of product from Prism Sound has arrived, The Dream ADA-128. Over the past five years Prism Sound has been developing a new innovative architecture. Defining a new standard in conversion technology, from early conversations with key partners through to prototype testing every step pf the journey has been a defining moment in this revolutionary new unit.



The Dream ADA-128 will be the latest in the acclaimed range of Prism Sound ‘Dream’ A/D and D/A converters which have become widely regarded as the world’s best sounding converters. Whilst continuing the tried and trusted ‘no compromise’ design philosophy of previous ‘Dream’ products, the Dream ADA-128 adds new flexibility, functionality and greater cost-effectiveness.





MODULAR

Modular analogue and digital I/O up to 128 channels in a 2U frame with 8 channel line / Out and Mic/Line cards.



QCLOCK

The ADA-128 provides independent synchronization of I/O cards, enabling operation with up to four different clock domains.



A.D.R.A.

The ADA-128 offers accurate, ultra detailed A/D and D/A conversion providing complete focus of sound to ensure you're not distracted by colouration while allowing every nuance of a performance to be heard.



DIGITAL FREEDOM

With 4 modular host slots alongside 16 modular I/O slots, the Dream ADA128 offers unrivaled and almost unlimited flexibility.



Prism Sound

Specifications



CHASSIS

Form factor: 2U rack mountable

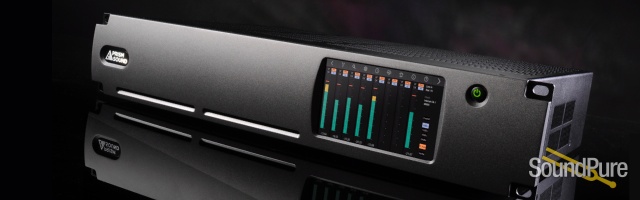

Front panel: Power/standby button, 5” touch TFT control panel

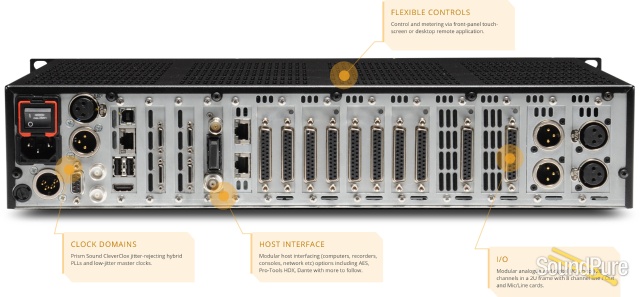

Rear panel: 16 I/O Module slots (1-16), 4 Host Module or I/O Module slots (17-20)
CPU Module with: 1xGbE RJ45, 2xUSB host, 1xUSB device, 1xHDMI
Utility reference sync panel with:
  • XLR DARS/AES11 input, XLR DARS/AES11 output
  • BNC Wordclock/Baseclock/Black-burst-video/10MHz input
  • BNC Wordclock/Baseclock output
  • DE-9F sync breakout, with 1x DARS out, 2xBNC out, 1xBNC in
3-pin 6A IEC mains inlet, fuse holder and isolation switch*
Clock Domains: Four independent clock generators providing four Clock Domains
Each Module slot can be assigned to any Clock Domain
Host slots have access to multiple Clock Domains
Routing: Every output port can be routed from any input port
Host Modules may thus operate as bridges
Dimensions: W: 483mm D: 320mm H: 88mm (2U)
Weight: TBC, depending on fitment
Power requirement: 90-260VAC 50/60Hz, up to 80W depending on fitment
Environmental: 0 to 35°C, 85% maximum relative humidity
Note: * DC and redundant power options under development

MADI Card specifications coming soon.
