From Prism Sound
Today the dawn of a new breed of product from Prism Sound has arrived, The Dream ADA-128. Over the past five years Prism Sound has been developing a new innovative architecture. Defining a new standard in conversion technology, from early conversations with key partners through to prototype testing every step pf the journey has been a defining moment in this revolutionary new unit.
The Dream ADA-128 will be the latest in the acclaimed range of Prism Sound ‘Dream’ A/D and D/A converters which have become widely regarded as the world’s best sounding converters. Whilst continuing the tried and trusted ‘no compromise’ design philosophy of previous ‘Dream’ products, the Dream ADA-128 adds new flexibility, functionality and greater cost-effectiveness.
MODULAR
Modular analogue and digital I/O up to 128 channels in a 2U frame with 8 channel line / Out and Mic/Line cards.
QCLOCK
The ADA-128 provides independent synchronization of I/O cards, enabling operation with up to four different clock domains.
A.D.R.A.
The ADA-128 offers accurate, ultra detailed A/D and D/A conversion providing complete focus of sound to ensure you're not distracted by colouration while allowing every nuance of a performance to be heard.
DIGITAL FREEDOM
With 4 modular host slots alongside 16 modular I/O slots, the Dream ADA128 offers unrivaled and almost unlimited flexibility.
CHASSIS
| Form factor: | 2U rack mountable |
|---|---|

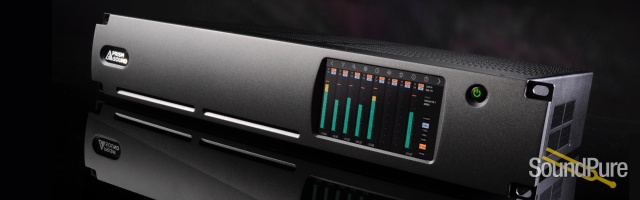

| Front panel: | Power/standby button, 5” touch TFT control panel |

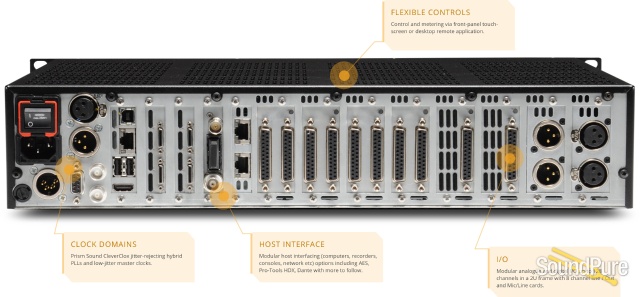

| Rear panel: | 16 I/O Module slots (1-16), 4 Host Module or I/O Module slots (17-20) CPU Module with: 1xGbE RJ45, 2xUSB host, 1xUSB device, 1xHDMI Utility reference sync panel with: XLR DARS/AES11 input, XLR DARS/AES11 output BNC Wordclock/Baseclock/Black-burst-video/10MHz input BNC Wordclock/Baseclock output DE-9F sync breakout, with 1x DARS out, 2xBNC out, 1xBNC in 3-pin 6A IEC mains inlet, fuse holder and isolation switch* |
| Clock Domains: | Four independent clock generators providing four Clock Domains Each Module slot can be assigned to any Clock Domain Host slots have access to multiple Clock Domains |
| Routing: | Every output port can be routed from any input port Host Modules may thus operate as bridges |
| Dimensions: | W: 483mm D: 320mm H: 88mm (2U) |
| Weight: | TBC, depending on fitment |
| Power requirement: | 90-260VAC 50/60Hz, up to 80W depending on fitment |
| Environmental: | 0 to 35°C, 85% maximum relative humidity |
| Note: | * DC and redundant power options under development |
AES Card
| Configuration: | Eight input and output ports on four pair of digital carriers, transformer-coupled |
|---|---|
| Connection: | DB-25F, industry-standard TASCAM pinout |
| Supported sample rates: | 44.1kHz, 48.0kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Pullup: 0.1%, 4.16%; pulldown: 0.1%, 4.0% |
| Wordlength: | 24 bits |
| Verifile: | Tag checking on outputs (signal integrity verification) |
| DSP functions: | MS processing High-pass filter selectable on inputs |
| Formats: | AES3 (110Ω I/O impedance, professional Channel Status) S/PDIF (75Ω I/O impedance, consumer Channel Status) AES3id (110Ω I/O impedance, professional Channel Status) Format is software-selectable per carrier |
