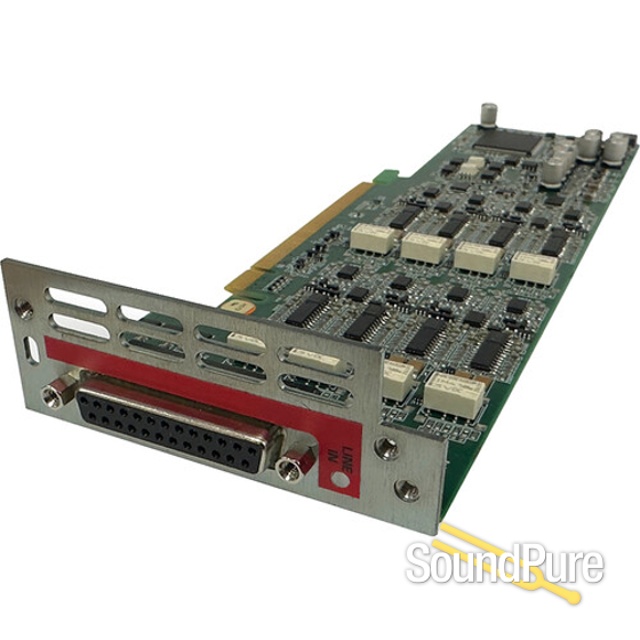

From Prism Sound
|
Note:
|
Unless otherwise noted: specifications apply at fs = 48kHz and 18dBu line-up setting, balanced operation; residuals are band-limited 20Hz..20kHz and are quoted rms unweighted.
|
|
Configuration:
|
Eight input ports, electronically balanced, with fully-balanced analogue signal paths
|
|
Connection:
|
DB-25F, industry-standard TASCAM pinout
|
|
Supported sample rates:
|
44.1kHz, 48.0kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Pullup: 0.1%, 4.16%; pulldown: 0.1%, 4.0% |
|
Wordlength:
|
32 bits
|
|
Verifile:
|
Tag insertion (allows downstream signal integrity verification)
|
|
DSP functions:
|
Amplitude calibration and trim
MS processing High-pass filter selectable |
|
Input sensitivity:
|
0dBFS = 24dBu to 3dBu in 1dB steps, with 0.1dB stepped trim
|
|
Input impedance:
|
14.5kΩ
|
|
Unbalanced mode:
|
Automatic
|
|
Over-killer (soft limit):
|
Per-channel, software selectable
|
|
Total harmonic distortion:
|
-115dB (< 0.00018%)
|
|
THD+N:
|
-111dB (< 0.00028%)
|
|
Dynamic range:
|
116dB (residual at -60dBFS), 119dB with A-weighting filter
|
|
Ide channel noise:
|
-116dBFS
|
|
Gain accuracy:
|
±0.05dB
|
|
LF roll-off (wrt 997Hz):
|
-0.05dB at 20Hz, -3dB at 1.7Hz
|
|
HF roll-off (wrt 997Hz):
|
-0.05dB at 20kHz (fs>=48kHz)
-3dB at 19k2 (fs=44k1) -3dB at 20k9 (fs=48k0) -3dB at 38k4 (fs=88k2) -3dB at 41k6 (fs=96k0) -3dB at 75k6 (fs=176k4) -3dB at 81k5 (fs=192k0) |
|
CMRR:
|
>80dB at 50Hz, >63dB at 15kHz
|
|
Crosstalk (any port pair):
|
<-130dB (50Hz)
<-112dB (15kHz) |
|
Inter-channel phase:
|
±0.03° (10Hz – 5kHz)
±0.12° (5kHz – 20kHz) ±0.3° (20kHz – 50kHz) |
