Neumann TLM 170R MT Microphone

Fantastically neutral multipattern condenser mic that features a rich warm tone without sacrificing detail.

UPC 615104071667

$3,500.00 or about $146/mo with Affirm Prequalify →

Talk to an Expert 888-528-9703

Have a question about this item? Email us →

Free 3-Year Parts & Labor Warranty (details)
Talk to an Expert — Sound Pure engineers, not phone-bank reps
Sound Pure Financing — 0% APR options via Affirm

From Neumann USA

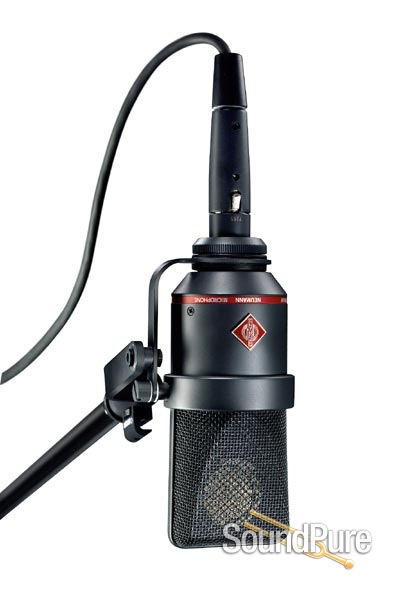

The TLM 170R is a large diaphragm, studio condenser microphone with 5 polar patterns selected either by a rotary switch on the rear side of the microphone, or remotely by the N 48 R-2 dual phantom power supply / controller, (optional). "TLM" stands for Trans-formerless Microphone. The "R" denotes remote control capability. Remote control of microphone polar patterns had previously been achieved only through the use of special, multi-conductor cables and connectors. The TLM 170R is the first microphone to achieve this feat via standard, two conductor shielded microphone cable and 3-pin XLR type connectors.

When using the rotary switch on the rear of the body of the microphone to select the polar patterns, the TLM 170R will function normally with any 48V phantom power source conforming to DIN 45 596. For remote control of the polar pattern, the "r" position is selected and the N 48R-2 is required. The N 48 R-2 will provide phantom power and independent polar pattern control for two microphones. Remote control is affected by varying the phantom power voltage in 1.5V increments from 45-51 volts.

The mic comes equipped with a swivel shock-mount providing effective isolation from external mechanical vibrations. It may be easilyremoved or mounted on the opposite side of the microphone when required. An optional elastic suspension EA 170 is also available.

The TLM 170R is distinguished from previous TLM 170 by a red ring around the base of the microphone body. Two finishes are available: satin nickel, (silver) and matte black. Previous TLM 170 can be upgraded for remote control via circuit modification.

Acoustical operating principle	Pressure gradient transducer
Directional pattern	Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
Frequency range	20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm	8 mV/Pa
Rated impedance	50 ohms
Rated load impedance	1 kohms
Equivalent noise level, CCIR¹⁾	26 dB
Equivalent noise level, A-weighted¹⁾	14 dB-A
Signal-to-noise ratio, CCIR¹⁾ (rel. 94 dB SPL)	68 dB
Signal-to-noise ratio, A-weighted¹⁾ (rel. 94 dB SPL)	80 dB
Maximum SPL for THD 0.5%²⁾	144 dB
Maximum SPL for THD 0.5% with preattenuation²⁾	154 dB
Maximum output voltage	10 dBu
Dynamic range of the microphone amplifier (A-weighted)	130 dB
Supply voltage (P48, IEC 61938)	48 V ± 4 V
Current consumption (P48, IEC 61938)	3 mA
Matching connector	XLR3F
Weight	625 g
Diameter	60 mm
Length	152 mm

______________________________________________

¹⁾ according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

²⁾ measured as equivalent el. input signal
