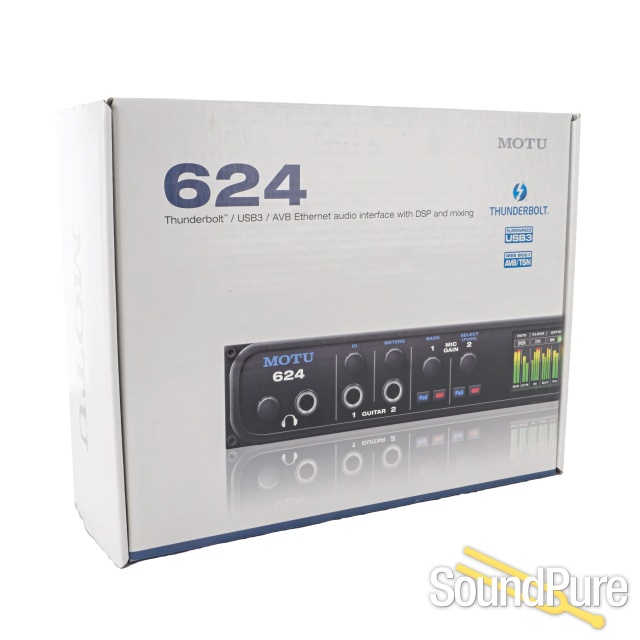

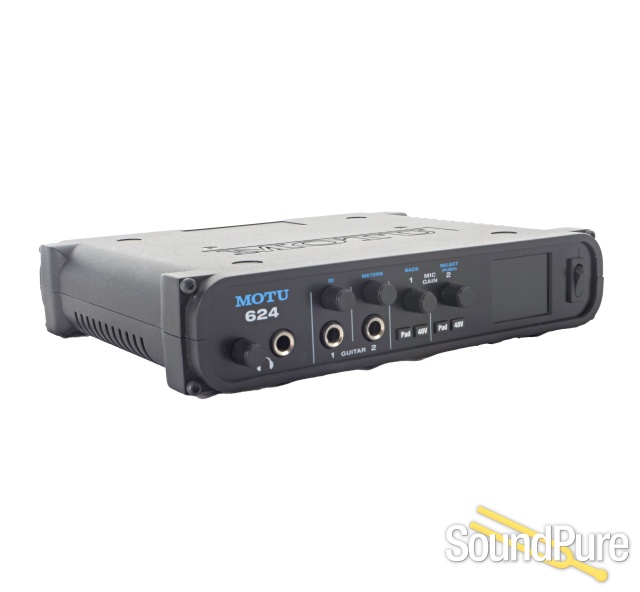

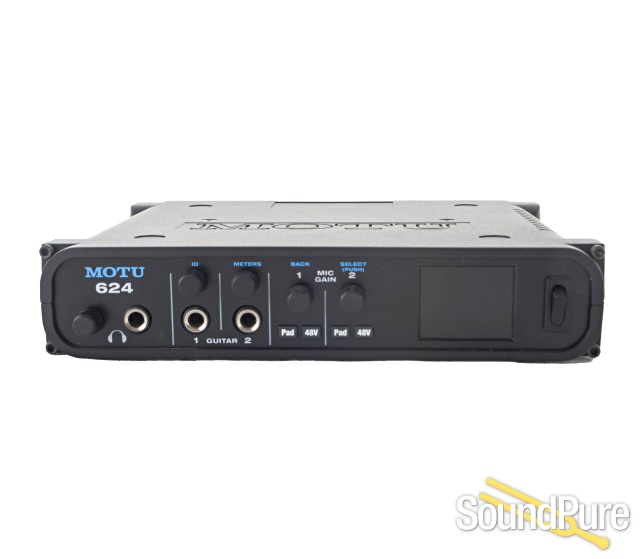

MOTU 624 USB Audio Interface - Used  From MOTU

Superb analog audio quality and high-end converters

Renowned ESS Sabre32 Ultra™ DAC technology delivers 123 dB dynamic range and the same proven, award-winning audio quality as MOTU's flagship 1248.

Ultra-low latency and proven, high-performance MOTU drivers

Round-trip latency (RTL) performance as low as 1.6 ms at 96kHz over Thunderbolt™ with high-performance DAW hosts.

Mobile operation and universal connectivity

Connects to your computer with Thunderbolt™, super-speed USB 3.0 or AVB/TSN Ethernet for up to 256 audio channels (128 in and 128 out). Class-compliant firmware and Industry standard drivers work with any audio apps. Connects to iPad™ with a standard camera connection kit (adapter).

32 simultaneous audio channels

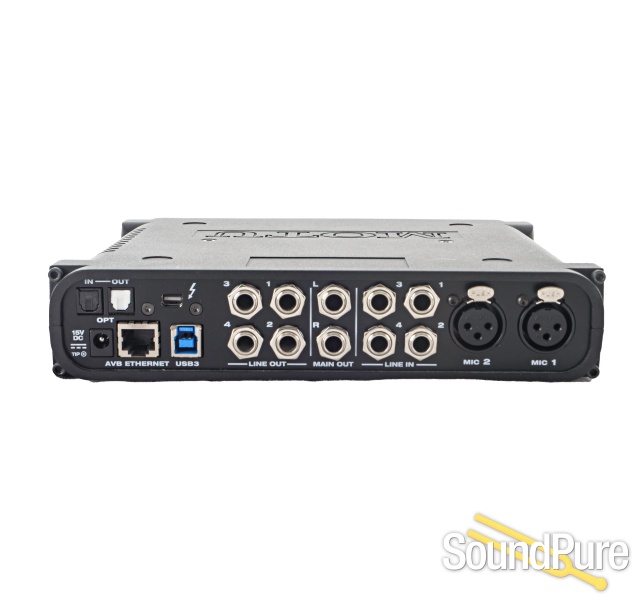

2 mic inputs, 2 guitar inputs, 4 x 6 balanced analog with dedicated main outs, 8-channel ADAT optical and independent phone out for 16 inputs and 16 outputs.

DSP mixing and effects processing

Flexible 48-input digital mixer with 7 stereo aux busses, 3 group sends, access to 64 network inputs, and DSP effects, including reverb, 4-band EQ, gate and compression.

32-bit floating point processing

The 624's mixing and effects DSP engine delivers virtually unlimited headroom and the utmost in sound quality.

Modeled vintage effects processing

Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.

Flexible matrix routing and splitting

Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the audio network.

Stand-alone operation with wireless control

Connect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.

Web app control from any device

Control everything from your favorite web browser on a laptop, tablet and smartphone connected to your local Wi-Fi network.

System expansion

Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB/TSN Switch (sold separately).

AVB/TSN audio networking

Build a network with multiple interfaces and computers using standard AVB/TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.

Optical I/O

Connect outboard digital processors, digital mixers or other gear. 8 channels of ADAT at 44.1/48 kHz, 4 channels of SMUX at 88.2/96 kHz or stereo TOSLink (optical S/PDIF) up to 96 kHz.

Comprehensive metering

The full-color LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.

AudioDesk®

Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.
