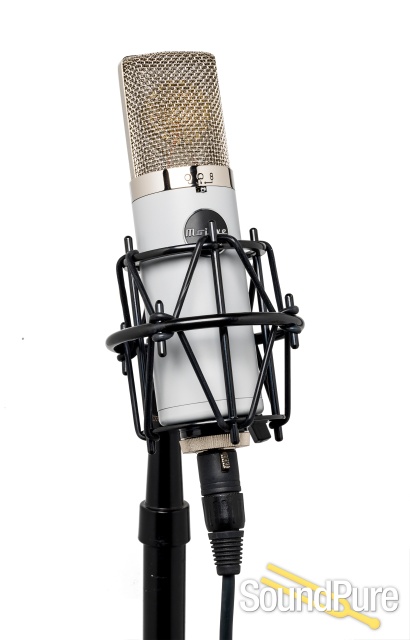

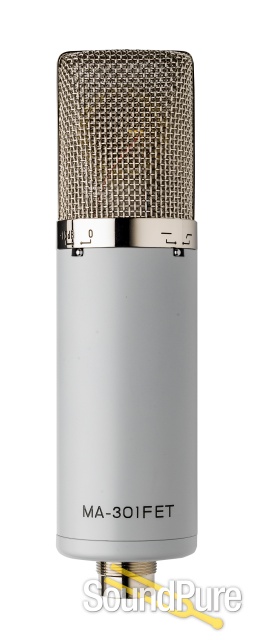

Mojave Audio MA-301 FET Multi-Pattern LDC Microphone  From Mojave Mics

Based upon the popular MA-201fet designed by David Royer, the MA-301fet adds a 3-posistion pickup pattern selector, a15dB pad and a switchable bass roll-off.

Mojave Audio

$999.00

Retail:  $1,100.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $22/mo.

Manufacturer's Description from Mojave Mics

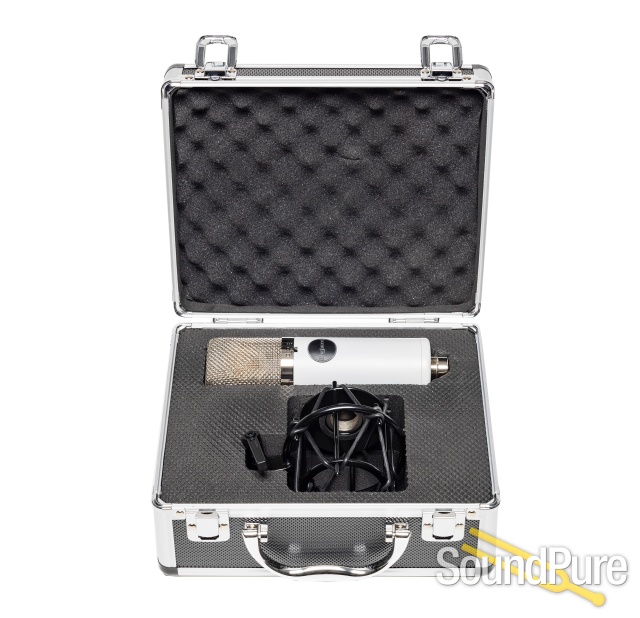

The MA-301fet is a multi-pattern large diaphragm, solid-state condenser microphone. Utilizing a 3-micron gold-sputtered capsule, high-quality Jensen audio transformer, military-grade FET and custom designed low-noise resistors, the MA-301fet performs at a level reminiscent of some of the best-loved classic condenser microphones. Each MA-301fet microphone is carefully tested and evaluated, then packaged in its protective case with a professional grade shockmount.

Features:

  • Multi-pattern: Cardioid, Omnidiectional, Figure-eight (Bi-directional)
  • Switchable 15dB pad
  • Switchable Bass Roll-off
  • Hand-selected 3-micron 1" capsule
  • Jensen audio transformer
  • Military-grade FET
  • Custom designed low-noise resistors
  • Ultra clean signal path

Recommended Applications:

  • Vocals
  • Voice Over and Broadcast
  • High SPL sources, such as Kick Drums and Bass Guitar Amps
  • Electric Guitar
  • Piano
  • Drum Overheads, Drum Rooms
Mojave Audio

About Manufacturer

David Royer started Mojave Audio in 1985 in the garage of his house. The location was Fullerton, California, and Mojave Audio was a one-man, custom pro audio gear shop. David is best known for his ribbon microphone designs with Royer Labs, but he originally started out designing and building vacuum tube microphones, mic pre's and compressors for engineers in the Los Angeles area. Since the mid 1990's, Davidýs custom Mojave products have been used on a number of well-known recordings and have achieved legendary status among a small circle of high-end engineers. With the launching of Mojave Audio, we are able to bring David's non-ribbon designs to the world.

Specifications

TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor - double diaphragm.
DIAPHRAGM: 1-inch diameter, gold sputtered
DIAPHRAGM THICKNESS: 3 microns
POLAR PATTERN: 3 patterns; omni, cardiod and figure-8
FREQUENCY RESPONSE: 20 Hz to 20 KHZ, +/-3 dB at "flat" setting of bass cut switch. Bass cut switch provides 6 dB per octave attenuation below 100 Hertz in "cut" setting
SENSITIVITY: -40.5 dB, re. 1V/pa
MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.
DISTORTION:   < 1% @ 120 dB SPL, < 3% @ 134 dB SPL with pad off
                        < 1% @ 134 dB SPL, < 3% @ 148 dB SPL with pad on
SELF NOISE: 14dB nominal, not to exceed 16dB (A weighted)
PAD: 15 dB
BASS CUT: 6 dB per octave below 100 hertz.
IMPEDANCE: 550 ohms, transformer balanced (Jensen)
POWERING: 48VDC phantom power; current 1.2 mA
DIMENSIONS AND WEIGHT
Carrying case with microphone, shock mount: 10" x 9" x 4.5", 4 lbs.
Microphone: 7 5/8" X 2" (194mm x 51mm), 1 lb. (0.45Kg)
