Mojave Audio MA-300 Multi Pattern Vacuum Tube LDC Microphone  From Mojave Mics

Based upon the widely accepted MA-200 but adding a continuously variable pickup pattern selector, 15dB pad and a switchable bass roll-off, The MA-300 is a multi-pattern large diaphragm, vacuum tube condenser microphone.

Mojave Audio

$1,399.00

Retail:  $1,550.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $31/mo.

Manufacturer's Description from Mojave Mics

The MA-300 is a multi-pattern large diaphragm, vacuum tube condenser microphone. Based upon the widely accepted MA-200 designed by David Royer, the MA-300 adds a continuously variable pickup pattern selector, 15dB pad and a switchable bass roll-off. The MA-300 gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones.

Utilizing hand-selected, double diaphragm 3-micron capsules, high-quality Jensen audio transformers and military-grade JAN 5840 vacuum tubes, the MA-300 performs at a level reminiscent of some of the best loved classic condenser microphones. The MA-300 power supply can be set for 115V and 230V, 50 or 60 Hz, through an internal switch (100V is also available). Each MA-300 microphone, power supply and cable set is burned in for 24 hours, carefully tested and evaluated, then packaged in its protective case-within-a-case.

Features:

  • Remotely controlled, continuously variable polar pattern selector
  • Switchable 15dB pad
  • Switchable Bass Roll-off
  • Hand-selected 3-micron double diaphragm capsule
  • Jensen audio transformer
  • Military grade JAN 5840 vacuum tube
  • Internal switchable power supply voltage
  • Ultra clean signal path

Recommended applications:

Use anywhere you would use an expensive, large diaphragm tube microphone.

  • Vocals
  • Voice Over and Broadcast
  • Acoustic Instruments
  • Piano
  • Drum Overheads, Drum Rooms
  • Orchestral Recording
  • Choral Recording



Mojave Audio

About Manufacturer

David Royer started Mojave Audio in 1985 in the garage of his house. The location was Fullerton, California, and Mojave Audio was a one-man, custom pro audio gear shop. David is best known for his ribbon microphone designs with Royer Labs, but he originally started out designing and building vacuum tube microphones, mic pre's and compressors for engineers in the Los Angeles area. Since the mid 1990's, Davidýs custom Mojave products have been used on a number of well-known recordings and have achieved legendary status among a small circle of high-end engineers. With the launching of Mojave Audio, we are able to bring David's non-ribbon designs to the world.

Specifications

TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor - double diaphragm.

DIAPHRAGM: 1-inch diameter, gold sputtered

DIAPHRAGM THICKNESS : 3-microns

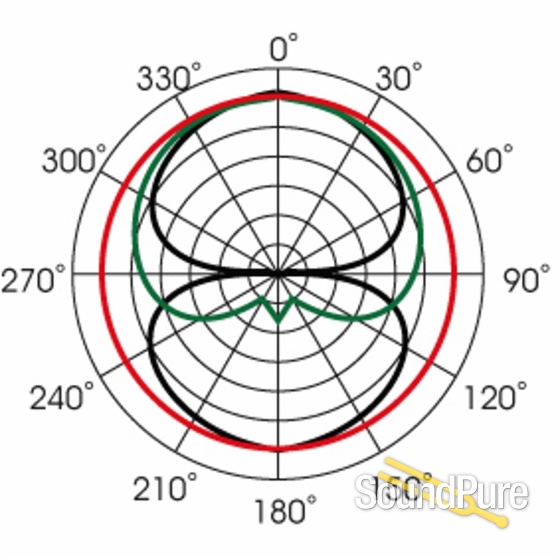

POLAR RESPONSE: Continuously variable from omnidirectional to figure-eight.

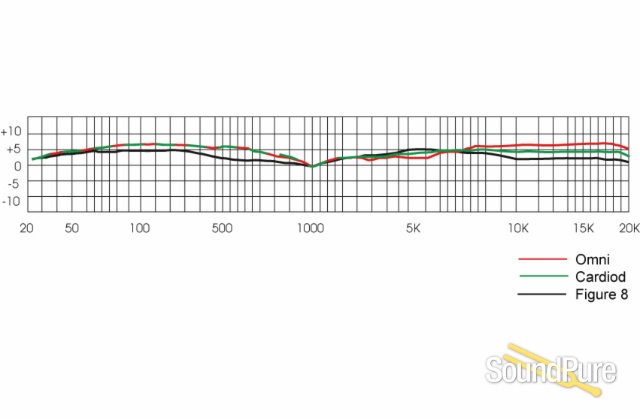

FREQUENCY RESPONSE: 20 Hz to 20 KHZ, +/-3 dB at "flat" setting of bass cut switch. Bass cut switch provides 6 dB per octave attenuation below 100 Hertz in "cut" setting

SENSITIVITY: -37dB re 1V/pa

MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.

DISTORTION:< 1% @ 117 dB SPL , < 3% @ 125 dB SPL with pad off, < 1% @ 132 dB SPL, < 3% @ 140 dB SPL with pad on

SELF NOISE: 14db nominal, not to exceed 16db (A Weighted)

PAD: 15 dB

BASS CUT: 6 dB per octave below 100 hertz.

DIMENSIONS AND WEIGHT

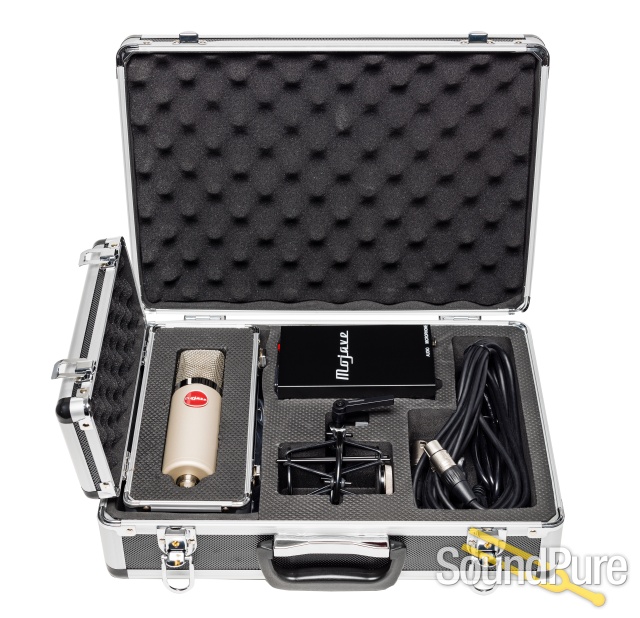

Carrying case with microphone, power supply, shock mount
and cables: 13 lbs.
Microphone: 7 5/8" X 2", 1 lb.

Downloads

Action

Name

Description

MA-300 User Manual
