Manley Gold Reference Multi-Pattern Microphone  From Manley

Reference Multi-Pattern Tube Microphone

Manley Laboratories Inc

$5,499.00

Retail:  $5,500.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

In Stock!
Ships immediately after order processed!
Payments as low as $125/mo.

Want a lower price?
Call or email us!
888-528-9703
sales@soundpure.com

$30,000 Mic Shootout : Bock 407 vs. Telefunken 251 E vs. Manley Reference Gold vs. Telefunken u47

In this shootout video, SoundPure Pro Audio Expert, Travis Hall, compares four of our top-tier microphones in this blind shootout. Email us at proaudio(at)soundpure.com to get hi res files or to get the results! For this shootout, we will be comparing the Bock 47, the Manley Reference Gold, the Telefunken u47, and the Telefunken 251 E. All these mics are available for SoundPure’s "Try Before You Buy" program, so if you want to hear how they sound in your studio with your gear, shoot us an email at ProAudi(at)SoundPure.com. If you like what you hear, you can check out all the gear used in this video at SoundPure.com or give us a call anytime at 919.682.5552. Thanks for watching!

Manufacturer's Description from Manley

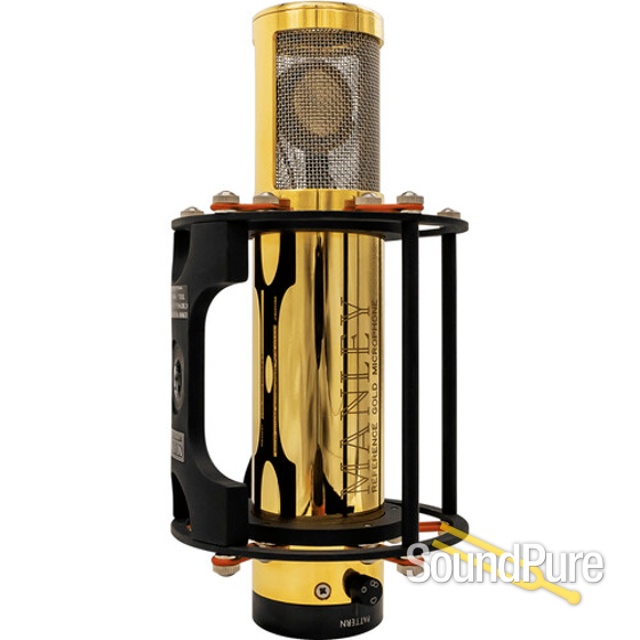

The MANLEY GOLD REFERENCE MULTI-PATTERN MICROPHONES are a statement, quite simply, of the finest microphones that money can buy in the pursuit of truly accurate musical recordings. The Gold Reference Series employ our own design of large capsules (1.25 inch overall, 1 inch diaphragm diameter) which are executed to precise tolerances made possible by modern micro-milling machinery available today in California. The capsule rings and back-plates are milled from solid brass. The gold diaphragm film comes from Germany and is tensioned using proprietary techniques by David Josephson ensuring capsule-to-capsule constancy, combined with the speed, "air", and superb ultra-high frequency response you have only dreamt about.

The all-tube electronics in the MANLEY REFERENCE SERIES MICROPHONES are built around two triodes in cascade forming an entire gain-block. We have recently switched to a dual-triode 12AT7 tube, easily obtainable and replaceable, mounted in a ceramic socket. (We originally used 6072A until it became impossible to find quiet ones out of the NOS dreck left on the market, then we used 12AX7 for awhile.) The output is coupled through a MANLEY output transformer of unparalleled quality and substantial physical size employing nickel laminations with "hum bucking" bi-filar windings, encased in mu-metal. The polar pattern control is continuously variable between the OMNI, CARDIOID, and FIGURE 8 positions vastly increasing this mic’s versatility. The Gold Mics make it possible to exactly tailor the proximity effect to achieve the desired character.

We have chosen a very open weave stainless-steel grille for the capsule window which allows all the highs to reach the capsule unimpaired letting the engineer choose if, when, and how much pop screen is appropriate. As a result, the Reference Gold reaches to the furthest extremes of highs and lows with gorgeous natural acoustic smoothness. Some engineers tell us it sometimes "hears" more than they do! A locking 6-pin XLR connector for the 30 foot power supply cable carries the stringently filtered B+ and regulated heater voltages from the separate dedicated power supply. The audio signal exits the PSU via a traditional 3-pin XLR jack. The microphone body is machined from brass providing excellent shielding properties, polished to a high lustre, then plated with 24 karat gold for an impressive finish, inspiring confidence in artists and producers.

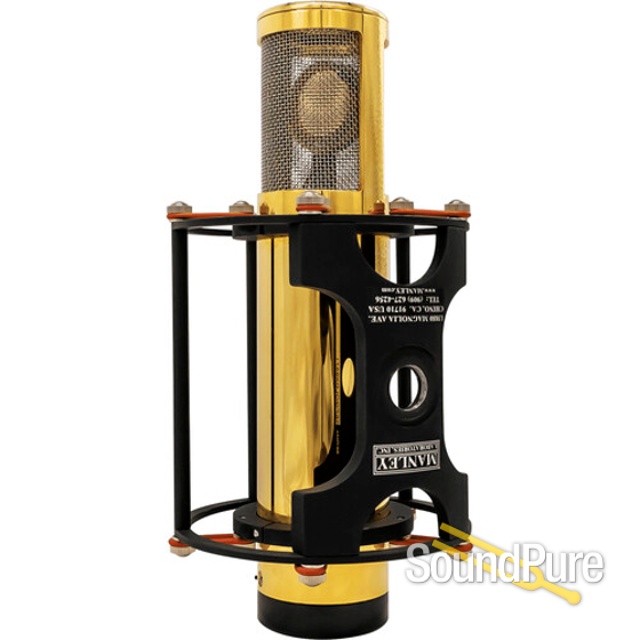

Our proprietary precision suspension system is provided with each REFERENCE MICROPHONE (the capsule itself is mounted onto a neoprene-rubber shock-mount.) Because the entire working "guts" of the microphone may be removed for service in one piece from the housing, it is envisioned that the microphone need not be removed from the suspension. We also provide a very useful swivel of our own design with every REFERENCE MICROPHONE; its T-bar handle and locking clutch action require no tools to adjust. And no MANLEY microphone would be complete without a genuine leather capsule protector which slips (and ties) onto the end of the microphone to protect the capsule when not in use.

Each REFERENCE MICROPHONE is packaged complete in a strong locking carrying-case.
Manley Laboratories Inc

About Manufacturer

The MANLEY brand has been around since the late 1980's. Manley's first commercially available products were upper echelon high-fidelity vacuum tube amplifiers and preamplifiers constructed at the old Vacuum Tube Logic of America factory.

In this history lesson, we'd like to direct special focus on our people at Manley Labs. The people whose years of dedication, service, and expertise bring you people, our customers, these products. It's all about the people...

On January 30, 1989, a 20 year old EveAnna on sabbatical from her studies at Columbia University met the crew and was hired on to the production team. Baltazar Hernandez, already with two years experience, taught her how to solder in those first few days. It was in 1989 that the first Manley professional products were developed, starting with the original 1u Reference 60dB Microphone Preamplifier and soon followed by our Manley Enhanced Pultec and Mid Frequency Equalizers. Baltazar and EveAnna, busy building gear, were soon joined by Saulo and Ramiro. Just next door, Elias was employed by a printed circuit board maker later brought into the Manley Labs fold when in 1993, Manley Laboratories, Inc. became a separate entity apart from VTL. The new Manley Labs factory at 13880 Magnolia Ave. in beautiful and bovine Chino, California was outfitted to house the Manley HiFi and Pro Studio manufacturing as well as the Langevin production lines, our newly acquired machine shop, and printed circuit board facilities.

Specifications

  • All Tube design using 12AT7 dual triode. (Previous versions used 6072 or 12AX7.)
  • -10dB switchable PAD
  • Sensitivity: 17mV/Pa
  • Noise: typically -120 dB EIN
  • Max SPL: 150dB
  • Actual output impedance 200 Ohms
  • Weight: 2.25 lbs (mic)
  • Weight: 2.5 lbs (PSU)
  • Size: 4.5" x 9.7" x 4.5" (mic)
  • Size: 5" x 8.2" x 3.4" (PSU)
  • Shipping weight: 15 lbs
  • Selected matched pairs available
  • Outboard Power Supply is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
  • Operating Mains Voltage changeable with power transformer re-wiring via internal jumpers and fuse value change.
  • Mains Voltage Frequency: 50~ 60Hz
  • Mains Fuse: 250mA @ 100~120V; 125mA @ 220~240V operation
  • Power Consumption: 70mA @ 120V = 8.4 Watts
