Lindell Audio Channel X 500-Series Package  From Lindell

Lindell Audio's 500-series "bundle" featuring the 6X-500 mic pre, 7X-500 FET style compressor, and PEX-500 Pultec style EQ all installed in the 503 Power (power supply / rack).

Lindell Audio

$999.99

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $22/mo.

Manufacturer's Description from Lindell

Celebrating 3 years in the industry and staggering sale of 5000pc 500 Series Modules, we’re offering a once in a lifetime deal of our multi-award winning 500 series modules.

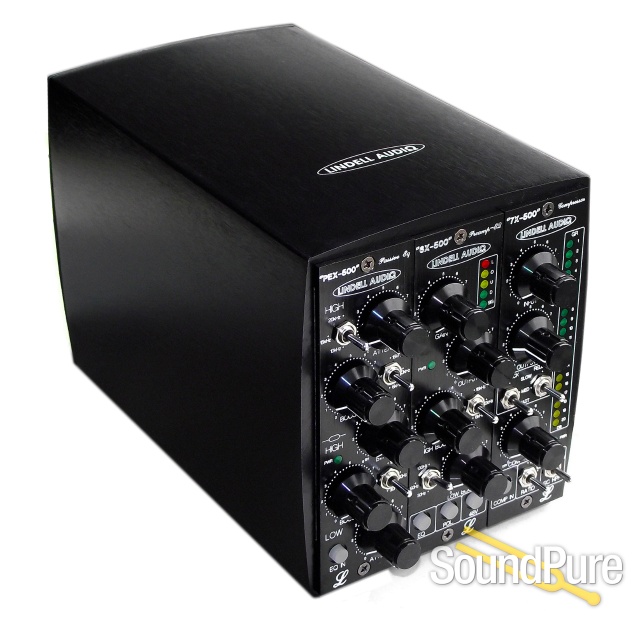

The Channel X includes the 6X-500 Microphone Pre-Amplifier-Mini-Pultec along with the much loved 7X-500 FET Compressor and PEX-500 Pultec Styled EQ.

These 3 ”Analogue Classics” come housed in a slick black brushed aluminium rack case and travel bag for maximum portability.

The Channel X uses balanced input/output transformers and our Hybrid op-amps, which provides a massive sound, full of rich character. The perfect ”Front End” Recording Channel to bring life to your digital audio interface.

Boasting no less than 5 transformers and 5 Op-Amps, the Channel X is packed too bursting with colour and tonal control of your Vocals and Instruments.

If you are looking for sweet gain, along with the punchiest lows and creamiest highs, then the Channel X is what you are looking for.

In summary, the Channel X offers a chance to experience the true analogue sound of classic designs in an easy to use modern portable design.

Lindell Audio

About Manufacturer

Lindell has made its name as one of the highest quality budget friendly pro audio lines with a specialization for 500-series modules.

Specifications

6X-500 Microphone Pre-Amplifier

  • Transformer coupled Balanced inputs and Balanced Outputs
  • Up to 65db of Gain
  • Passive Pultec Equalizer. Inductor.
  • 3 Step Switched Eq Low Freq Boost 30Hz, 60Hz, 100Hz
  • 3 Step Switched Eq High Freq Bosst 6kHz, 10kHz, 16kHz
  • Polarity Reverse
  • 48V Phantom Power
  • 5-LED VU Meters




7X-500 F.E.T Style Compressor

  • Variable Mix Control For Precise Parallel Compression
  • 3 Step Switched Attack Times
  • 3 Step Switched Release Times
  • 3 Step Switched High Pass Side Chain Filter. Off, 100Hz, 300Hz
  • 3 Step Switched Ratio 4:1, 12:1, 100:1 (all in)
  • True Hardware Bypass
  • Transformers Balanced Output
  • 20-LED Gain Reduction Meter




PEX-500 Equalizer

  • Transformer coupled Balanced inputs and Balanced Outputs
  • Passive Pultec Styled Equalizer. Inductor
  • 3 Step Switched Eq Low Freq Boost 30Hz, 60Hz, 100Hz +/-10%
  • 3 Step Switched Eq High Freq Boost 6kHz, 10kHz, 16kHz +/-10%
  • 3 Step Switched Eq High Freq Attenuation 10kHz, 15kHz, 20kHz +/-10%
  • True Hardwire Eq Bypass
  • Gold Plated PCB Terminals



*Check individual product user manual downloads for more specifications.

Downloads

Action

Name

Description

6X-500 User Manual

User Manual

7X-500 User Manual

User Manual

PEX-500 User Manual

User Manual

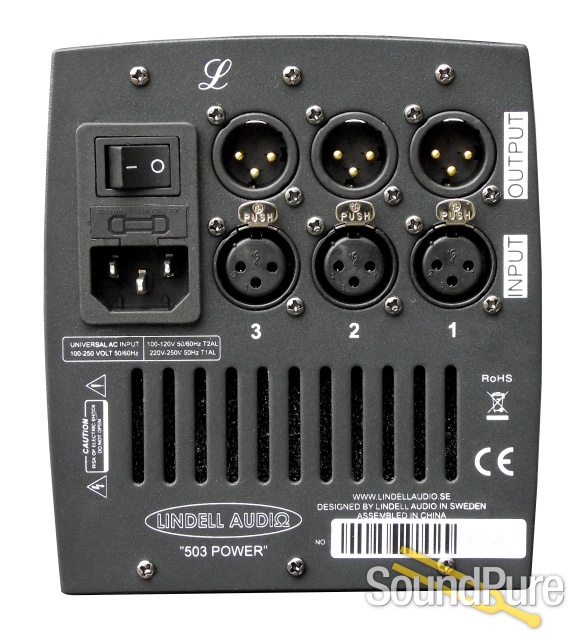

503 Power User Manual

User Manual
