Lindell Audio 506 Power 500-Series Power Supply / Rack  From Lindell

6-Slot 500-series rack / power supply

Lindell Audio


"Experience the Difference"

Sound Pure's 3-Year Warranty

Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $35/mo.

Manufacturer's Description from Lindell

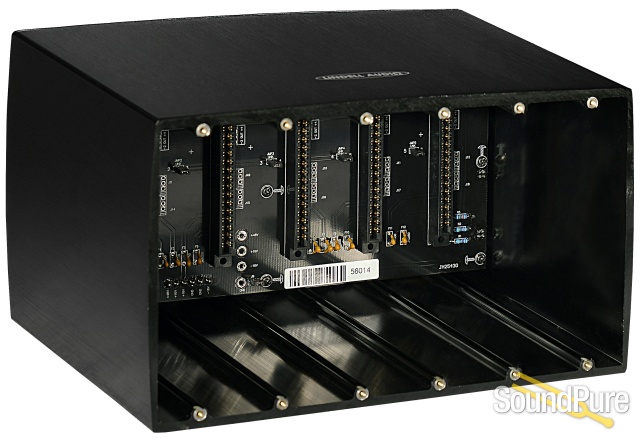

Lindell Audio ”506 Power” is a 6-slot 500 Series compatible Power Supply.
It features 2.4A of Massive P.O.W.E.R!
It’s a perfect match for our 500 Series modules: 6X-500, 7X-500 and PEX-500.

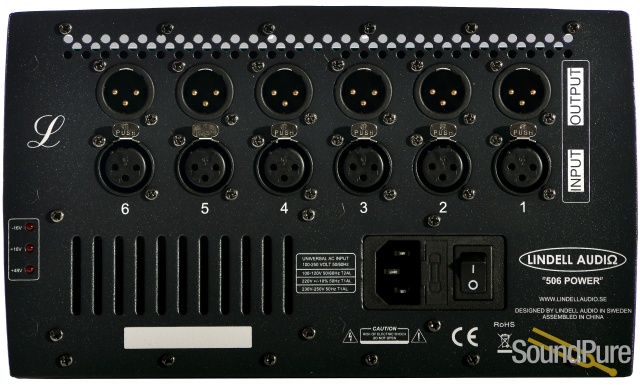

The ”506 Power” features xlr inputs and outputs, it’s a no frills, super easy to use product! Get started with 500 Series and Lindell ”506 Power” today!
Lindell Audio

About Manufacturer

Lindell has made its name as one of the highest quality budget friendly pro audio lines with a specialization for 500-series modules.


  • 6 Slots
  • 400mA of power per slot
  • +/-16V
  • 48V Phantom Power
  • Gold plated XLR inputs and outputs
  • Built in no noise Universal Power Supply: 90-250V
  • Overload protection
  • Short circuit protection
  • Power rail led indication
  • Aluminum cabinet
  • Lightweight
  • Steel M3 threads
  • Comes with a neoprene gig bag



Manufacturer's Disclaimer:

We do not guarantee that ALL 500 series modules on the market works in the 506 Power!

A list will be created here with tested modules:

  • Lindell 6X500, 7X500, PEX500
  • API 550B, 550A, 560, 512
  • Burgin McDaniel Komit
  • Elysia Xpressor,  Xfilter
  • Moog Ladder
  • Burl b1
  • BLA Auteur
  • Maag Preq4
  • Chandler lil’ devil
  • Heritage Audio 1073 500
  • BAE 312
  • Safe Sound Audio P501, Stereo Toolbox
  • Radial Komit,  JDX,  PowerPre
  • Daking MP 500, Comp 500
  • Purple Biz MK, TAV, Action, Pants
  • Warm Audio WA12
  • XQP 541 Comp,  531 De-Esser,  535 Bax EQ,  545 Disrupter
  • Phoenix Audio DRS EQ,  DRS1R
  • JDK Audio V10,  V12,  V14
  • Electrodyne 501
  • Golden Age EQ573
  • Great River Harrison 32EQ,  PWM-501
  • Roll Music Tubule
  • Kush Electra
  • Chameleon Labs 581
  • Tonelux MP5A,  EQ5P
  • Serpent Audio SB4001
  • LaChapell 583
  • Triton Audio Tube-Fet
  • Bettermaker 502P
  • SSL G Comp 500
  • Al.So (Alternate Soundings) MP5
  • Al.So (Alternate Soundings) EQ5
  • Al.So (Alternate Soundings) KOMPS
  • Al.So (Alternate Soundings) MP1
  • Al.So (Alternate Soundings) MP2 MK2
  • Alta Moda Hippo
  • Alta Moda AM-25
  • BURL Audio B1D
  • Buzz Audio Essence
  • Buzz Audio Potion
  • Buzz Audio Tonic
  • Buzz Audio Elixir
  • IGS Audio Alter 500
  • IGS Audio Rubber Bands 500
  • IGS Audio Vanad 500
  • Inward Connections Vogad
  • Inward Connections The Brute
  • Inward Connections Nitro
  • Inward Connections Magnum & Magnum VU
  • Looptrotter SATurAMP
  • Shadow Hills Industries Mono GAMA
  • Shadow Hills Industries Mono Optograph
  • Shadow Hills Industries Dual Vandergraph
  • RND Portico 511
  • RETRO Doublewide





506 Power User Manual

User Manual
