Item selected is sold (details below). Related products available now:
JDK (Arsenal) Audio R22 Stereo Compressor - Used From JDK Audio

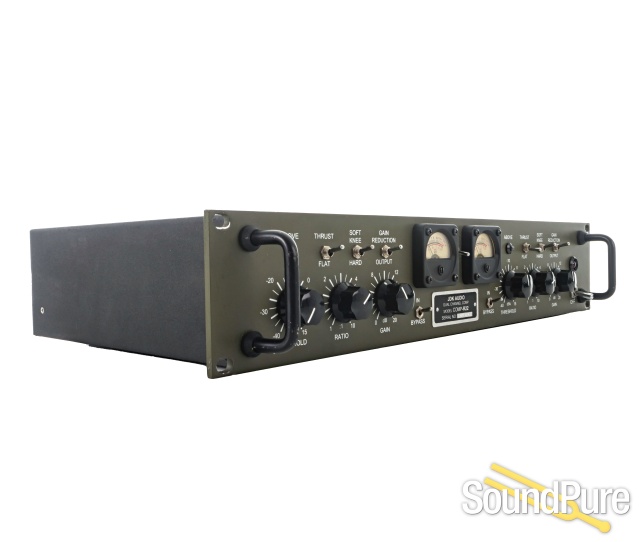

Dual Channel Compressor. In Used, Very Good Condition. Left Handle on front of chassis has a slight inward bend, but unit functions perfectly.
"Gone, Baby, Gone"
This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.
We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.
Want to know if one lands?
Notify MeWant to discuss what's coming?
What We Think
In Used, Very Good Condition. Left Handle on front of chassis has a slight inward bend, but unit functions perfectly.
Manufacturer's Description from JDK Audio
The JDK Audio R22 dual channel compressor features two channels of API's patented award winning compressor circuit in a rack mount unit with internal power supply. This is the same compressor circuit originally designed into all ATI Paragon mixing consoles. Each channel includes the patented 'THRUST' switch to protect the sensitive high frequency content of the audio signal even under the most vigorous of compression ratios. The perfect companion to your R20 mic-preamp and R24 EQ, the R22 compressor provides comprehensive easy-to-use control of the audio signal with custom VU metering of both output and gain reduction. The two channels can even be linked for use as a stereo compressor with true RMS power summing of the left and right signals.
Features:
- Patented THRUST circuit
- Variable Threshold, Ratio, and Make-up Gain controls
- Switchable metering of output level and gain reduction
- Above threshold LED indication
- Switchable Hard or Soft Knee compression
- Linkable for stereo operation with true RMS power summing

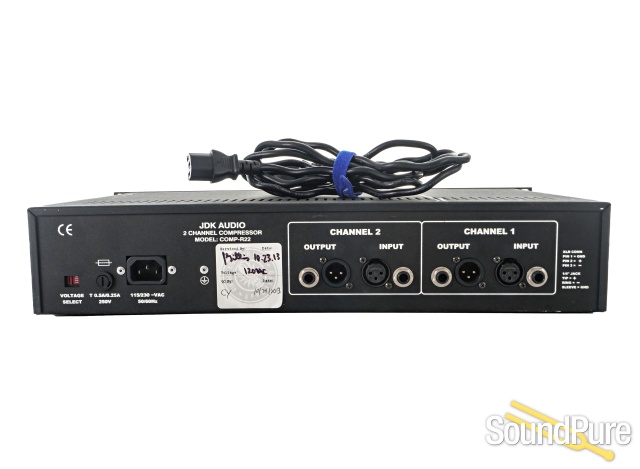

Fully balanced XLR and 1/4" inputs and outputs
About Manufacturer
JDK Audio is an entirely new brand developed and engineered by API, a company that has been around since the late 1960's. Originally called Arsenal Audio, they have permanently changed the name of this fabulous new range to JDK. And, while API had a stellar range of excellent audio products that are benchmarks of the recording world, we decided to embark on a product line that would allow our engineering team to develop some new ideas that have been floating around our engineering table for years. After all- we're a Technology company - its what drives us - its what inspires us. And some of the new technology available to us is pretty cool stuff - it just doesn't fit anywhere in the API product mix. So JDK audio was born out of desire to expand the creative options we have available at API - no boundaries - no restrictions
Specifications
Inputs: Balanced XLR and 1/4" jack (1/4" normalled priority)
Outputs: Balanced XLR and 1/4" parallel jacks
Power Consumption, Quiescent: 7.81 Watts
Input Impedance: 15K Ohms Balanced
Bandwidth: +/- 0.5 dB, 20 Hz - 50 kHz
THD+N @ 1 kHz, +4 dBu: <0.005%
Maximum Level: +19 dBu
Signal-to-Noise Ratio: -88 dBu (comp in)
-92 dBu (bypass)
-106 dB
Crosstalk: <84 dB @ 20 kHz
Stereo Link: True RMS Power Summing
Meter: -20 to +3 VU Output Level, 0 to -15 dB Gain Reduction, switchable
Compressor Controls
Threshold Range: -40 dBu to +15 dBu
Ratio Range: 1:1 to 10:1
Makeup Gain Range: 0 dB to +20 dB
Hard or Soft Knee switchable
Flat or Thrust side chain filter switchable
Attack Time: Program and Control Adaptive, 10mSec to 40mSec
Release Time: Program and Control Adaptive, 30mSec to 400mSec
Current: 93 mA, 10.8 VoltAmps
Dimensions
Fits: 2U EIA 19" Rack
Size: 19" X 3.5" X 12" Deep
Size (Boxed for Shipping): 21" X 9" X 15"
Actual Weight: 10.23 lbs
Shipping Weight: 13.74 lbs
(Specifications subject to change without notice)
