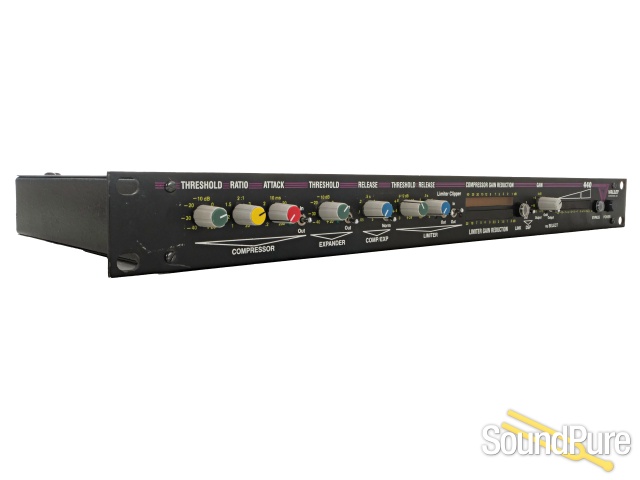

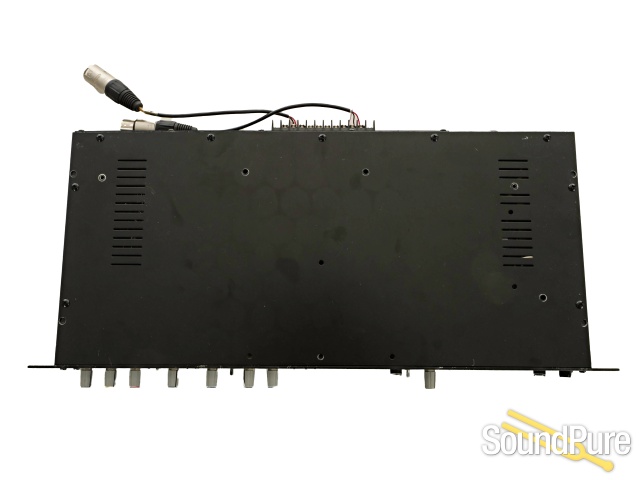

Valley People 440 VCA Dynamics Processor - Used  From Valley People

The Valley People Model 440 is a comprehensive, single-channel dynamic range processor that combines a high-performance VCA compressor, an interactive expander, an ultra-fast peak limiter with safety clipper, and a proprietary Dynamic Sibilance Processor (DSP)—all controlling a common Voltage-Controlled Amplifier (VCA) block. Engineered by audio pioneer Paul Buff, the Model 440 provides unprecedented control over complex dynamics, operating simultaneously across multiple processing modes without phase or release artifacts.

At the core of the Model 440 is its versatile compressor section featuring continuously variable threshold, ratio, attack time, and release time. Integrated directly into the compression circuitry is an interactive expander designed to eliminate noise pump-up during gain recovery. The unit’s Gain Recovery Computer automatically adjusts nominal output levels across varying threshold and ratio settings. For streamlined operation, an Auto mode optimizes attack, ratio, and release parameters dynamically relative to the input signal, allowing single-knob threshold control.

For peak protection, the 440 includes an independent, ultra-fast limiter exhibiting attack times of 1 µs/dB or less, paired with a fixed 60:1 ratio and adjustable release. An integrated safety clipper automatically tracks the limiter threshold to instantly stop extreme high-frequency transients that bypass standard limiting circuits. Rounding out the processing chain, the Dynamic Sibilance Processor (DSP) analyzes sibilant waveforms to eliminate objectionable high-frequency peaks (such as vocal whistles) without applying static equalization or altering the overall tonal balance of the program material.

Housed in a rugged 1U rackmount steel chassis, the Model 440 features actively balanced inputs and outputs capable of handling up to +24 dBu signal levels, making it a powerful, surgical dynamic tool for tracking, mixing, and broadcast applications.

Key Features

• 4-in-1 Dynamics Processing Architecture: Combines compressor, interactive expander, peak limiter with clipper, and dynamic de-esser into a single VCA-driven signal path.

• Ultra-Fast Peak Limiter & Safety Clipper: Features a sub-microsecond attack time (1 µs/dB) with a fixed 60:1 ratio and an integrated tracking peak clipper.

• Interactive Compressor/Expander: Continuously variable ratio, threshold, attack, and release with integrated noise-reduction expansion to prevent noise pump-up during gain recovery.

• Dynamic Sibilance Processor (DSP): Targeted de-essing circuit that cancels sibilant peaks without introducing phase distortion or dulling the overall frequency response.

• Gain Recovery Computer & Auto Mode: Program-dependent attack, release, and level compensation for fast, natural level management.

• Stereo Linking & Active Balancing: Features stereo link capabilities, transformerless active balanced I/O with high common-mode rejection, and full +24 dBu headroom handling.
