Sound Pure's Take
From IGS Audio
The Legacy

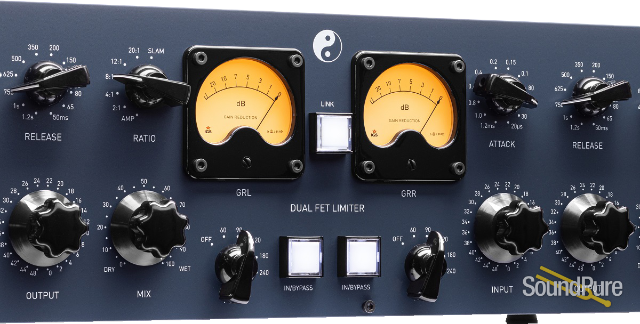

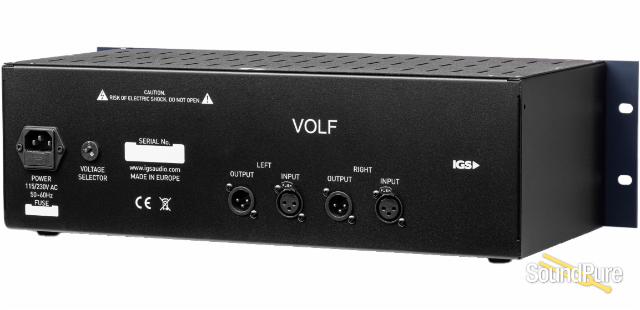

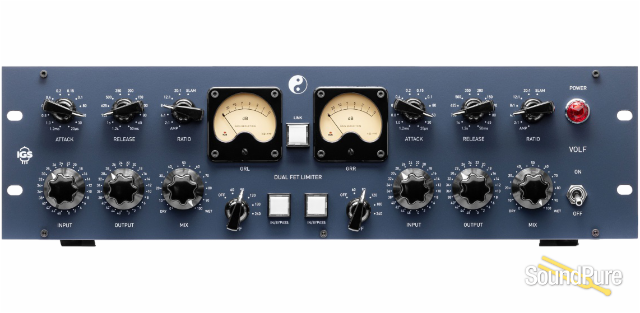

VOLF is a stereo audio compressor inspired by the legendary UREI 1176, renowned for its fast attack times and transparent compression. Designed to handle bass frequencies with precision, VOLF captures the punch and warmth of the original 1176, while offering modern stereo capabilities, making it the perfect tool for both studio and live sound applications. With its intuitive controls and robust build, VOLF ensures that your low-end dynamics are smooth and controlled, without sacrificing tonal richness.
Key features include:
- 24-step, Swiss-made ELMA switches on Input, Output, and Mixer for precise control.
- Fully stepped controls on all parameters, ensuring consistent and repeatable adjustments.
- Switchable input mode between transformer-balanced or IC-balanced inputs for greater tonal flexibility*.
- AMP mode, which bypasses compression, allowing the signal to pass through the amplifier with 45dB.
- Ultra-low noise discrete IGS 2520 Op-Amps in both amplification stages for pristine sound and minimal noise.
- Link option for stereo image balance, ensuring optimal stereo imaging and coherence in a mix.
- A Class A circuit, providing smooth, transparent processing ideal for professional audio environments.
- UTM Industry input and output transformers
- Linear power supply
With its blend of vintage compression characteristics and modern innovations, VOLF offers a versatile solution for any engineer seeking both classic tone and advanced control, making it a top choice for shaping bass dynamics with accuracy and style.
- Device type
- Fet CompressorBF245A, matched quad transistor
- Basic features
- All stepped manipulatorsYes, 24-step ELMA switches
- Sidechain HPF240, 180, 120, 90, 60, Off
- Input & Output
- Input Impedance (balanced)10k Ohm IC/UTM Industry switchable transformers
- Output Impedance (balanced)600 Ohm, UTM Industry transformers
- Levels
- Operating Level+4dBu
- Max input level+18dBu
- Max output level+18dBu
- Max Gain Reduction30 dB
- Max. gain45 dB
- Noise Level110dB A
- Time constants
- Attack20us – 1.2 ms
- Release0.05 - 1,2 s
- Bandwidth
- Frequency response8 Hz - 22 kHz +/- 0.2dB
- Distortion (@ 20 Hz - 20 kHz)
- Signal to Noise Ratio>84dB
- THD0.12 %
- THD+N0.19 %
- Crosstalk80dB
- Power
- Power consumption20 Wats
- Power supplyInternal
- Packing box
- Dimensions70 x 50 x 30 cm
- Shipping weight8 kg
