Used · Very Good

IGS Audio ONE Leveling Amplifier - Used — image 1

IGS Audio ONE Leveling Amplifier - Used — image 2

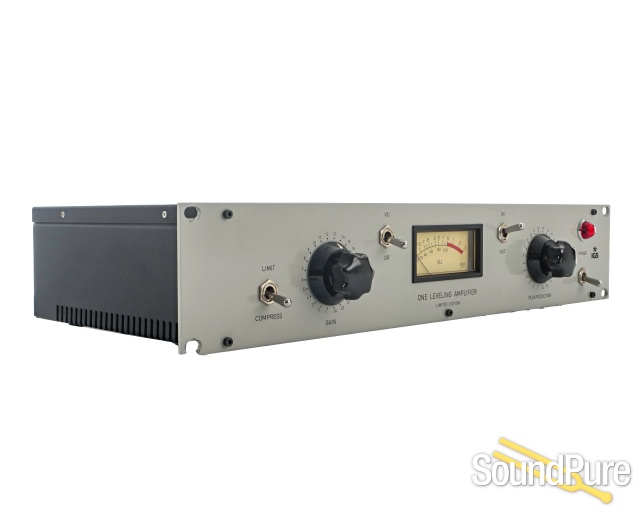

IGS Audio ONE Leveling Amplifier - Used

The IGS ONE LA is an optical tube compressor which utilizes photo-compression via a T4B photo-cell. Used - Very Good Condition!

Sold — contact us for a similar item.

Talk to an Expert 888-528-9703

Have a question about this item? Email us →

Try Before You Buy — 48-hour at-home audition. Love it, or send it back. Program details →

Talk to an Expert — Sound Pure engineers, not phone-bank reps
Sound Pure Financing — 0% APR options via Affirm

From IGS Audio

The IGS ONE LA is a photo-optical compressor, referring to the legendary solution of United Recording Electronics Industries. It is an input and output transformer balanced, full tube device. The input of the system is worked with a Sowter 4383 transformer, the output with Edcor 15k/600. Two 6N2P-EW 6N1P-EW dual-triodes are installed on the audio circuit, while the compression circuit isequipped with the 6N2P-EW triode and the 6AQ5 pentode, which control the work of the T4BX photocell. On the front panel you can adjust the input sensitivity (GAIN) and compression threshold (PEAK REDUCTION). Additionally, you can select the operating mode between Compress and Limit. You can also set the meter to VU or Gain Reduction.

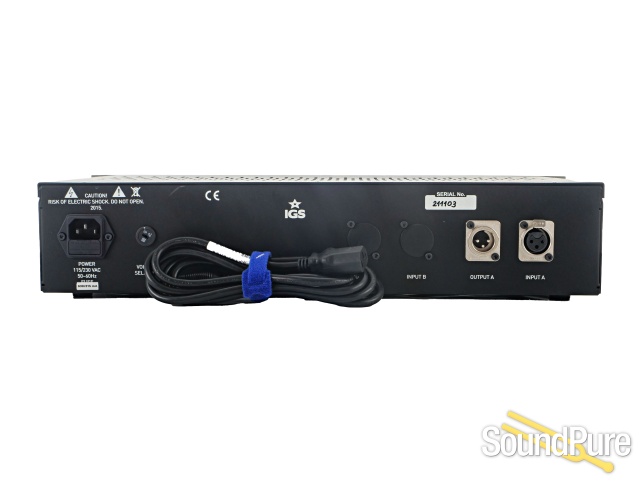

Inside the device are 4 tubes with 245V anode voltage. The system is mounted on a PCB, which results in short connections inside the device, improves the bandwidth and stability. On the rear panel XLR connectors have been installed. The whole device is designed to work with a symmetrical 4dBu signal.

It is known that in the case of ONE LA the nature of the device depends on the T4B photo-cell. The original solution used the TELETRONIX electroluminescent panel, which illuminated the photo resistors. The idea of photocompression originating then is still cultivated today. IGS Audio has developed its own photocell equivalent to T4B called T4BX. The use of carefully selected components in the production of photocell, and their individual measurement and matching, result in completely repetitive sound qualities of each device.

+4dB operating level,

Original Teletronix '68 audio path,

JJ 12AX7 input and RFT NOS 12AU7 output tubes,

Sowter input transformer,

Edcor output transformer,

T4B replaceable photocell (for special order),

Input impedance: 10k Ohm,
Maximum output: +21dBU,
Amplification: 36dB,
Gain reduction: 36dB,
Frequency response: 20Hz - 20kHz, +/-0.1 dB,

Potentiometer manipulators,

Hard wired bypass,

Compressor/Limiter mode,

Large VU meter,

3 year warranty
