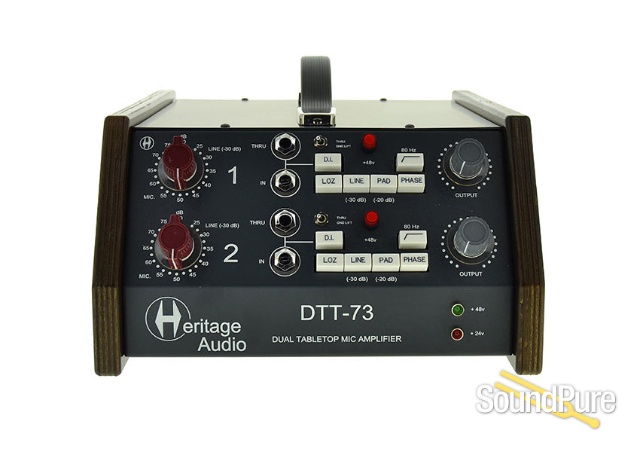

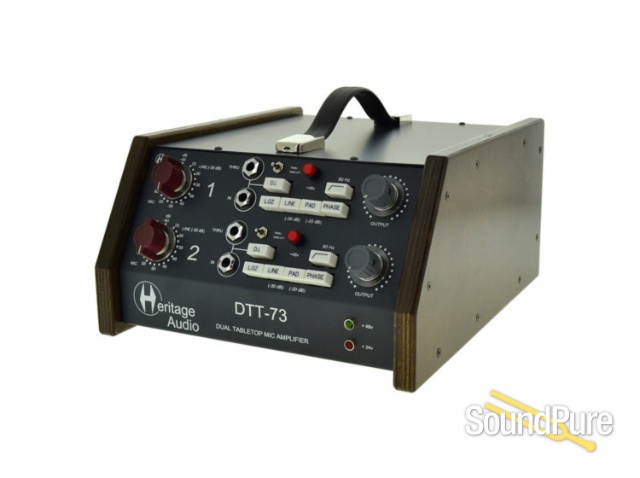

Heritage Audio DTT-73 Tabletop Mic Preamp  From Heritage

The DTT-73 gives portability to the classic 1073 sound!

Heritage Audio

$2,399.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
Contact us for up-to-date delivery estimate.
Payments as low as $54/mo.

Manufacturer's Description from Heritage

Standing for DUAL TABLETOP 73, it is in essence a reformatted DMA73.The DTT-73 widens the range of application to On Stage use, portable systems, hotel rooms, On Location recordings, etc.



Now musicians are able to give 73-driven line levels to FOH engineers, using the front panel DI inputs. While on the road they are able to record at the same studio quality level from hotel rooms, etc. Stage microphones can be brought up to line level without using long cable runs. These are just some of the possibilities.



Special care has been taken with the internal worldwide power supply, which has been custom engineered to operate close to audio transformers with no noise induced.



New to the range of tabletop units is the implementation of DI THRU jacks for simultaneous use of instrument amplifiers. A ground lift switch prevents any ground loops introducing hum in the audio when using these.



The combination of wood and RAF blue grey steel makes the tabletop units aesthetically stand out in any professional recording environment and will bring your semi pro facility the touch of class you're looking for.

Heritage Audio

About Manufacturer

Heritage Audio is one of the few premier manufacturers of Neve preamp and compressor clones. With their established team of veteran designers, they claim to offer the most historically accurate clones of the fabled Neve units.

Specifications

Microphone input impedance: HI, 1200 Ohm minimum, LO, 300 Ohm minimum. Higher gain positions gradually have greater impedances, optimum for lo gain ribbon mics. Input is transformer balanced and floating.

Line input impedance: 10K Ohms bridging, transformer balanced and floating.

DI input impedance: Greater than 2 Megohms, unbalanced.

Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 ohms (factory terminated).

Maximum output: Greater than +26dBu into 600 ohms.

THD: Less than 0.025% at 1 Khz, less than 0.05% at 100Hz.

Frequency response: 20Hz ( +0.3dB ) to 20Khz (-0.2dB)

Maximum gain: Slightly greater than 80dB

Noise: Less than -100dBu.
