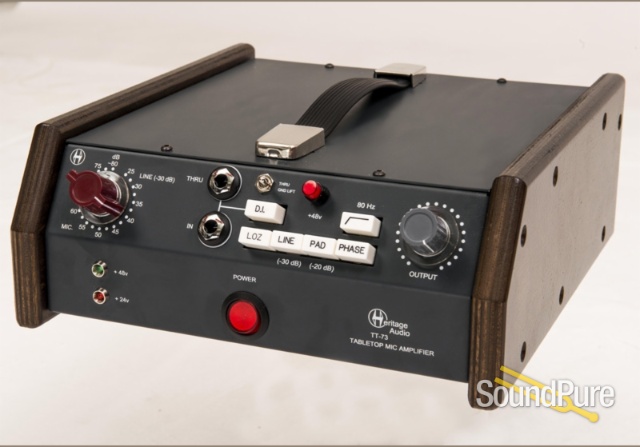

Heritage Audio TT-73 Tabletop Mic Preamp  From Heritage

The TT-73 gives portability to the classic 1073 sound!

Heritage Audio

$1,299.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
Contact us for up-to-date delivery estimate.
Payments as low as $29/mo.

Manufacturer's Description from Heritage

Standing for TABLETOP 73, it is in essence a reformatted single channel DMA73.The TT-73 brings a new flavor to the Heritage Audio line of outboard gear, widening the range of application to On Stage use, portable systems, hotel rooms, On Location recordings, etc.

Now musicians are able to give 1073-driven line levels to FOH engineers, using the front panel DI inputs. While on the road they are able to record at the same studio quality level from hotel rooms, etc. Stage microphones can be brought up to line level without using long cable runs. These are just some of the possibilities.

Special care has been taken with the internal worldwide power supply and no noise has been introduced.

New to the range of tabletop units is the implementation of DI THRU jacks for simultaneous use of instrument amplifiers. A ground lift switch prevents any ground loops introducing hum in the audio when using these.

The combination of wood and RAF blue grey steel makes the tabletop units aesthetically stand out in any professional recording environment and will bring your semi pro facility the touch of class you´re looking for.

  • 80dB Class A Microphone preamplifier, HI-LO selectable minimum input impedance, balanced and floating. High gain positions show a higher impedance, ideal for old ribbon mics.
  • 50Db Class A Line preamplifier, bridging input impedance, balanced and floating.
  • All discrete Class A Ultra High Impedance J-Fet Direct Input on a high quality Neutrik Jack. The DI circuit is ahead of the Mic Input transformer, so the transformer is on when in DI mode.
  • DI THRU jack with ground lift switch for simultaneous hum free use of instrument amplifiers.
  • Class A single ended, 2N3055 driven, high headroom output stage.
  • Individual Neutrik gold plated XLR connectors for microphone and line inputs.
  • Gold Plated Neutrik XLR output.
  • PAD: 20dB Mic input attenuation ahead of the input transformer to avoid overloading it.
  • HI PASS FILTER: Active all discrete Class A 3rd order Bessel, 80Hz Hi Pass Filter. 18dB/octave slope.
  • OUTPUT control to allow overloading of the preamp.
  • Internal no noise PSU, accepting worldwide voltages from 100v to 240v
  • Carnhill Input and Output transformers.
  • 3 gain stage, genuine B283 gain card modular construction.
  • Marconi styleknobs and vintagestyleengravedpushbuttons.
Heritage Audio

About Manufacturer

Heritage Audio is one of the few premier manufacturers of Neve preamp and compressor clones. With their established team of veteran designers, they claim to offer the most historically accurate clones of the fabled Neve units.

Specifications

  • Microphone input impedance: HI, 1200 Ohm minimum, LO, 300 Ohm minimum. Higher gain positions gradually have greater impedances, optimum for lo gain ribbon mics. Input is Carnhill transformer balanced and floating.
  • Line input impedance: 10K Ohms bridging, Carnhill transformer balanced and floating.
  • DI input impedance: Greater than 2 Megohms, unbalanced.
  • Output impedance: Less than 75 Ohms, Carnhill transformer balanced and floating, to drive a load of 600 ohms (factory terminated).
  • Maximum output: Greater than +26dBm into 600 ohms.
  • THD: Less than 0.025% at 1 Khz, less than 0.05% at 100Hz.
  • Frequency response: 20Hz ( +0.3dB ) to 20Khz (-0.2dB)
  • Maximum gain: Slightly greater than 80dB
  • Noise: Less than -100dBm.
