Heritage Audio Súper 8 Multichannel Preamp  From Heritage

The SUPER 8 makes professionally capturing 8 signals of Class A, vintage, vibey audio and converting them for seamless transfer to your DAW as easy as possible.

Heritage Audio

$3,999.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $90/mo.

HERITAGE AUDIO Súper 8 "Connections & Features"

  • Signal Chain
    • Heritage Audio Súper 8 Multichannel Preamp

Manufacturer's Description from Heritage

Súper 8

An all-in-one design to professionally capture and record up to 8 signals. Never before has it been so easy to get that vibey, classic sound and instantly have it digitized and sent on to a DAW. With this extremely portable unit you can take your rig anywhere while assuring the best results possible. With the possibilities of capturing MIC, LINE or INSTRUMENT level signals all the bases are covered. The built in analog to digital converter uses the latest technology to offer pristine conversion at a user selectable sampling frequency. The Súper 8 can either be the Master or Slaved to another unit as there is a BNC IN & OUT for reliable syncing. It even offeres an alternate route to the converter via a DB25 connector to expand the unit´s flexibility.



Description:

The Súper 8 offers a fantastic, compact solution for when several high quality preamps and top class conversion is needed.

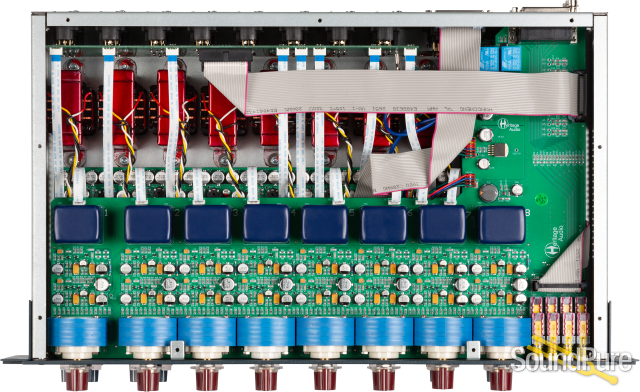

Using our Class A 73 Preamp building experience we were able to fit 8 MIC/Line preamps into a sturdy 2 unit rack. All 8 are faithful to our 3 stage all Class A design with Carnhill transformers fitted at the input and the output. The first two channels also include our high quality JFET DI as well as a fully sweepable Lo-cut filter. All 8 channels include switches for 48V, Line, Lo-cut(-3dB at 82Hz) and Phase.

There is built in analog to digital conversion available on 3 different digital formats: ADAT, AES/EBU and SPDIF with BNC connectors for reliable word clock syncing. Selectable sampling frequencies from 44.1kH to 192kH. Not only can the MIC/Line Preamp outputs be directly sent to the DAC, but there also exists the possibility of choosing an alternative input, per channel, for the digital conversion, making this an extremely flexible unit. This can really come in handy if you need to output the preamps to an EQ or compressor before returning them for digital conversion.



Features:

  • 8 Class A 73 Style Preamps with 3 Stage design offering up to 80dB of Gain.
  • Exclusively designed Carnhill Transformers on the Input and Output.
  • High quality JFET D.I. before the Input Transformer on first 2 Channels.
  • Sweepable LoCut filter on first 2 Channels.
  • Premium 24Bit/192kHz 8 Channel ADC.
  • ADAT, SPDIF, AES/EBU Digital Output options.

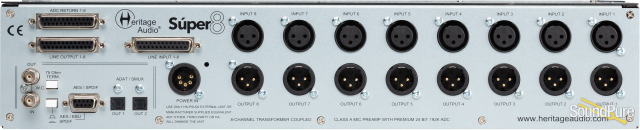

  • Analog Inputs & Outputs on Gold Plated XLRs as well as DB25 Connectors.
  • Alternate Input path to ADC available.
Heritage Audio

About Manufacturer

Heritage Audio is one of the few premier manufacturers of Neve preamp and compressor clones. With their established team of veteran designers, they claim to offer the most historically accurate clones of the fabled Neve units.

Specifications

ANALOG I/O

  • Microphone input impedance channels 1 & 2: High: 1200 Ohm minimum; Low: 300 Ohm minimum. Higher gain positions gradually have greater impedances, optimum for low gain ribbon mics. Input is transformer balanced and floating.
  • Microphone input impedance channels 3-8: High: 1200 Ohm minimum.
  • Line input impedance: 10 kOhm bridging, transformer balanced and floating.
  • Output impedance: Less than 75 Ohm, transformer balanced and floating, to drive a load of 600 Ohm.
  • D.I. input impedance: Greater than 2 MOhm, unbalanced (Only Channels 1 & 2).
  • Maximum output: Greater than +26.5 dBu into 600 Ohm (internally terminated).
  • THD: Less than 0.025% at 1 kHz, Less than 0.05% at 100 Hz.
  • Frequency response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB).
  • Maximum Gain: Slightly greater than 80 dB.
  • Equivalent Input Noise: Less than -125 dBu.
  • Output stage noise: Less than -100 dBu.



DIGITAL CONNECTIONS


S/PDIF

  • Connector Type: 9 PIN Breakout Cable (RCA).
  • Format: IEC 958
  • Supported Sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192.



AES/EBU

  • Connector Type: 9 PIN Breakout Cable (XLR).
  • Format: IEC 60958.
  • Supported Sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192.



ADAT

  • Connector Type: Optical TOSLINK JIS F05.
  • Format: ADAT Digital Lightpipe with S/MUX.
  • Supported Sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192.
  • Channel Assignments @ 44.1 kHz, 48 kHz: Port 1 = Channels 1 – 8, Port 2 = 1 – 8 (mirrored).
  • Channel Assignments @ 88.2 kHz, 96 kHz: Port 1 = Channels 1 – 4, Port 2 = Channels 5 – 8.
  • Channel Assignments @ 176.4 kHz, 192 kHz: Port 1 = Channels 1 – 2, Port 2 = Channels 3 – 4.



Word Clock

  • Connector Type: BNC.
  • Word Clock Input Termination: 75 Ohms, switchable.



Syncronization Sources

  • 44.1 kHz, 48 kHz, 88.2kHz, 96kHz, 176.4, 192kHz.
  • INTERNAL, EXTERNAL (Word Clock)



Dimensions/Weight

  • Dimensions (W x H x L): 280mm x 88mm (2 Rack units) x 482mm.
  • Weight: 9.450 Kg .
