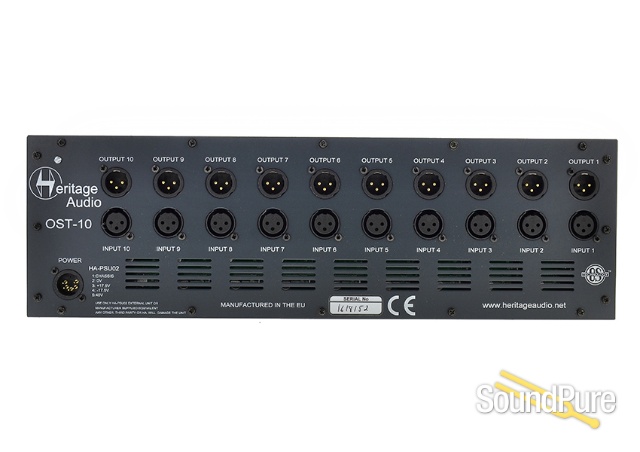

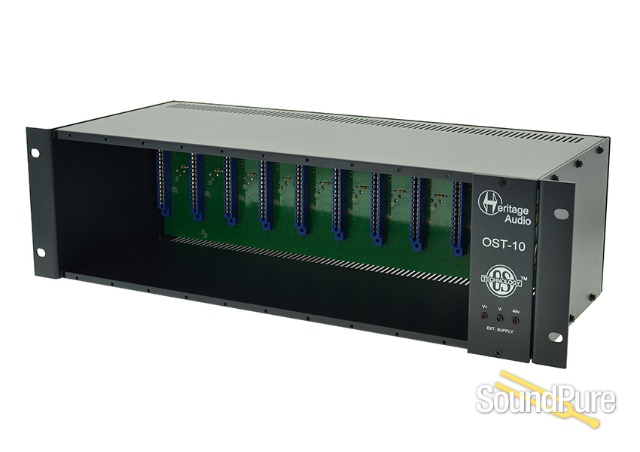

Heritage Audio OST-10 - 10 Slot 500-Series Rack  From Heritage

10 slot 500 series rack with Heritage Audio's "on slot technology" for the most consistent power to your modules

Heritage Audio

Manufacturer's Description from Heritage

“ON SLOT TECHNOLOGY” takes advantage of the latest generation of power electronics to handle power supply on a “per slot” basis. Each slot has its own power supply linear regulation stages; therefore modules are isolated from the rest. They just share the metal enclosure.

With literally hundreds of brands making 500 series modules, we at Heritage Audio think this is the professional way of handling this reliably, eliminating issues often associated with sharing power between different modules of different brands and natures.

Each slot features test LEDs for checking correct power operation (red for +16v, green for -16v), located aside of the slot connector.

Thanks to the use of OST, the power capability of the OST-10 is 400mA per rail per slot maximum, with an overall of 1.6A (1.8A non continuous) per rail, whichever is reached first. Each slot has its own red (+16v) and green (-16v) LEDs for easy testing of the power status.

The RAF Blue Gray enclosure is made out of heavy gauge steel with an aluminum front panel.

Phantom power available is 140mA total.









Heritage Audio

About Manufacturer

Heritage Audio is one of the few premier manufacturers of Neve preamp and compressor clones. With their established team of veteran designers, they claim to offer the most historically accurate clones of the fabled Neve units.

Specifications

• On Slot Technology - up to 10 modules

• Maximum audio rails current: 1.8A per rail, or 400mA per rail per slot, whatever is reached first.

• Maximum phantom power current: 140mA.

• Operating voltage: 100-240 VAC.
