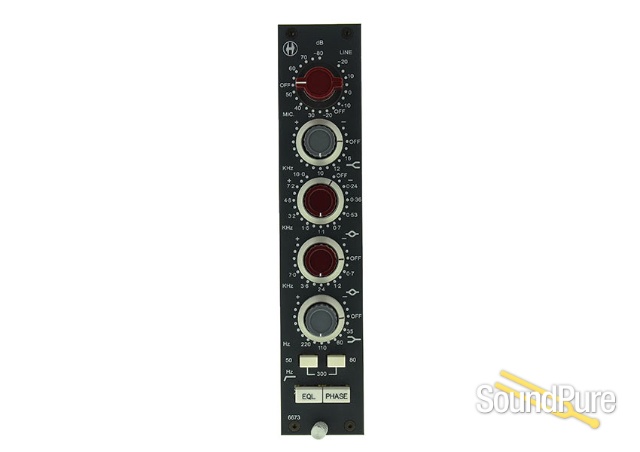

Heritage Audio 6673 80-Series Mic Pre/EQ  From Heritage

80-Series Mic Pre/EQ Module for Use with Vintage 80 Series Mixing Consoles or the Heritage Frame 8 or Rack 2 80 Series Module Enclosures.

Heritage Audio

$2,999.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $68/mo.

Manufacturer's Description from Heritage

The  6673 module is a Heritage Audio's design which has been engineered to fill input module slots in the restoration process of vintage 80 Series sound mixing consoles.



It is also compatible with the Heritage Audio Frame 8 and Rack 2 powered enclosures.



The 6673 is a 4 band equalizer in a 73 sized module, combining the mid band of the vintage 1066 module and an expanded 1073 mid band. This fact allows a more complex equalizing whilst at the same time maintaining the same sonic qualities.



Vintage connoisseurs already know how sweet the 1066 mid band sounds and how well it complements the 73´s one.



Additionally the 6673 features three frequency´s options for the high shelf, as opposed to the fixed ones on both the 73 and 1066, covering both.



Special care has been taken in sourcing the correct components that ensure performance will be as close to a 1070s unit as it is possible nowadays. Custom polystyrene and film tone capacitors have been developed to closely match the Siemens Styroflex and Mullard Mustard types of the late 60s and early 70s. Custom input transformers have also been co designed with Carnhill Transformers´ Oxford factory to our special requirements.



The Heritage Audio 6673 is entirely handmade in our facilities in Spain, employing the same old-fashioned wiring and soldering techniques of the 70s. All its circuitry is held into five plug in cards.



Heritage Audio

About Manufacturer

Heritage Audio is one of the few premier manufacturers of Neve preamp and compressor clones. With their established team of veteran designers, they claim to offer the most historically accurate clones of the fabled Neve units.

Specifications

Microphone input impedance: HI, 1200 Ohm minimum, LO, 300 Ohm minimum. Higher gain positions gradually have greater impedances, optimum for lo gain ribbon mics. Input is transformer balanced and floating.

Line input impedance: 10KOhms bridging, transformer balanced and floating.

Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 Ohms.

Maximum output: Greater than +26dBu into 600 Ohms, THD: Less than 0.025% at 1Khz, Less than 0.05% at 100Hz.

Frequency response: 20Hz (+0.3dB) to 20Khz (-0.2dB).

Maximum Gain: Slightly greater than 80dB.

Noise: Less than -100dBu.

Power consumption: Less than 110 mA @24VDC.
