Harrison D510mx Analog Summing Mixer for 500 Series Rack  From Harrison

Harrison mixer interface module

Harrison Audio

$1,599.99

No Sales Tax in OH!
No Sales Tax in 45 States. Learn More.

Retail:  $1,899.99

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax collected in OH.

Close
Sales Tax
Sales tax is only collected in the following states: CA, FL, NC, SC, TN and VA. If your state is not listed, sales tax will not be collected on your order.
Contact us for up-to-date delivery estimate.
Payments as low as $36/mo.

Manufacturer's Description from Harrison

Build your custom 500 Series analog mixer

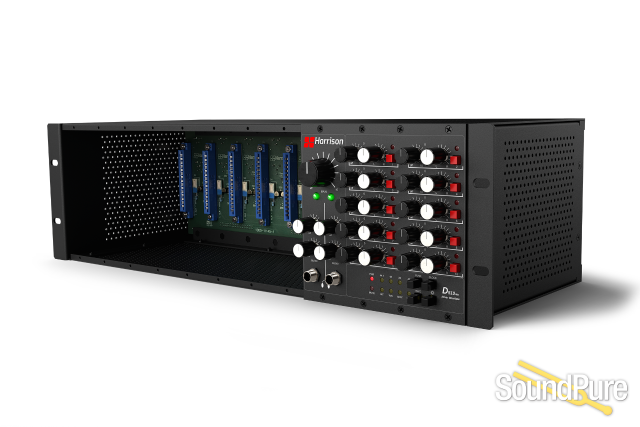

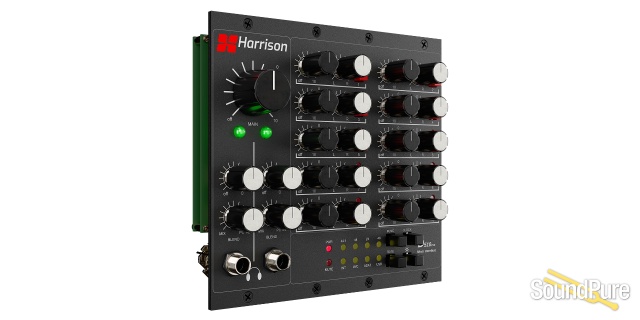

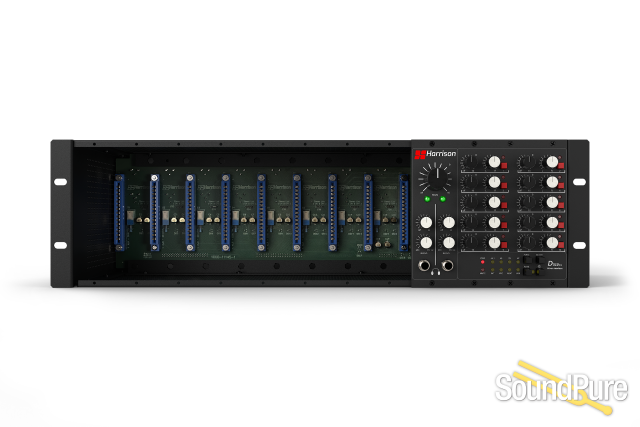

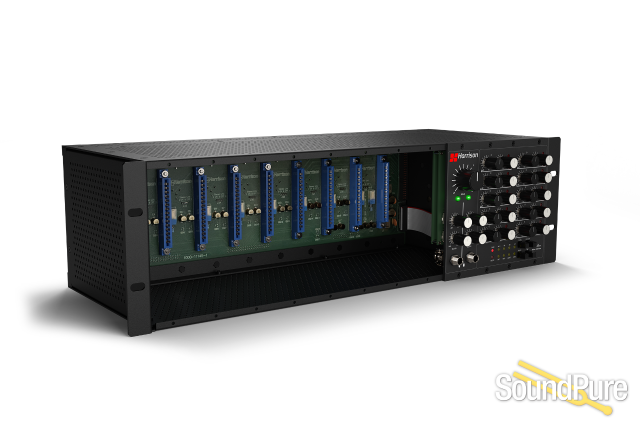

Pair the D510r with the optional D510mx mixer module to transform your system into a powerful 10x2 analog summing mixer. Designed to integrate into two slots of the Harrison D510r 500 Series rack, the D510mx gives you the flexibility to create stereo mixdowns from any of the eight remaining 500 Series module slots, alongside the two analog inputs to slots 9 and 10. With level and pan controls on each channel, plus dual independent headphone outputs with ‘blend,’ get the renowned weight and ‘3D’ depth that Harrison analog summing brings to productions while enhancing your headphone monitoring capabilities.

When used in combination with the D510dante audio interface card, the dual headphone outputs can create monitor mixes from either the direct analog output or from any connected device on the Dante network.



With an almost infinite number of configurations, the Harrison D510 rack paired with the D510mx mixer module can create an extremely powerful (and portable) eight-channel tracking system housed in only 3U – we said it was flexible!

Harrison Audio

About Manufacturer

Harrison has been designing, manufacturing, and marketing audio mixing consoles in Nashville, Tennessee (Music City, USA) since 1975. Our products serve the markets of music recording/mixing, international film and television sound production, audio post-production, broadcast sound, and live sound reinforcement.

Specifications

D510mx Inputs

  • Minimum Gain: <= -81 dB

    • Noise A-Weighted @ Min Gain: < -87 dBu

  • Unity 0 dB

    • THD+N, 1kHz 10 dBu @ Mid Gain: < 0.003%

    • Noise A-Weighted @ No Gain: < -87 dBu

  • Maximum Gain: 11.5 dB

    • THD+N, 1kHz 0dBu @ Max Gain: < 0.003%

    • Noise A-Weighted @ Maximum Gain: < -85 dBu

  • Maximum Input Level: +24 dBu

  • Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB

  • Pan – 3dB Pan Law

D510dante Inputs (when optional D510dane interface is installed)

  • Maximum Input Level: +24 dBu

  • Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB

Main Outputs

  • Maximum Output Level - +24 dBu

  • Minimum Gain: <= -85 dB

    • Noise A-Weighted @ Min Gain: < -97 dBu

  • Unity 0 dB

    • THD+N, 1kHz 10 dBu @ Mid Gain: < 0.003%

    • Noise A-Weighted @ No Gain: < -87 dBu

  • Maximum Gain: 9.5 dB

    • THD+N, 1kHz 10 dBu @ Max Gain: < 0.003%

    • Noise A-Weighted @ Maximum Gain: < -78 dBu

Headphone Outputs

  • Maximum Output Level - +21 dBu

  • Minimum Gain: <= -78 dB

    • Noise A-Weighted @ Min Gain: < -87 dBu

  • Maximum Gain: 0 dB

    • THD+N, 1kHz 20 dBu @ Max Gain: < 0.004%

    • Noise A-Weighted @ Maximum Gain: < -82 dBu

Signal Metering

  • 3x tri-colour LED signal presence

    • Green: >= -14 dBu, + 4 dBu

    • Orange: >= +4 dBu, +18 dBu

    • Red: >= + 18 dBu

Connectors



  • TRS Stereo Headphone Output (2)
