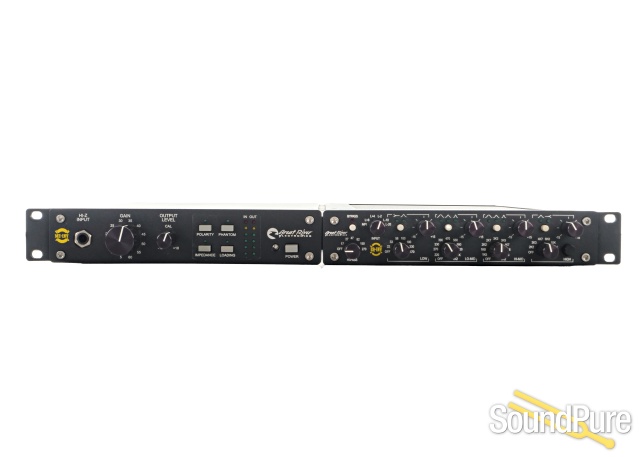

The ME-1NV (single channel mic preamp) greatly modernizes and improves classic British design. This desktop (and rackable) preamp offers the same definitive sonic fidelity and expert craftsmanship as all Great River products, with the ability to fine-tune gain effects like 1970's-era 1073's. Transparency and vintage harmonic structure are both achieved with NV-Series preamps.
The ME-1NV achieves new classic performance status with two discrete Class-A gain stages (the dual gain-stage meters are a Great River exclusive), a front-panel DI input jack which is routed via FET through the input transformer (also unique to Great River preamps) for must-hear-to-believe sound from all Hi-Z instruments, and a discrete high-current Class-A "big iron" transformer-coupled output amplifier. The ME-1NV is a fundamentally important audio tool that brings out the best in every microphone and instrument.
ME-1NV FEATURES:

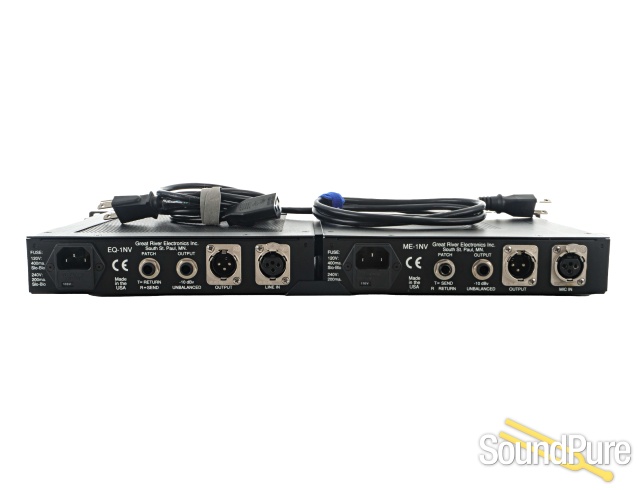

Multiple In/Out connections: XLR balanced; ¼" -10dbV output for 'no-latency' DAW monitoring; high-Z input on front panel (disconnects mic input): TRS ¼" insert patch point for compressor or equalizer ahead of the output amplifier
Adjustable gain stages: input in 5db steps to 60db; output from -25 to +10db; maximum overall gain 70db; 2 to 3 stages of single ended solid state amplifier gain blocks, depending on gain structure; high-current 70ma Class A bias on output stage
Input and output meters on each channel (dual-stage metering is a Great River exclusive)

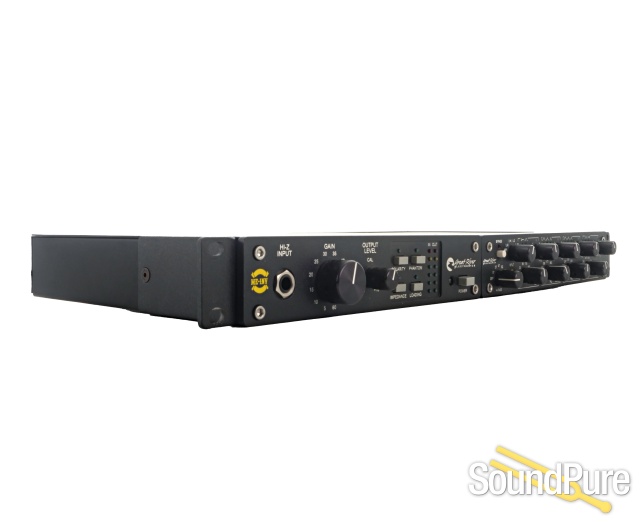

Front panel switches: polarity; phantom power; input impedance (1200 / 300 ohm); output loading (600 ohm resistor across output transformer)
High quality, custom wound Sowter transformers
Gold plated switching contacts
Internal power supply
110 or 220 volt operation with external selection, either 50 or 60 Hz
3 year warranty with registration
Half-rack-space with internal power supply
'Big Iron Vintage Sound' from custom-wound transformers
'No-latency' output monitoring for DAW users
High-Z input is ideal for bass, guitar, and sound modules (FET-buffered and routed into the input transformer, a Great River exclusive)
Gain stage monitoring via dual meters (also a Great River exclusive)
Ultra quiet noise floor for outstanding performance at any gain setting
The EQ-1NV (one channel equalizer) greatly modernizes the classic British “1081/1083”-type design. This “desktop” (and rackable) digitally controlled analog parametric EQ offers similar topology to vintage 1081/1083 models, but with welcome improvements. Newly designed Class-A discrete single-ended amplifiers and true inductor/capacitor (L/C) circuitry add greater clarity and dynamic range to the musicality of the vintage-era models. The EQ-1NV also has a unique discrete high-current Class-A balanced output stage.
To make life in the studio (and on the road) easier, the EQ-1NV has been specifically designed to integrate with the patch loop in Great River NV Series microphone preamplifiers (with a single TRS ¼” cable), for complete flexibility in tracking and mixing. The front panel input selector / sensitivity switch offers the option of using the signal from the EQ-1NV's transformer-coupled line input (ranging from +8dbm to -20dbm), or the patched signal from the NV preamp. When connected via the patch loop, the four EQ sections are inserted between the microphone (or DI) input’s first gain stage (with level control and metering) and the preamplifier’s output gain stage and "big iron" transformer (also with level control and metering). This routing flexibility provides a broad range of sonic/harmonic possibilities and maintains a full Class-A signal path.
“It’s the best EQ I’ve ever used”, said a prominent pro audio magazine editor.
EQ-1NV FEATURES:
- One channel, discrete Class-A design
- Multiple In/Out connections: XLR balanced line in and out; ¼" -10dbV output for 'no-latency' DAW monitoring; TRS ¼” insert patch point for NV Series mic preamp (inserts EQ between NV preamp gain stages)
- Wide range of input sensitivity from +8dbm to -20dbm with selection between line in and insert patch point
- 4 bands independently enabled with +/-15db boost/cut
- Hi and low bands selectable between peaking and shelving
- Hi-mid and low-mid bands each have 3 selectable Q positions
- 3rd order selectable frequency high pass filter
- Hardwire bypass of equalizer section
- Internal low-noise shielded power supply (externally selectable for 110 / 220 volt; 50 / 60 Hz)
- 3 year warranty with registration
