Grace Design m905
Also in this recording Grace Design m905 with D/A Converter
Free Shipping
Free 3-Year Warranty
Watch & listen
From Grace Design

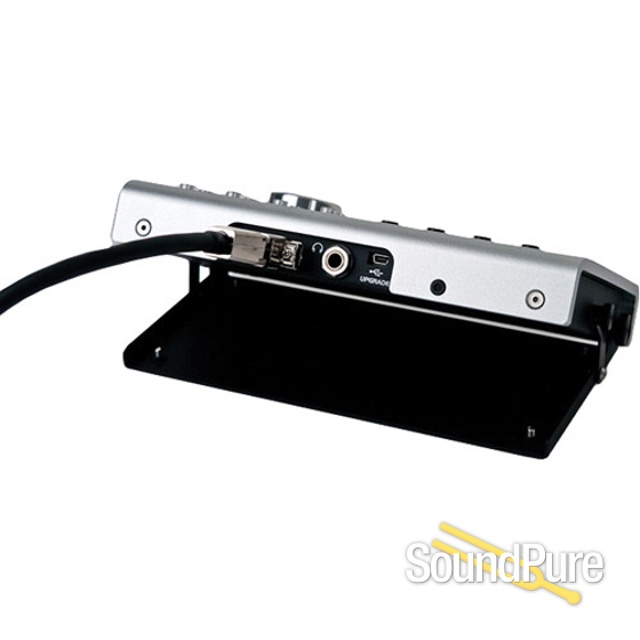

The m905 Analog is now available without the built in DAC. This system is offered for users who already have an investment in DACs, whether stand-alone or built into their interface. System configuration is exactly the same, with all the same great monitoring features, except no digital inputs and an second pair of balanced analog inputs. The m905 Analog brings this world class performance into reach of almost any engineer or recording studio. Also, users can always upgrade their m905 Analog to the Digital version at anytime. NOTE: the analog only version incudes a simplified remote cable that does not carry headphone signal to the RCU. To enable the headphone output on the RCU, ask your dealer to upgrade to the premium remote cable.
ANALOG I/O
THD+N at Maximum Volume, 1kHz, 22Hz-22kHz BW
+20dBu out<0.0008%
+10dBu out<0.0008%
0dBu out<0.002%
- Intermodulation Distortion SMTPE/DIN 4
- 1 50Hz, 7kHz
@+20dBu out<0.002%
@ 0dBu out<0.0015%
- Frequency Response
- Balanced Inputs +/-3dB3Hz to 1.25MHz
Unbalanced Input +/-3dB3Hz to 275kHz
- Dynamic Range
- 20-22kHz bandwidth118dB
20-22kHz bandwidth and A weighting filter121dB
- Output Noise
- 20-22kHz bandwidth, at -20dB gain-99dBu
20-22kHz bandwidth and A weighting filter, at -20dB Gain-102dBu
- Phase Deviation
- 20Hz to 20kHz<10 degrees
10Hz to 100kHz< 19 degrees
- Crosstalk any channel
- 100Hz<104dB
1kHz<100dB
20kHz<79dB
- Balanced Input CMRR
- 60Hz>90dB
1kHz>85dB
10kHz>70dB
Gain Range-104dB to +13dB
- Channel Tracking Accuracy
- Any channel+/-0.1dB
Maximum Output Level+26dBu
- Maximum Input Level
- Balanced inputs+29dBu
Unbalanced inputs+21dBu
- Impedances
- Balanced inputs88k Ohms
Unbalanced inputs53k Ohms
Balanced outputs300 Ohms
Minimum load impedance300 Ohms
External Talkback Mic Preamp Gain+7dB to +70dB in 1dB steps
POWER SUPPLY / GENERAL
Power consumption60W
Input Voltage 50-60Hz100VAC – 240VAC
- Dimensions
- Main chassis IEC 2U3.5" x 10.5" x 17"
Remote control unit8.9" x 5.1" x 2.2"
- Weight
- Main chassis7.8lbs
Remote control unit2.2lbs
