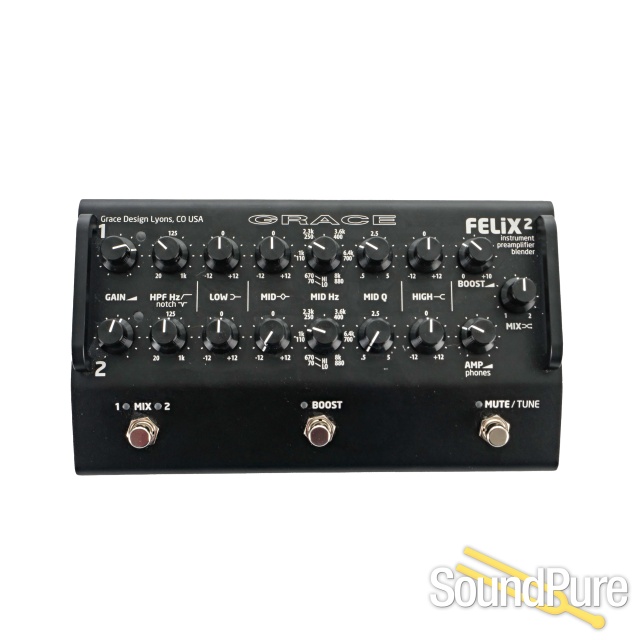

Grace Design FELiX2 Instrument Preamplifier (Black) - Used  From Grace

FELiX2 NEW FEATURES INCLUDE:

STEREO OPERATION

New dual mono or true stereo FX loop allows for independent FX loops on either channel or stereo FX operation with mono or stereo in

Stereo amp output for connecting to stereo stage amp rig

Stereo headphone output for stereo headphone personal monitoring bliss

VARIABLE PHASE CONTROL

Built in variable phase control on channel 2 allows users to adjust mic / pickup blending systems to be perfectly phase coherent

MORE EQ POWER

HIGH shelving EQ control updated to include 2 transition frequency settings at 1k and 2k, allowing for more flexible high frequency tone control

New notch filter uses a much higher Q setting for better surgical control of problem frequencies

NEW POWER SUPPLY

Class II power supply eliminates ground loops when connecting to stage amps and other non-isolated stage equipment

NOTE: this is now a 2 prong power input

BETTER STAGE MANNERS

New protective side rails and slightly lower profile knobs to help protect controls from extra left feet and floppy stray instrument cables

CHANNEL 1 BOOST DEFEAT

Allows the boost circuit to only affect channel 2

FELiX2 is a studio quality, 2 channel blending acoustic instrument and mic preamp, designed for working musicians, engineers, sound companies or venues looking for the highest quality solution for amplifying stringed instruments. FELiX2 is built into a roadworthy floor unit chassis of anodized aluminum and steel, portable enough to leave the rack at home but bring studio quality to the stage. With the same stunning audio performance and legendary reliability as Grace Design’s pro audio range, FELiX2 brings open, musical and nuanced preamplification to any performance situation.

A powerful eq section allows simple and intuitive tone shaping for even the most unruly of instruments. Each channel’s variable high pass filter cuts 12dB per octave from 20Hz to 1kHz, and can also be set as a notch filter for chasing down problem feedback or rumble areas. Parametric mid range controls cover from 70Hz all the way to 8KHz. While fixed low and high controls are carefully voiced for musical shading of bass and treble.

Features

 ♦ Open, musical and detailed instrument and mic preamplification for discerning artists and engineers

 ♦ 2 channel audio path with blend output control

 ♦ m101 style transimpedance microphone preamplifier, no electrolytic capacitors in the signal path

 ♦ Variable Phase control on channel to for fine tuning phase between a microphone and pickup

 ♦ Ultra precision 0.5% thin film resistors are used in the signal path

 ♦ Careful power supply design and grounding yield an ultra-quiet signal path and professional level headroom and line driving ability

 ♦ Fully ground isolated DI outputs with high quality, low distortion, fully shielded transformers

 ♦ Super rugged 1/4” connectors with heavy duty metal bushings

 ♦ New side rails to protect control from inadvertent changes via cables or feet

 ♦ Powerful, independent EQ on both channels – hi and low shelving and full parametric midrange

 ♦ Mid frequency control has two ranges 70-880Hz / 670 – 8kHz

 ♦ 20Hz-1kHz sweepable HPF on both channels, can also be set as notch filter

 ♦ A / B footswitch for multiple instrument configurations or soloing different pickups

 ♦ Mute/ tune footswitch mutes all outputs except dedicated tuner out

 ♦ Boost footswitch for variable 10dB level boost (global)

 ♦ DI outputs sources are configurable – Ch1 (mix or Ch1) Ch2 (mix or Ch2)

 ♦ Dedicated level controlled stereo stage amp output (configurable as blend or Ch2)

 ♦ Dedicated tuner out, remains hot when unit is muted

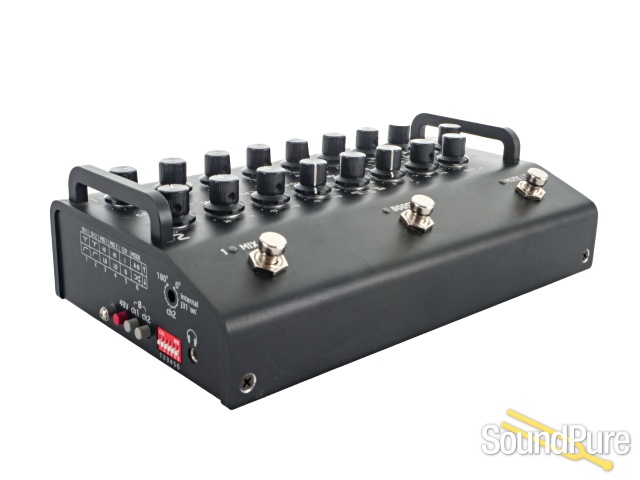

 ♦ Side panel switches for 48V, phase, mid Hz range select, HPF/notch select, 12V and A/B mode select

 ♦ 12V mic input power available on Ch2

 ♦ Phase reverse switch for each channel

 ♦ 3 input impedance settings on each channel – Ch1 10K, 1MEG, 10MEG / Ch2 332K, 1MEG, 20MEG accommodating a wide range of pickup types

 ♦ Mic stand flange mount screw holes holes for putting FELiX on a mic stand

 ♦ 1/8” stereo headphone jack, active when FELiX is muted

 ♦ Stereo FX loop or independent dual mono FX loops

 ♦ NEW CLASS II Universal 100-240 AC power supply with standard IEC cable

 ♦ Full 5 year transferable warranty / built for long, happy life on the road

 ♦ Designed and built by family and friends in Lyons, CO, USA
