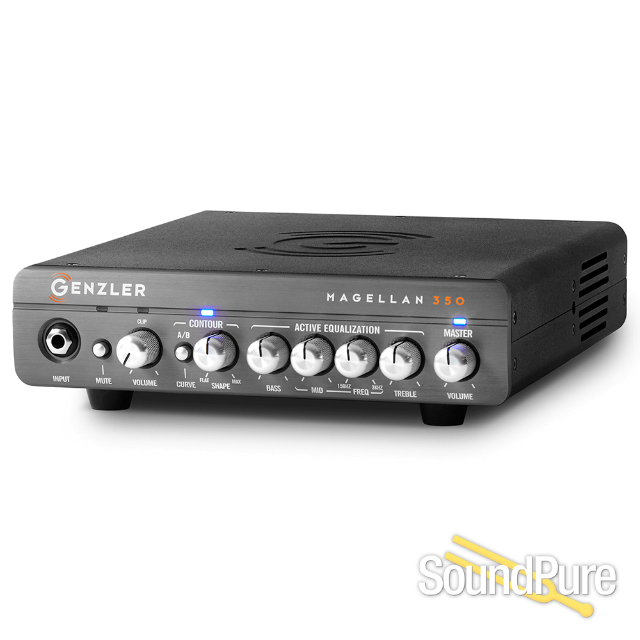

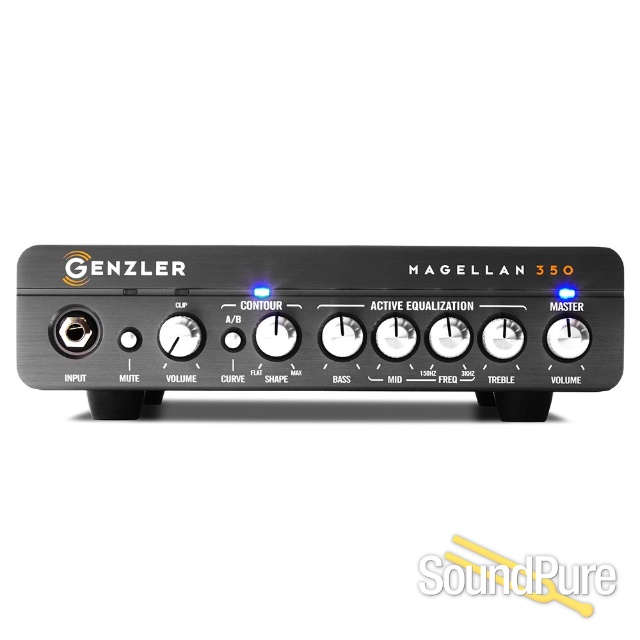

PREAMP – all solid state analog design with integrated soft clip circuitry.

INPUT– 1Meg ohm input impedance

CHANNEL OVERVIEW – Voiced to provide natural, pristine, transparent reproduction of the bass instrument.  The circuitry consists of an FET feedback type variable gain circuit that provides wide range, continuously variable gain for use with a wide range of instrument pick-ups and preamps.

CONTOUR — continuously variable control of 2 vastly different response curves. In either CURVE position, when the SHAPE control is all the way off (CCW) the response curve is completely FLAT.

Curve A (Blue) — a variable pre-shaped curve that boosts lows and highs while simultaneously cutting mids.  The slopes are fairly gentle which keep the tone shaping very musical.  This curve covers a wide range of sounds from flat to classic to modern depending on the position of the SHAPE control.

Curve B (Amber) — a variable pre-shaped curve with attenuated high mids and highs, a low mid bump, and a slight roll-off of the lowest bass frequencies. Again, the slopes are fairly gentle which keep the tone shaping very musical. This curve is intended to provide sounds in the range of vintage amps and vintage cabinets that do not have tweeters.

ACTIVE EQUALIZATION – The MAGELLAN® 350 contains an active 3 band equalizer with a sweepable parametric mid-range frequency control.

Bass   +/- 15dB boost/cut shelving curve with a corner frequency of 75Hz

Mid      +/- 15dB boost/cut of the variable mid frequency selected

Freq     Variable mid frequency from 150Hz-3kHz

Treble   +/- 15dB boost/cut shelving curve with a corner frequency of 6kHz

POWER AMP – The MAGELLAN® 350 uses a state of the art, class D power amplifier design and a high frequency auto-sensing universal switch-mode power supply (SMPS) to achieve unprecedented high performance and lightweight packaging. There are no Voltage Switches to change or jumpers to move. This SMPS senses the line voltage from 100-240 Volts and automatically configures itself.

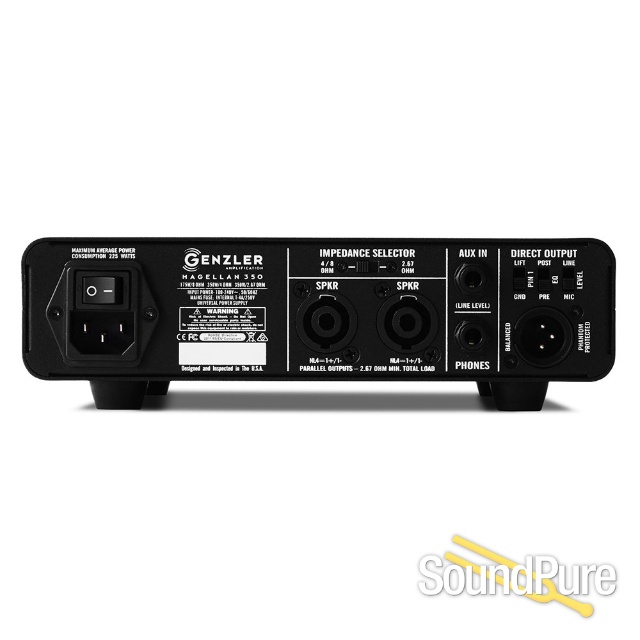

REAR PANEL

XLR Direct Output –

Mic / Line Switch

Pre / Post EQ Switch

Ground Lift Switch

Aux Input

Head Phones

Dual Speakon® Speaker Outputs

Impedance Selector Switch for 8, 4 or 2.67 ohm operation

SPECIFICATIONS:

Power Output: 175W/8 Ohms, 350W/4 Ohms and 350W/2.67 Ohms

Minimum Speaker Load: 2.67 Ohms

Operating Power condition: 100 – 240V, 50/60 Hz

Dimensions: 2.63”H X 9”W X 9.83”D (67mm H x 228.6mm W x 249.8mm D)

Weight: 3.5 LBS ( 1.75 Kg)
