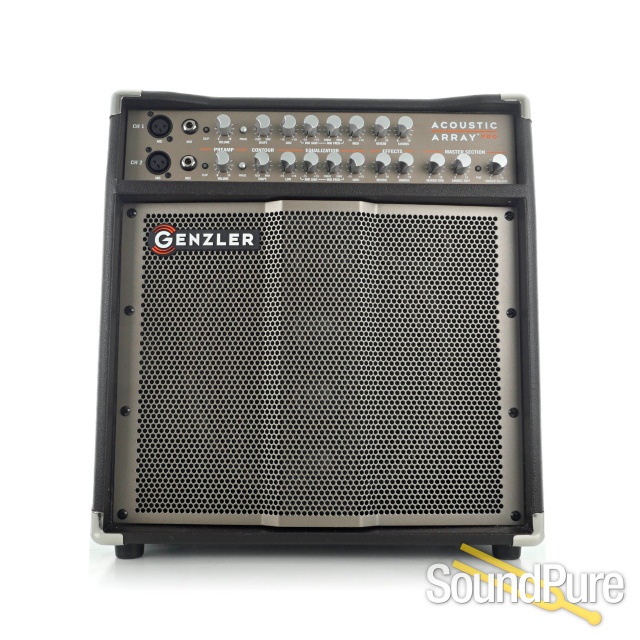

Genzler Acoustic Array Pro Combo Amplifier  From Genzler

Two Identical Preamp Channels w/Mic and Instrument Inputs

Phantom Power for Condenser Mics

Signal Phase Reverse Switch

Unique Contour Circuit for Quick Tonal Adjustments

Active EQ w/Sweepable Mids

Adjustable Digital Reverb and Chorus on Each Channel

Innovative Acoustic Array™ Speaker System Design

10” Woofer w/4 x 2.5” Cone-driver Line Array

Slanted Cabinet Design for Improved Projection

Ultra-lightweight 27 lb Compact Cabinet Design

Power Output: 150 W (combo);  300 W with Extension Cab

3 XLR Direct Outputs

Effects Loop

Auxiliary Input

Bottom-mounted Stand Adaptor

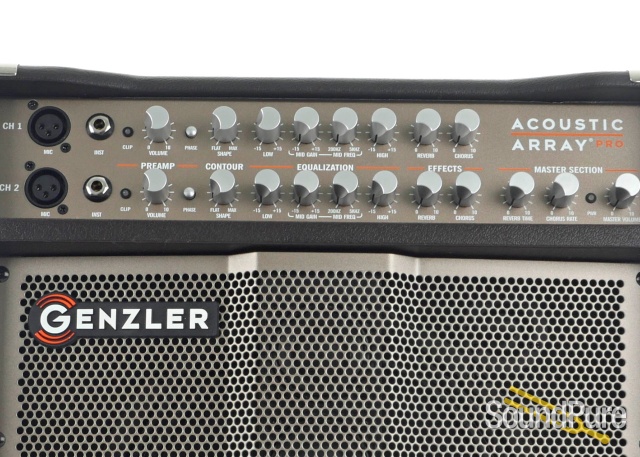

PREAMP –— Identical dual channels with Mic and Instrument inputs on each.

INPUT — 5Meg ohm input impedance.

CHANNEL VOLUME  – Voiced to provide natural, pristine, transparent reproduction of the instrument.

INPUT PHASE SWITCH – reverses the polarity of the instrument input to help control potential feedback.

CONTOUR — continuously variable control of a pre-shaped curve that boosts lows and highs while simultaneously cutting Mids.  The slope is fairly gentle which keeps the tone shaping very musical.  This curve covers a wide range of EQ and offers a quick and simple starting point for EQ adjustments.

ACTIVE EQUALIZATION – The AA-PRO contains an active 3 band equalizer with a sweepable parametric mid-range frequency control.

Bass    +/- 15dB boost/cut shelving curve with a corner frequency of 75Hz

Mid     +/- 15dB boost/cut of the variable mid frequency selected

Freq.     Variable mid frequency from 200Hz- 5kHz

Treble +/- 15dB boost/cut shelving curve with a corner frequency of 7.5kHz

Digital Effect — Each channel has its own set of REVERB and CHORUS level controls that provide the user with the most flexibility in having either or both effects on each channel. The parameters of each effect are variable at the Master Section with the Reverb Time and Chorus Rate controls.

POWER AMP — The Acoustic Array™ PRO uses a state of the art, Class D power amplifier design and a high frequency auto-sensing universal switch-mode power supply (SMPS) to achieve unprecedented high performance in a lightweight package.  For global use, there are no Voltage Switches to change or jumpers to move.  This SMPS senses the line voltage from 100-240 Volts and automatically configures itself.

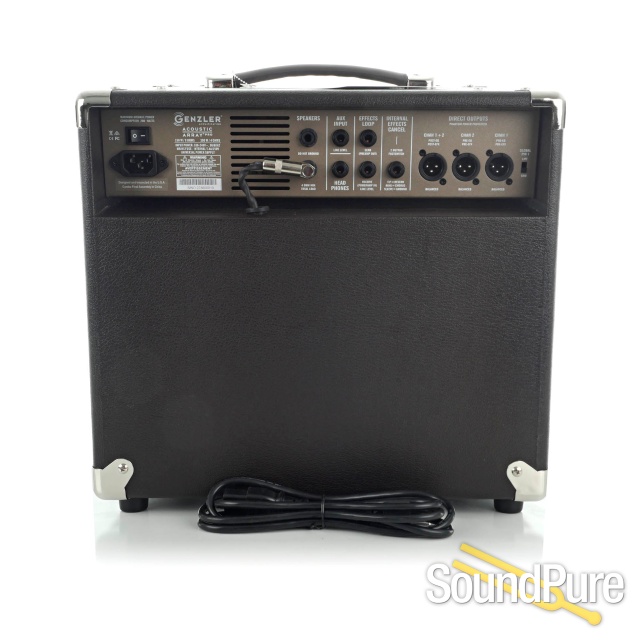

REAR PANEL

XLR Direct Output – 3 Outputs

Channel 1 – Pre-EQ

Channel 2 – Pre-EQ

Global —— Post EQ

Ground Lift Switch

Effects Loop

Aux Input

Head Phones

Foot Switch – EFFECTS CANCEL (Foot switch not included)

Dual 1/4” Outputs

SPECIFICATIONS:

Power Output: 150 Watts / 8 ohms;  300 Watts / 4 ohms (with extension cabinet)

Operating Power condition: 100 – 240V, 50/60 Hz

Dimensions: 16.75”H X 15.75”W  X 13.75”D  (42.54cm H x  40.0cm W x 34.92cm D)

Weight: 27 LBS  (12.24 Kg)

SHIPPING DATA:

Dimensions: 19.5”L x 17.5”D x 22”H  (49.53 cm L x 44.45 cm D x 55.88 cm H)

Weight: 34 LBS  (15.42 Kg)
